Crush Cut Knives

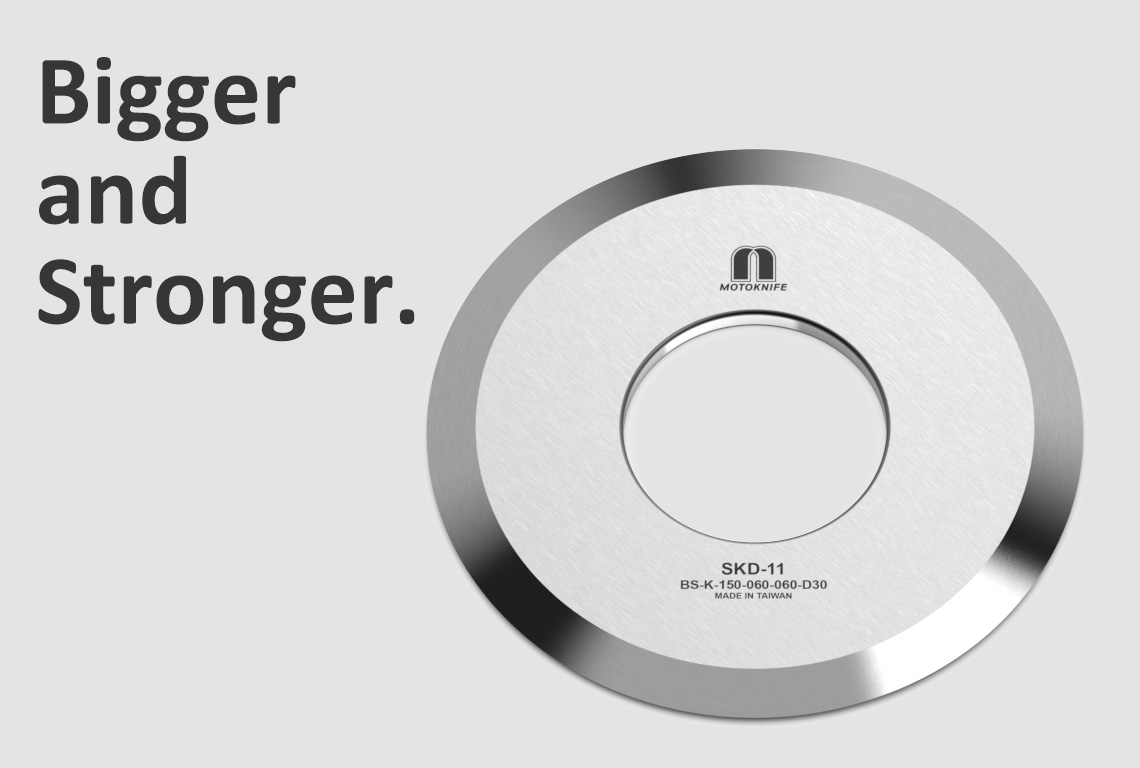

150mm Score knife
Introduce
Introduce Slitting score knives is most commonly used for different crush cut applications such as paper, plastic film, rubber, cloth, and other thin films, etc. SKD-11 material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.
Model BS-K-150-060-060-D30
Blade O.D. 150mm
Blade I.D. 60mm
Thickness 6mm
Material Description The steel SKD-11 grades are GB Cr12Mo1V in China , JIS SKD11 in Japan,
AISI D2 in USA, DIN 1.2379 in Germany.
SKD-11 tool steel has excellent toughness and cutting properties, can meet a
wide range of application requirements and is suitable for making various types of inserts.
Chemical composition (C)% : 1.4~1.6
(Si)% :<0.4
(Mn) % : ≤0.6
(S)% :0.15~0.35
(Cr)% : 11~13
(Mo)% : 0.8~1.2
(V)% : 0.2~0.5
Drawing
尺寸圖.png)
