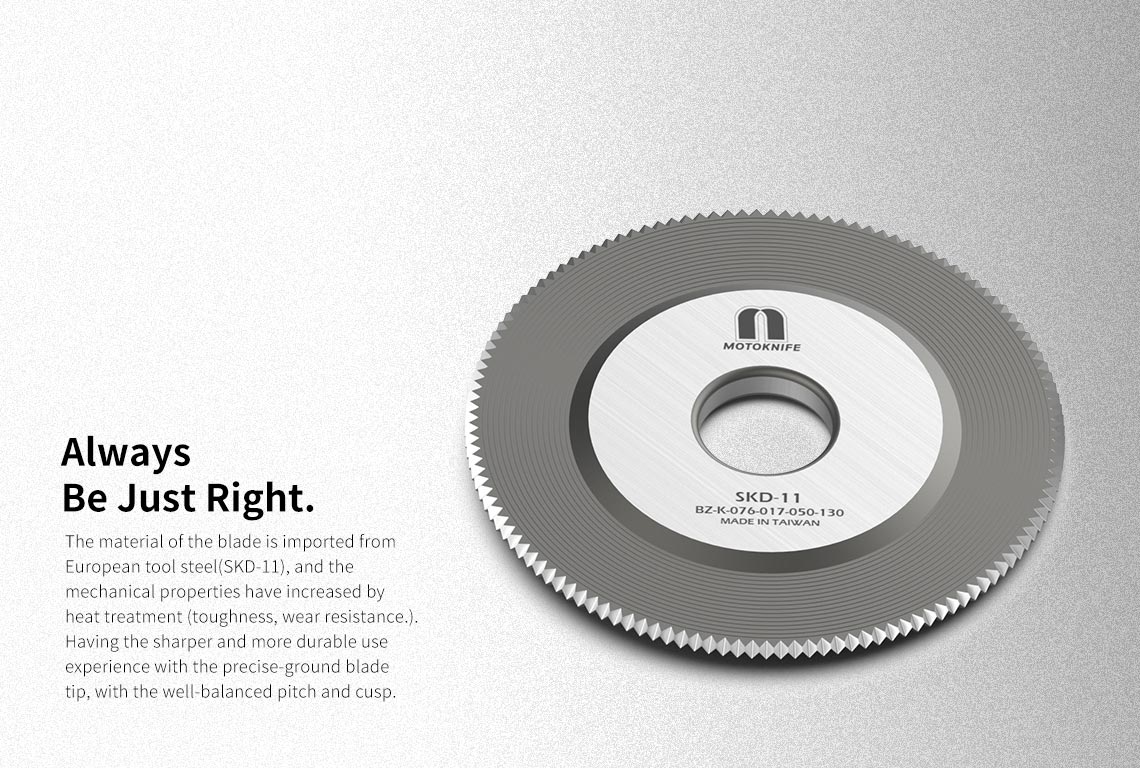

The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.

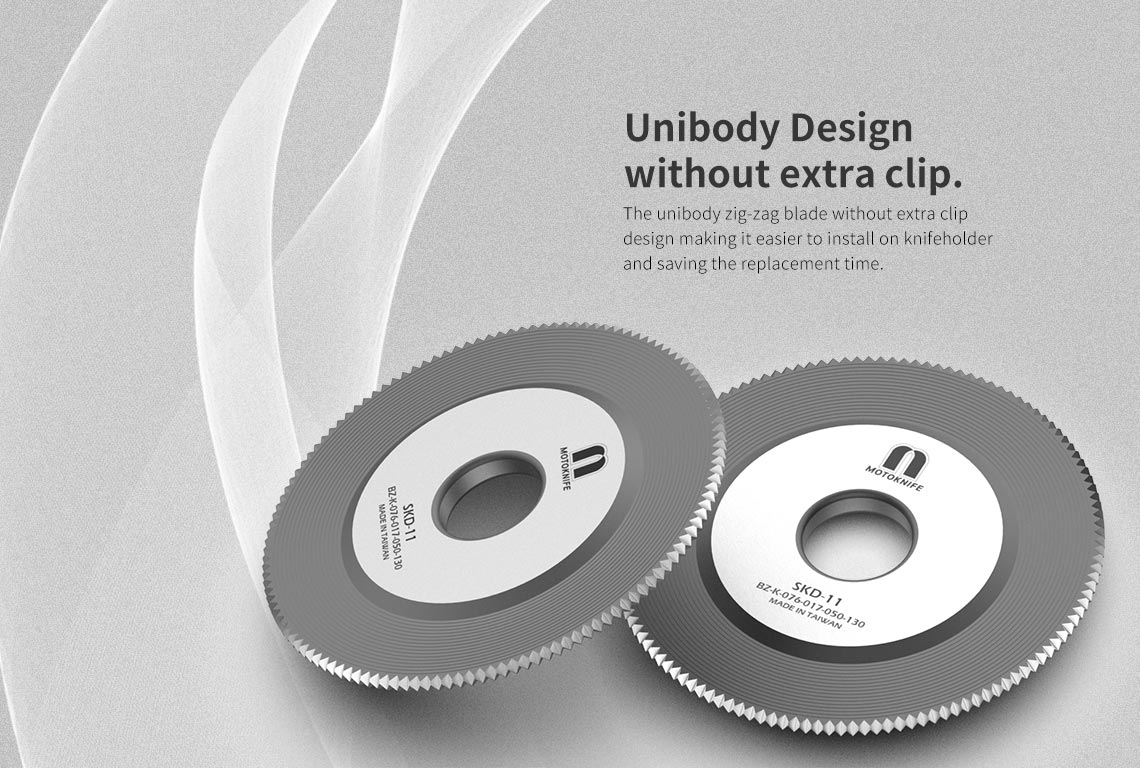

Unibody Zigzag knife
Blade O.D. 76 ±0.2mm
Blade I.D. 17mm
Blade thickness 5mm
Material Description The steel SKD-11 grades are GB Cr12Mo1V in China , JIS SKD11 in Japan,
AISI D2 in USA, DIN 1.2379 in Germany.
SKD-11 tool steel has excellent toughness and cutting properties, can meet a
wide range of application requirements and is suitable for making various types of inserts.
Chemical composition (C)% : 1.4~1.6
(Mn) % : ≤0.6
(Cr)% : 11~13
(Mo)% : 0.8~1.2
(V)% : 0.2~0.5

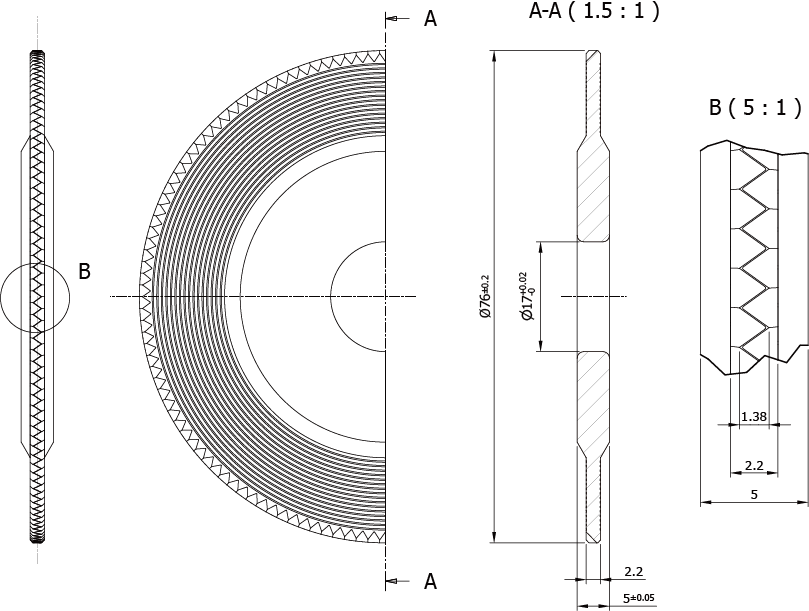

Zigzag knife drawing
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
Air tube and connector set is installed on the knifeholder and used for air supply. The standard length of air tube is 350mmL, and the length can be customized by customers.
