Crush Cut Knives

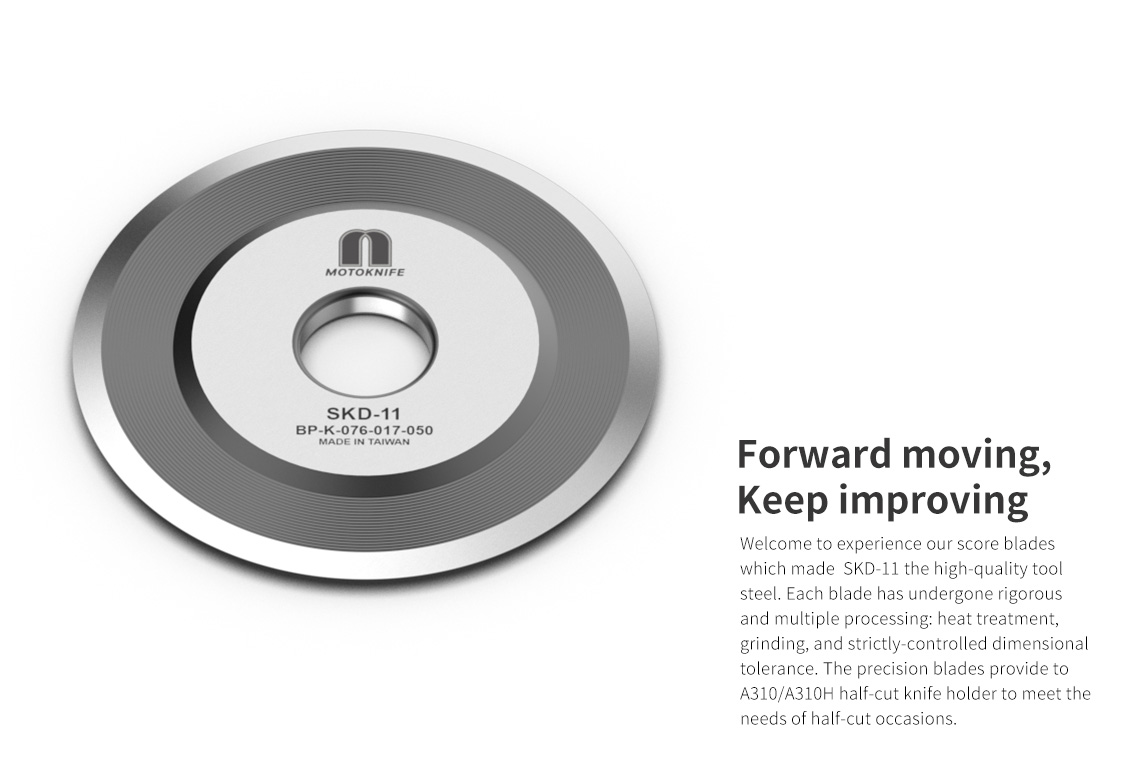

Precision blade
Introduce

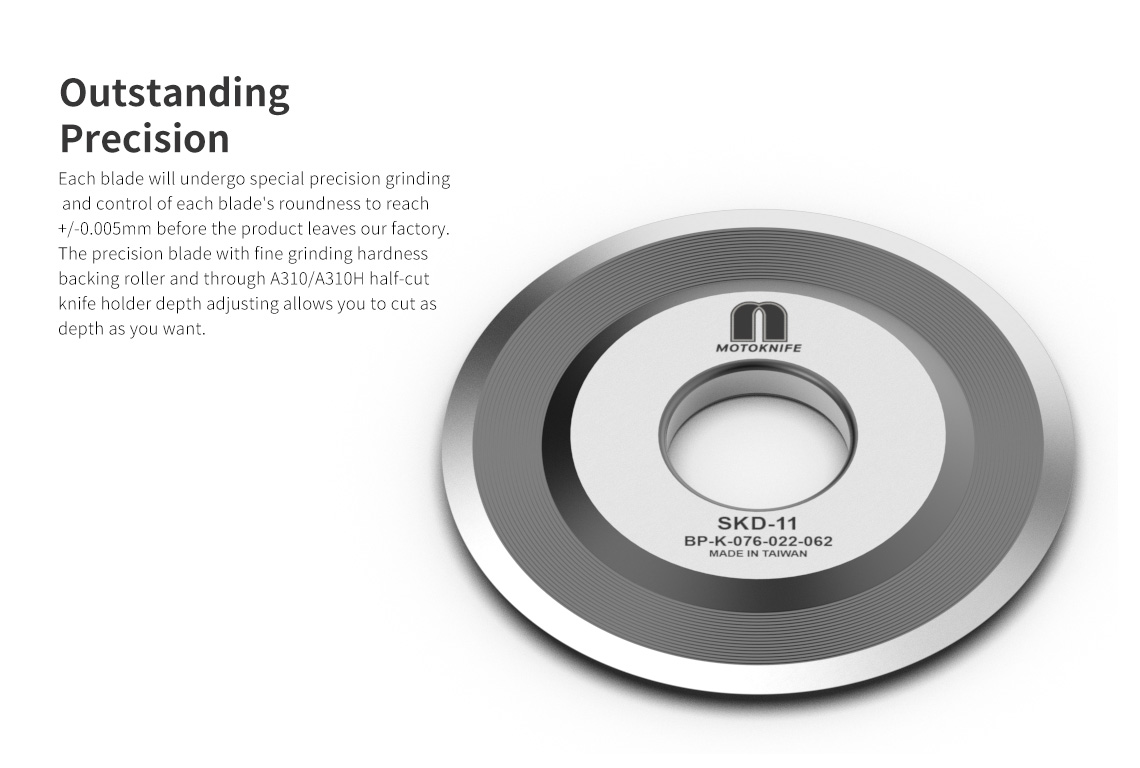

Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
Product no. BP-K-076-017-050 BP-K-076-022-062
Blade O.D. 76.2 ±0.005mm
Blade I.D. 17mm / 22mm
Thickness 5mm /6.2mm
Material Description The steel SKD-11 grades are GB Cr12Mo1V in China , JIS SKD11 in Japan,
AISI D2 in USA, DIN 1.2379 in Germany.
SKD-11 tool steel has excellent toughness and cutting properties, can meet a
wide range of application requirements and is suitable for making various types of inserts.
Chemical composition (C)% : 1.4~1.6
(Si)% :<0.4
(Mn) % : ≤0.6
(S)% :0.15~0.35
(Cr)% : 11~13
(Mo)% : 0.8~1.2
(V)% : 0.2~0.5

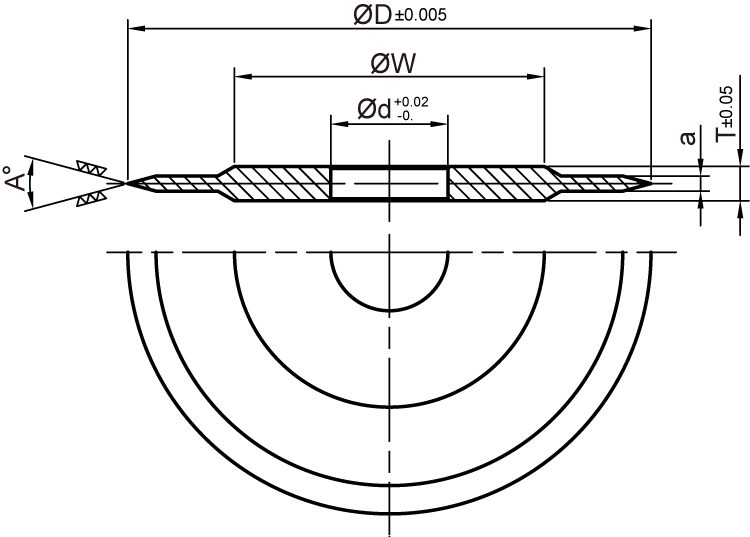

Drawing
Unit: mm
| Product no. | BP-K-076-017-050-D30 | BP-K-076-022-062-D30 |
|
d |
17 | 22 |
|
T |
5.0 | 6.2 |
|
A |
30° | |
|
D |
76.2 | |
| W | 50 | |
| a | 2.2 | |
| Knifeholder | MT-A310 | MT-A310H |
