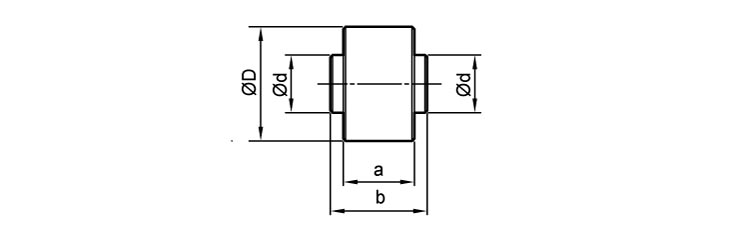

Drawing
|

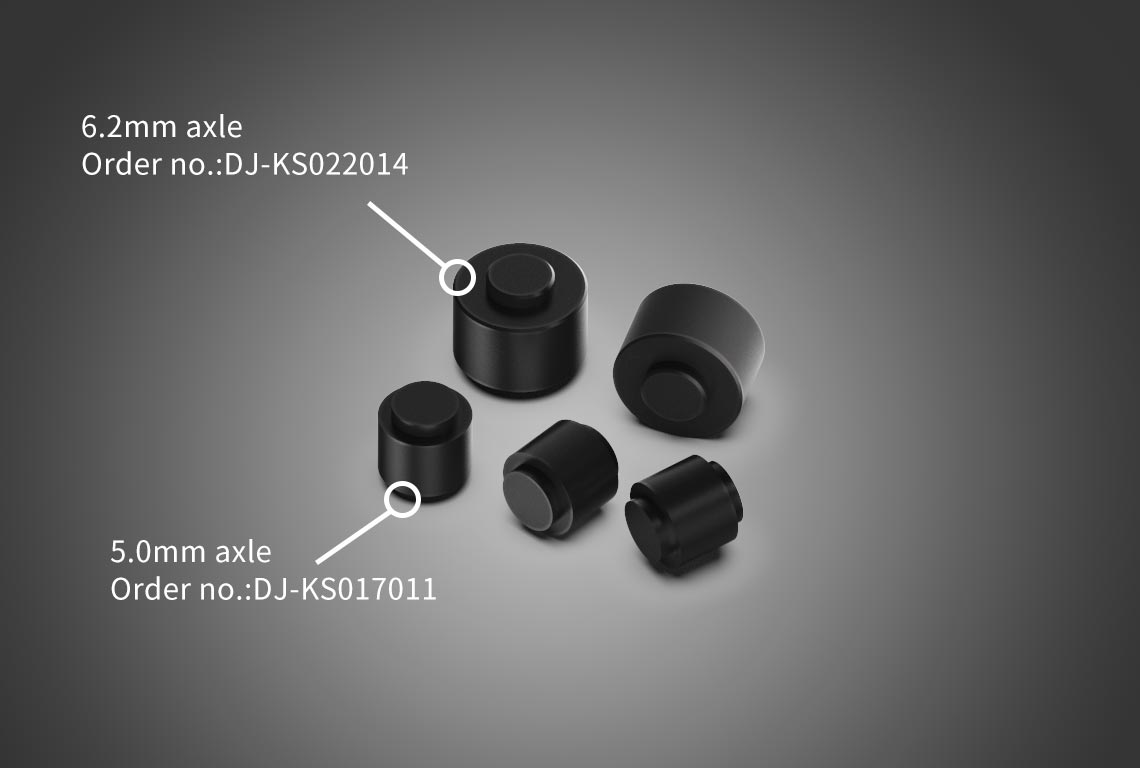

Order no. |
DJ-KS017011 |
DJ-KS022014 |
|
D |
7 |
10 |
|
d |
5.05 |
5.05 |
|
a |
5 |
6.23 |
|
b |
7.2 |
8.46 |
| Knife-holder | MT-A110/A130/A160/A310 | MT-A140/A170/A310H |
