Easy Clamp Pneumatic Knifeholder

Easy Clamp Pneumatic Knifeholder

MT-C121

Introduce

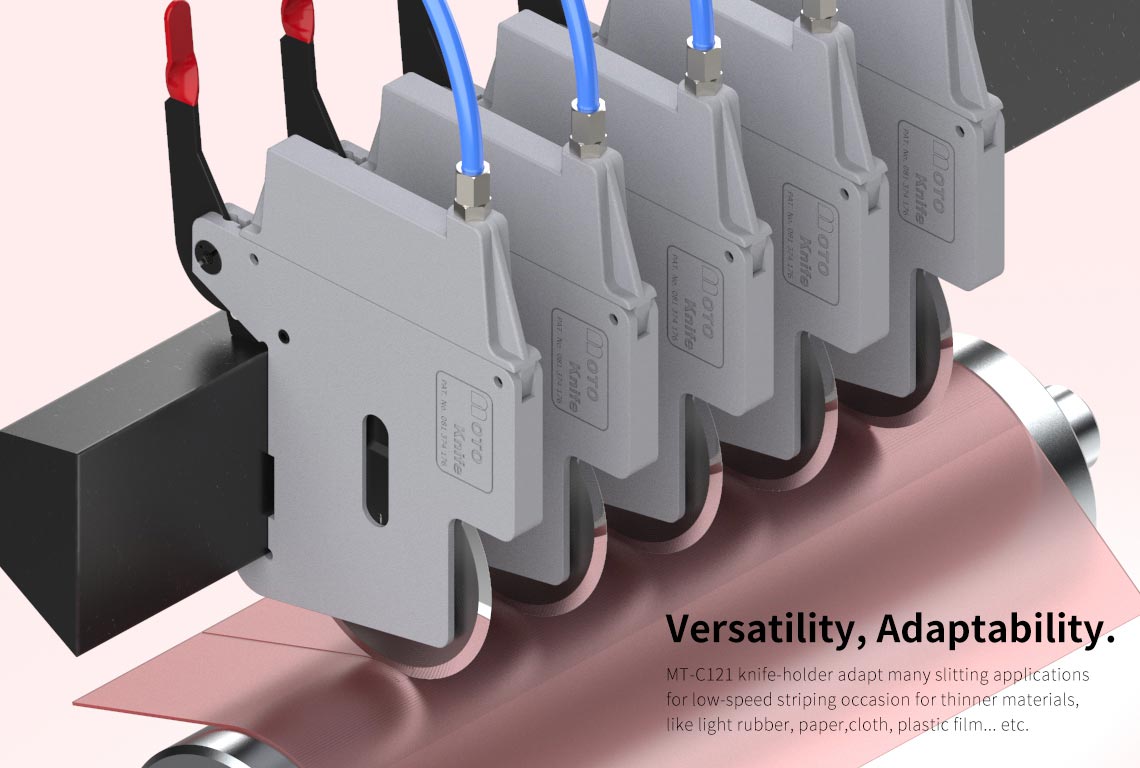

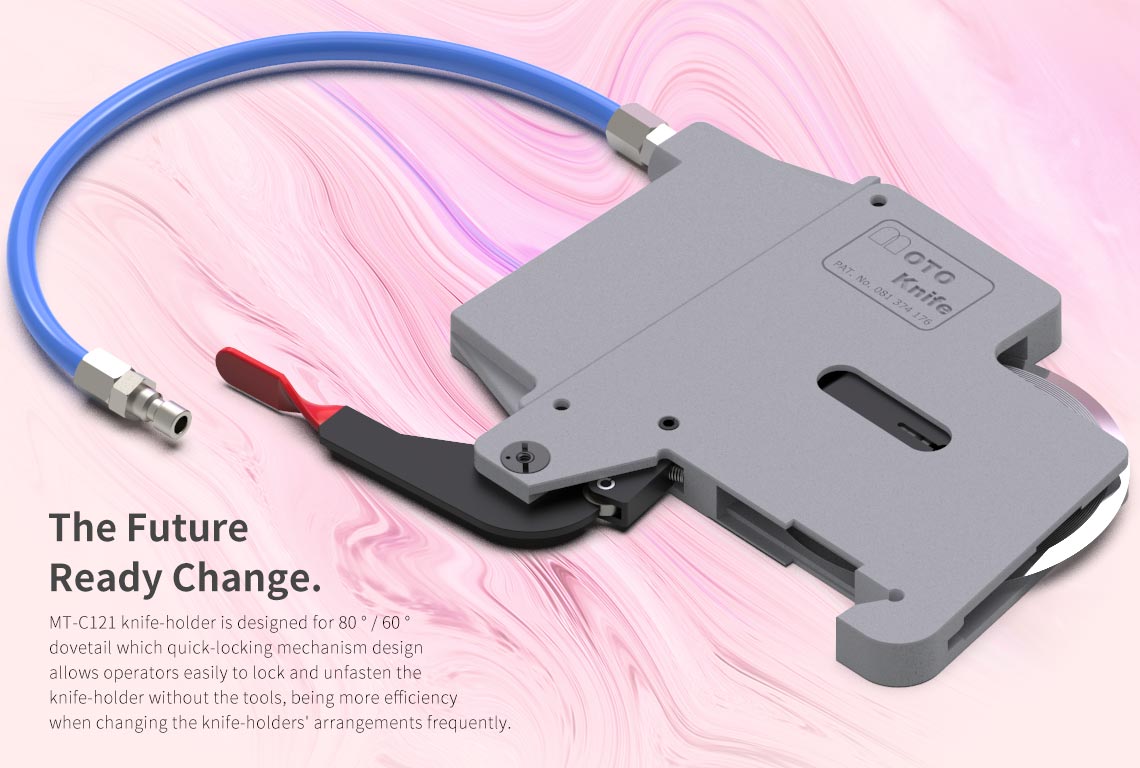

MT-C121 Easy clamp-type knife-holder is designed for 80 ° / 60 ° dovetail which has a quick locking mechanism design for time-saving in its class. With its easy clamp, it tools free for locking knife-holder on guide-bar only via clamp handle and also can prevent over-tightening screw to damage knife-holder. Optionally teeth ruler with our guide-bar which makes arrange position easily and boost your productivity. MT-C121 is engineered for easy operation and time-saving, it allows adapt many slitting applications like light rubber, paper, cloth, plastic film... etc..

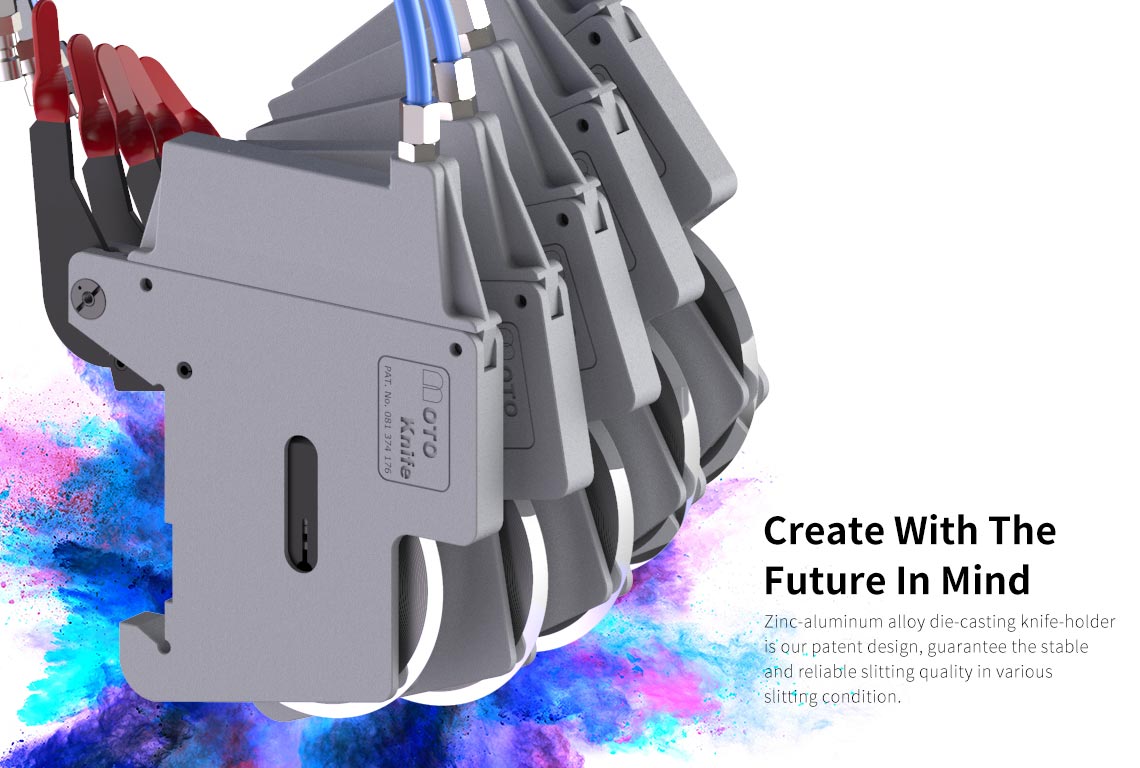

MT-C121 Easy Clamp type pneumatic score knife holder



MT-C121 Easy Clamp type pneumatic score knife holder



MT-C121 Easy Clamp type pneumatic score knife holder



MT-C121 Easy Clamp type pneumatic score knife holder



MT-C121 Easy Clamp type pneumatic score knife holder



MT-C121 Easy Clamp type pneumatic score knife holder

Model                     MT-C121-BSK30

                             MT-B110 easy clamp type pneumatic knife holder


Min. slit width            12mm


Max. slit speed          100M/min(1)


Down-stroke              0~15mm

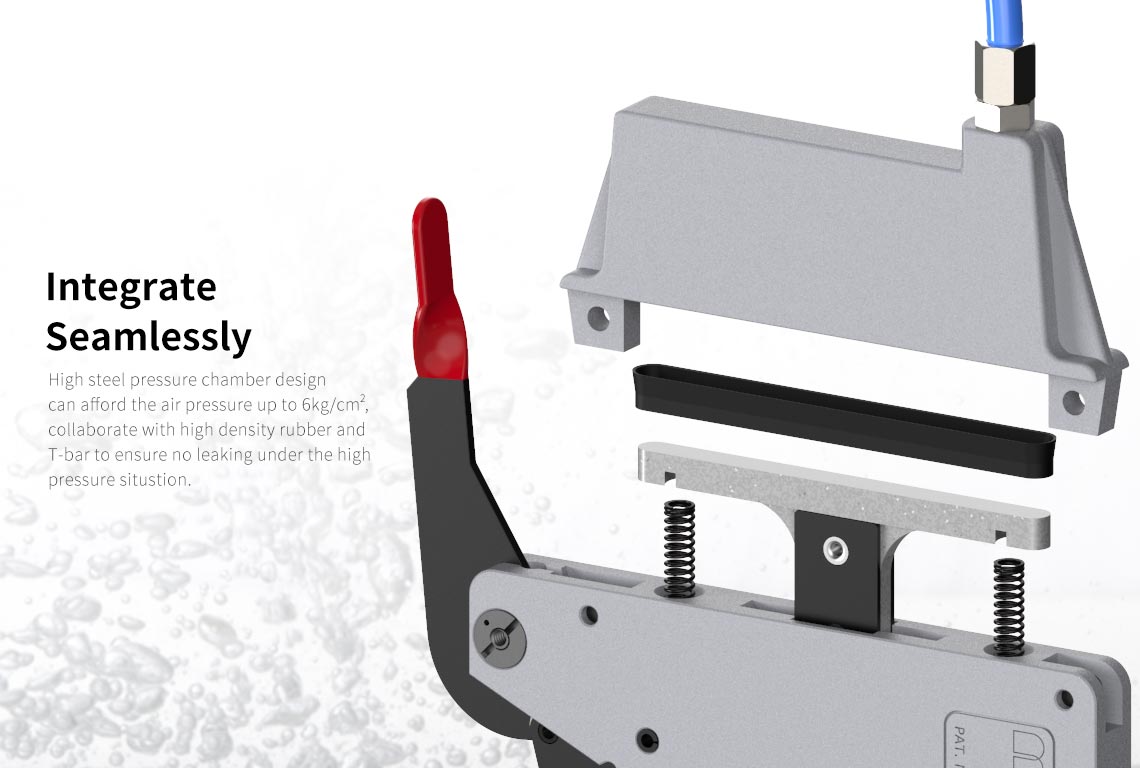

Air Pressure               3~6/kg/cm²

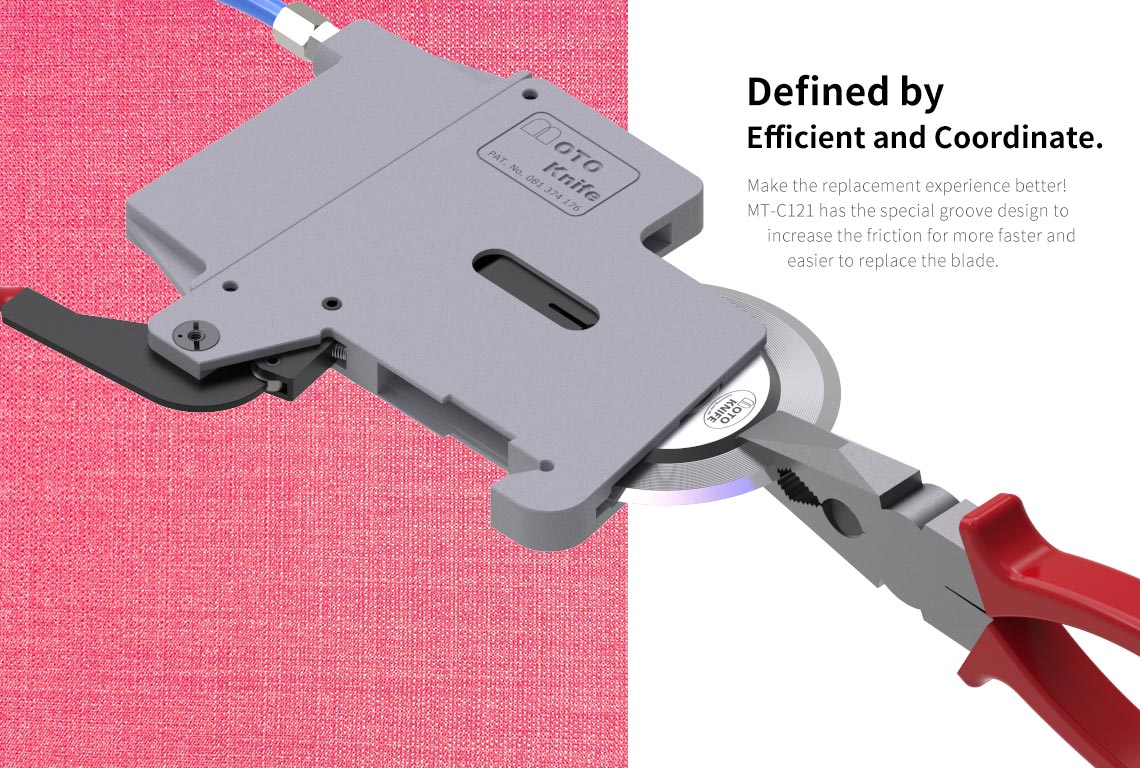

Blade O.D.                   Ø76.2mm


Guide-bar angle       80/60 degree


Feature                          Unibody knife-holder

                                            Cost-effective

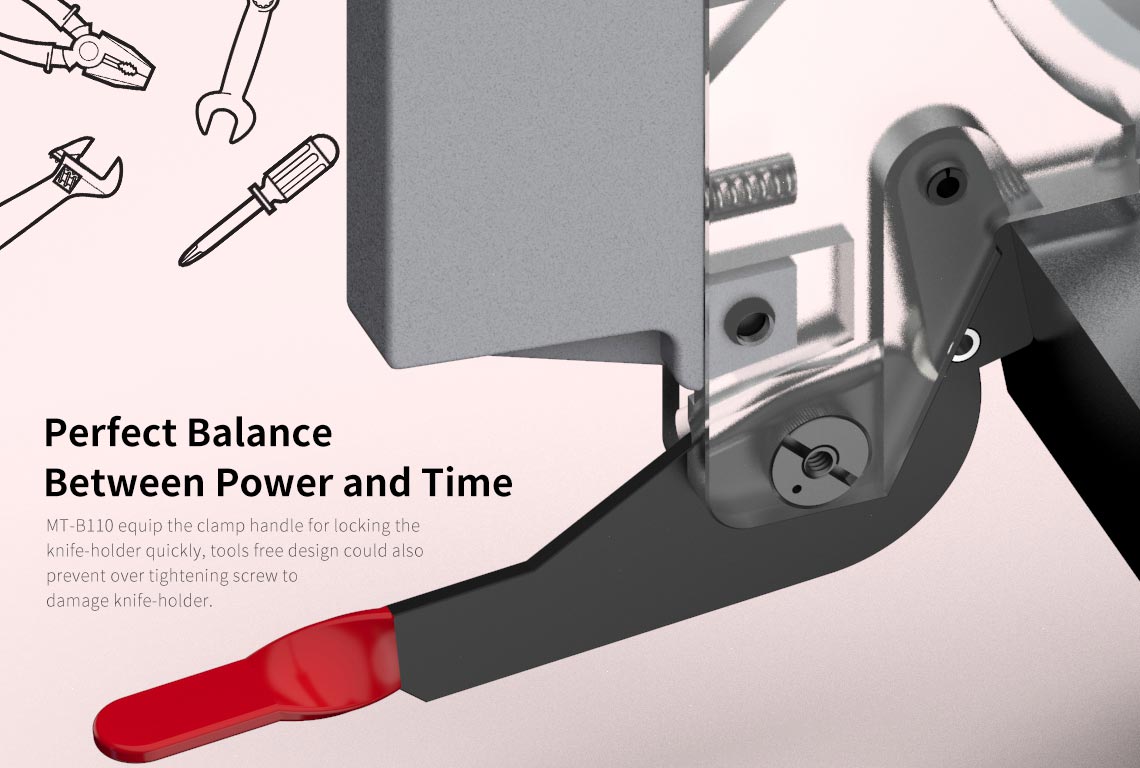

                                            Easy clamp locking method


Suitable                        Various Papers >>>      kraft paper, silicone paper, releasing  paper, decoration

                                                                                            wallpaper, masking paper, adhesive paper, thick paper

                                                                                            board, corrugated carton paper, sandpaper.

                                          Various Plastic films >>>      flexible laminated films, soft & rigid PVC films, BOPP,

                                                                                                      PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                          Cloth & fabrics >>>      non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                           cloth, medical cloth, label cloth...etc.

                                                    Foams >>>      PSP foams,PE foams..etc

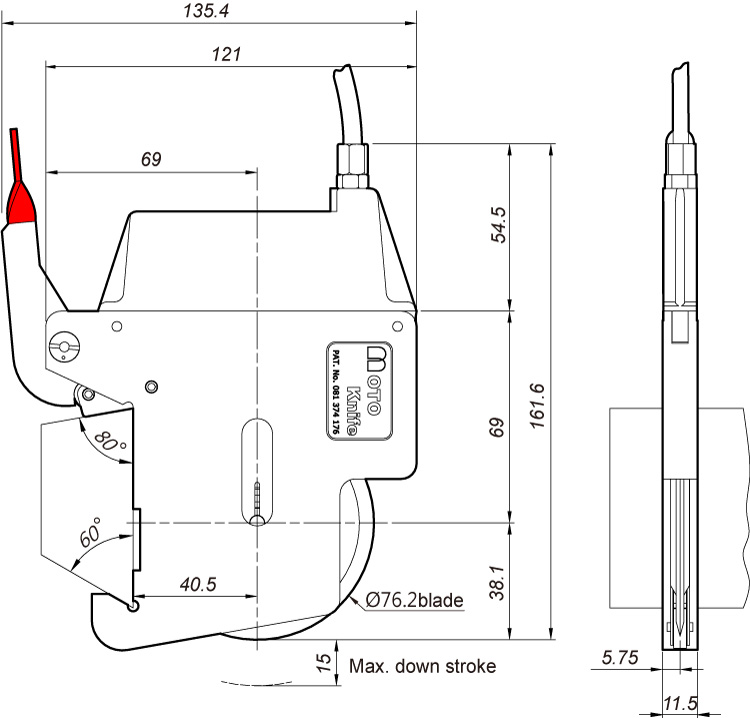

Drawing



(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
