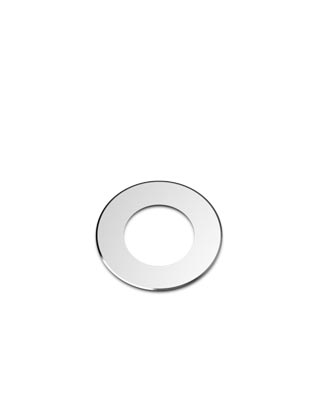

Tungsten blade

Introduce

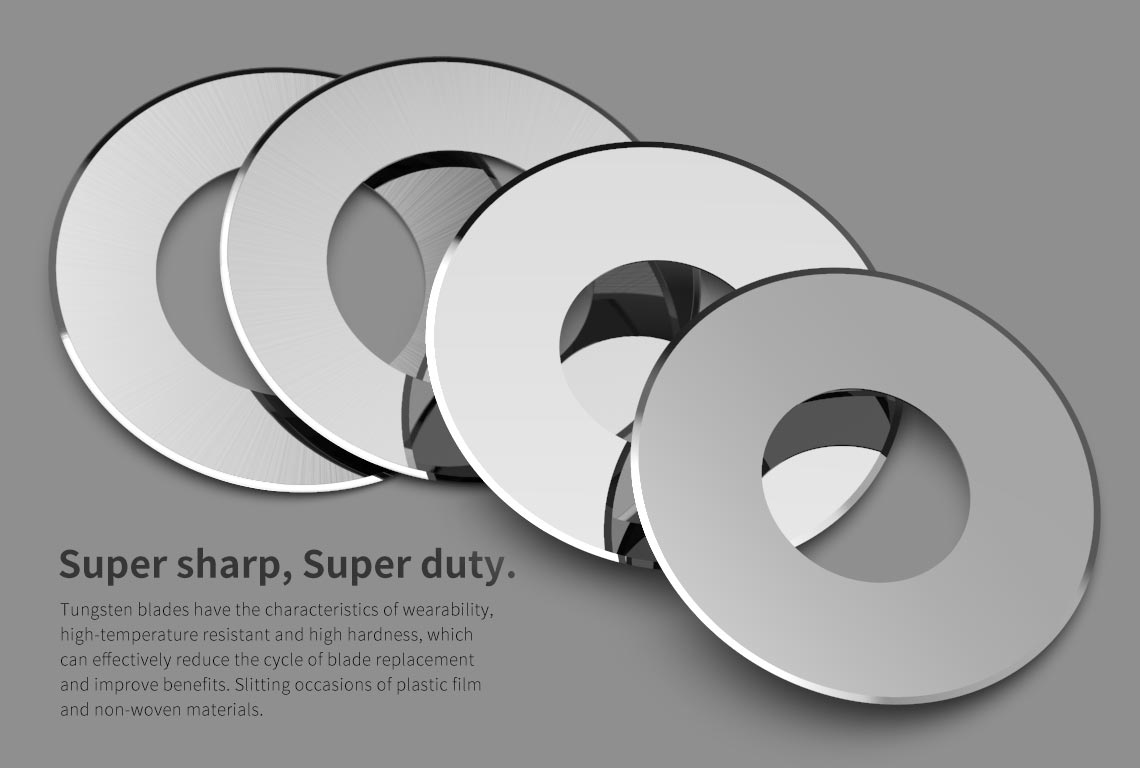

Tungsten blades have the characteristics of wearability, high-temperature resistant and high hardness, which can effectively reduce the cycle of blade replacement and improve benefits. Slitting occasions of plastic film and non-woven materials.

Information Specification Download

Model BT-T-045-020-025-D20 BT-T-045-025-025-D20

bottom blade

Blade O.D. 45mm

Blade I.D. 20mm 25mm

Blade thickness 0.25mm

Blade angel 20 degree

Material Description Tungsten has the advantage of excellent properties such as high hardness, wear resistance,

good strength and toughness, heat resistance and corrosion resistance, especially its high

hardness and wear resistance.

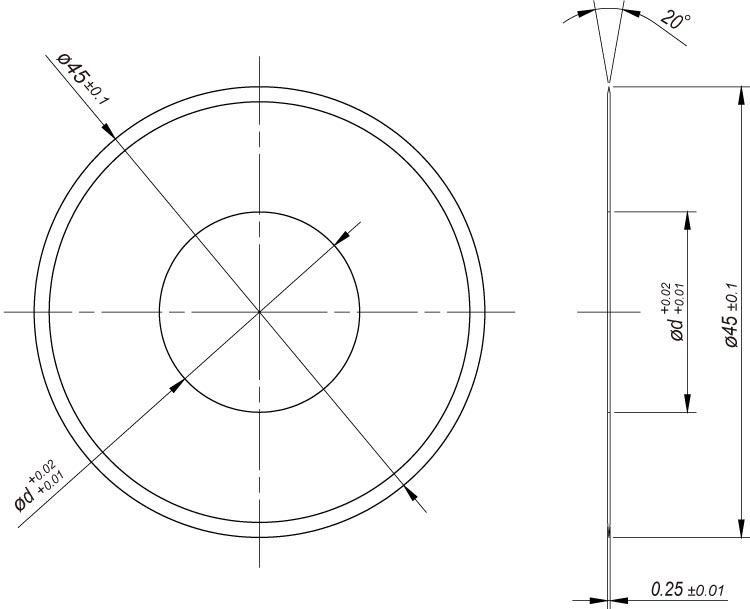

Drawing

Model No.	BT-T-045-020-025-D20	BT-T-045-025-025-D20
d	20	25

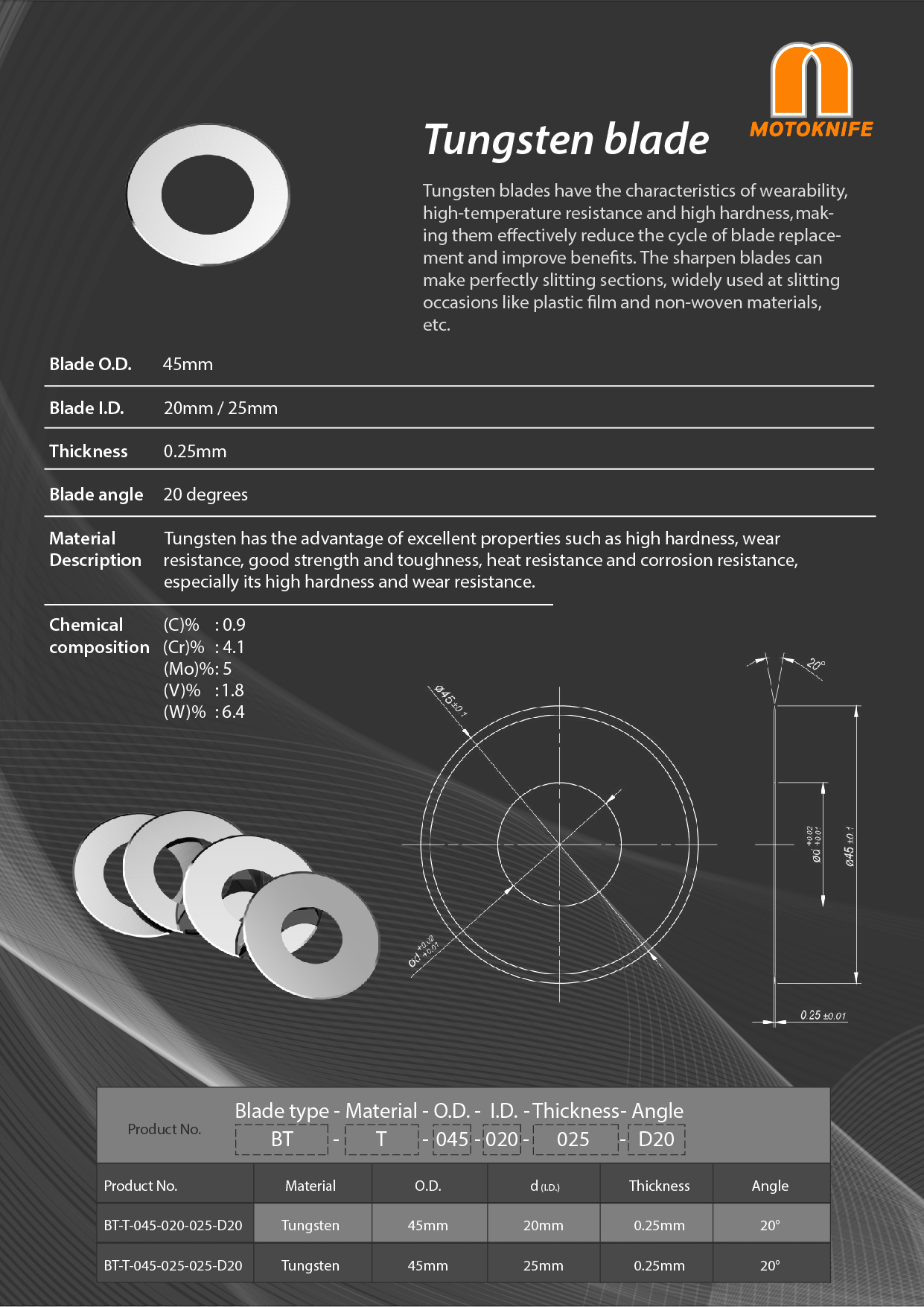

Tungsten blade Catalog

Back to list

檔案下載

Tungsten blade Catalog
