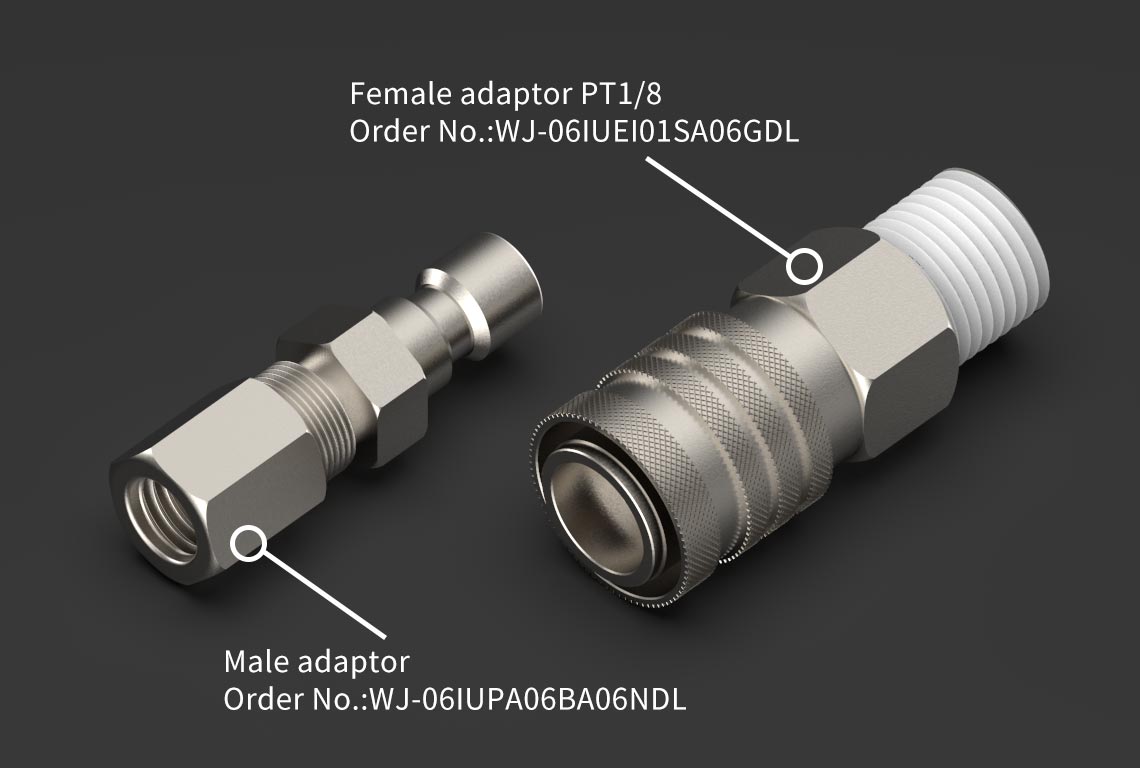

The female connector is installed on the dovetail or the air pressure supply pipe, and the male connector is connected to the end of the pneumatic tube of the knife holder. The male and female connectors are used for the rapid disassembly of the knife holder air pressure source.
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
