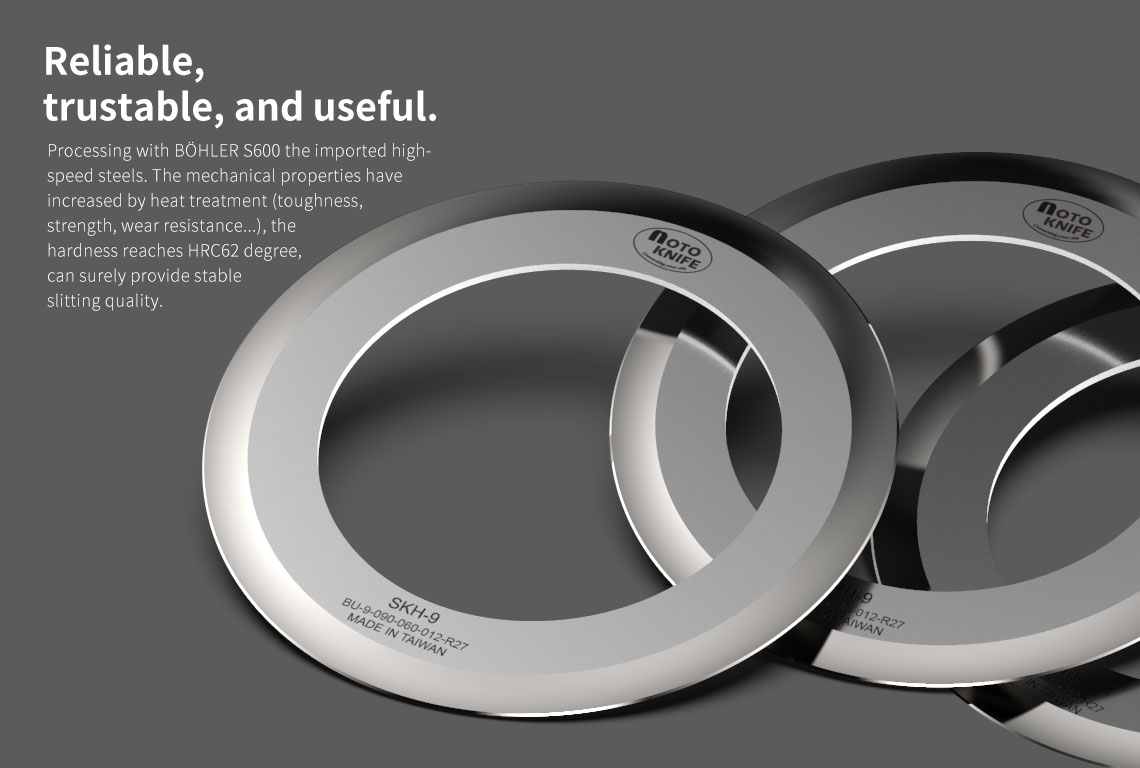

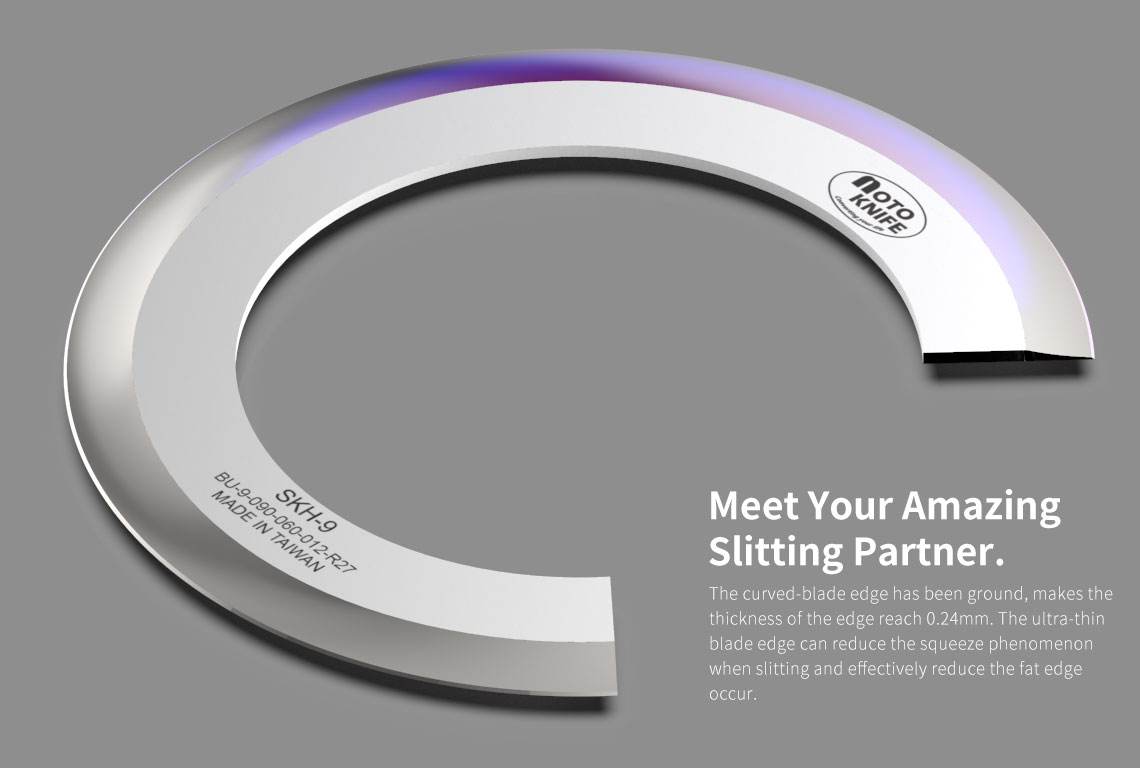

Shear curve blade

Introduce

The top knife is used for shear knife holder MT-A410/A425/A450 application for different materials such as paper, plastic film , rubber,non-woven, cloth, and other thin films etc. HSS material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Information Specification Download

Shear curve blade

Model BU-9-090-060-012-R27

shear curve knives

Blade O.D. 90mm

Blade I.D. 60mm

Blade thickness 1.25mm

Blade angle 40 degrees

Knife-holder MT-A410/A425/A450

Material Description The steel S600 grades are GB W6Mo5Cr4V2 in China , JIS SKH51 in Japan, AISI M2 in USA,

DIN 1.3343 in Germany.

S600 tungsten-molybdenum high-speed steel has excellent toughness and cutting properties,

can meet a wide range of application requirements and is suitable for making various types of inserts.

Chemical composition (C)% : 0.9

(Cr)% : 4.1

(Mo)% : 5

(V)% : 1.8

(W)% : 6.4

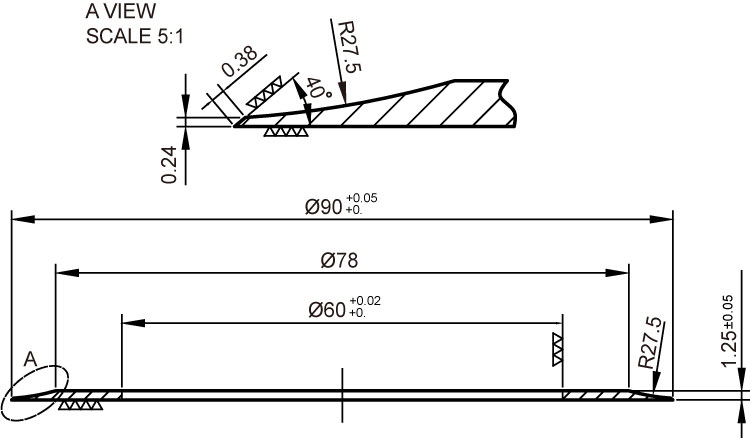

Drawing

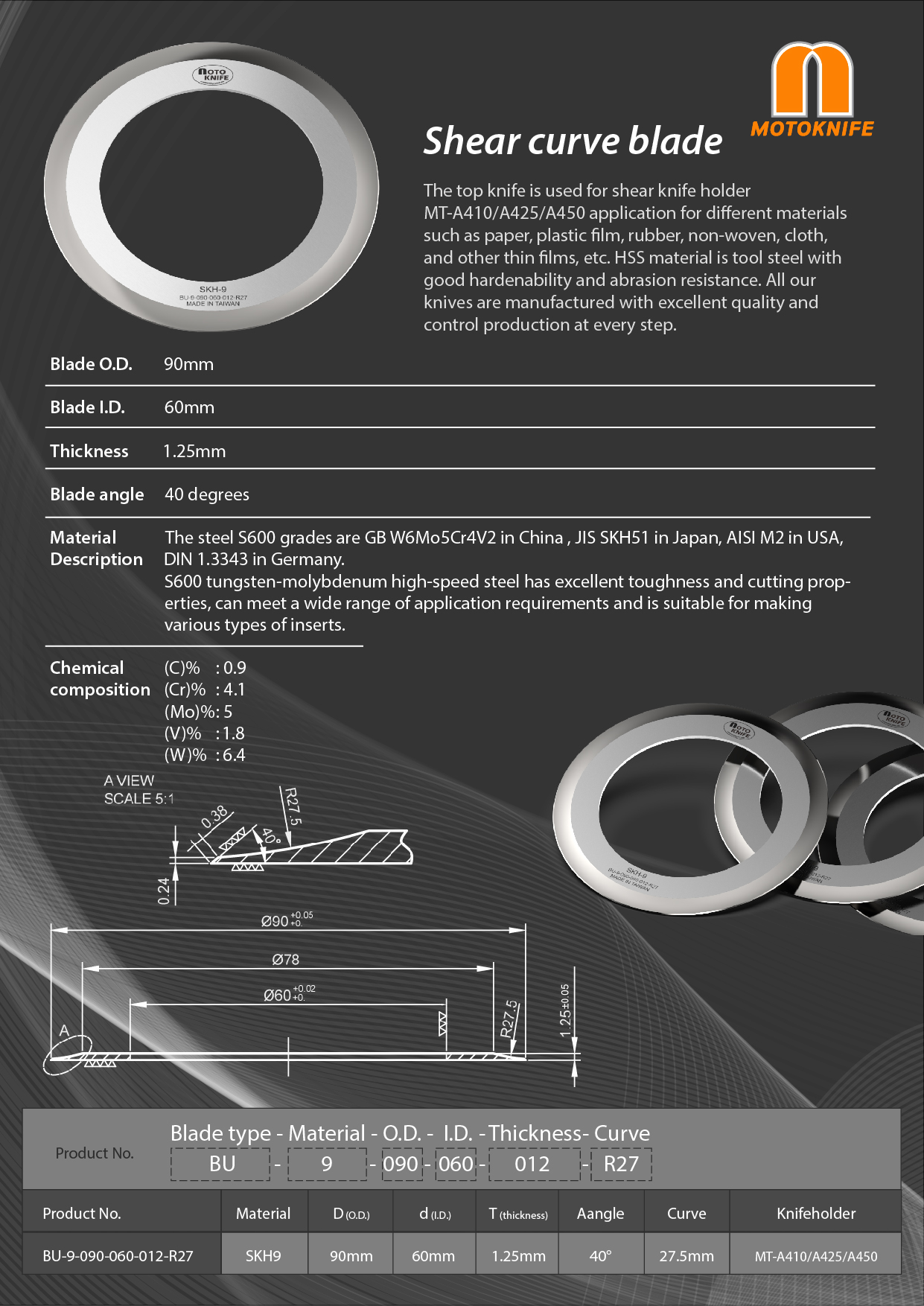

Shear curve blade Catalog

Back to list

檔案下載

Shear curve blade Catalog
