Heavy-duty Pneumatic Shear Knifeholder
MT-A660
Introduce

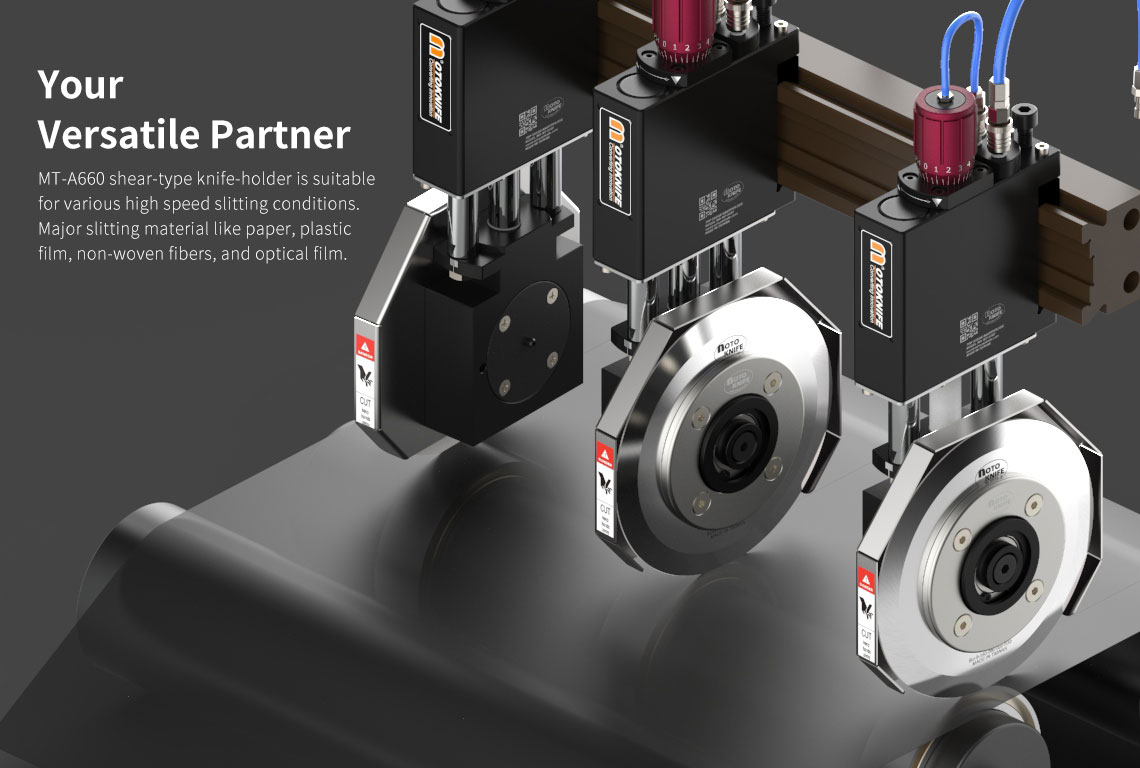

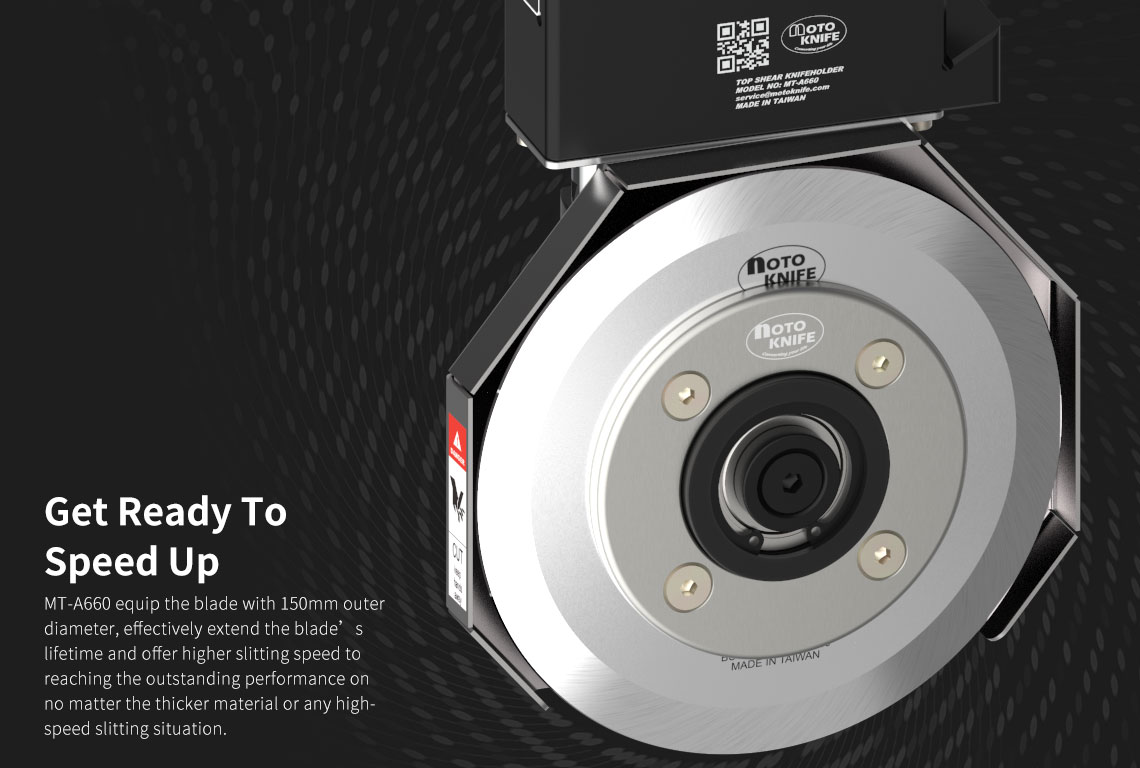

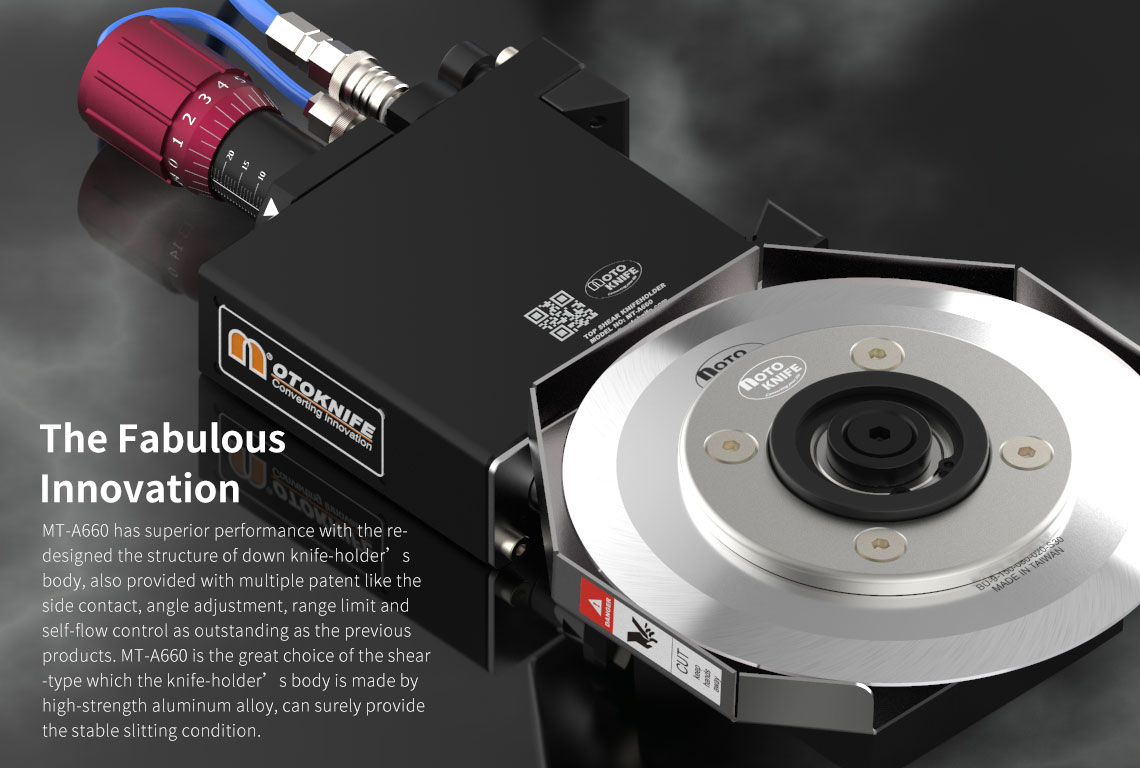

MT-A660 pneumatic shear-type knife-holder equips two sets of the manual valve which able to individually or be linked to control the downstroke and sidestroke. Our patented knife-holder body is made of high-strength 6061 aluminum alloy, can provide stable downforce pressure by three-cylinder robust design, reaching the perfect slitting effect. MT-A660 can well-handle the adjustment of the cant angle for the different material path direction, also strengthen the structure to ensure the consistency of the slitting quality. With high rigidity knife-holder and the 150mm blade, MT-A660 knife-holder is ideally suited for paper, plastic film, non-woven fibers, and others converting industry material.

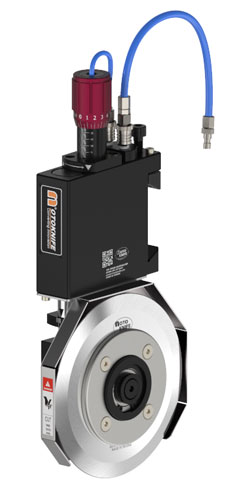

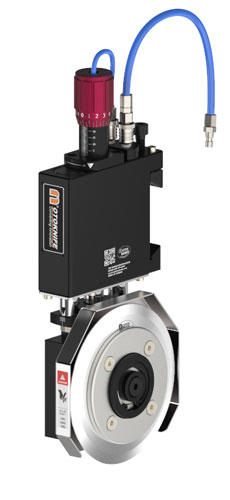

Model MT-A660-BU150 MT-A660-BU130
Min. slit width 65mm
Max. slit speed 1000M/min 800M/min
Down-stroke 0~25mm
Air pressure 3~6/kg/cm²

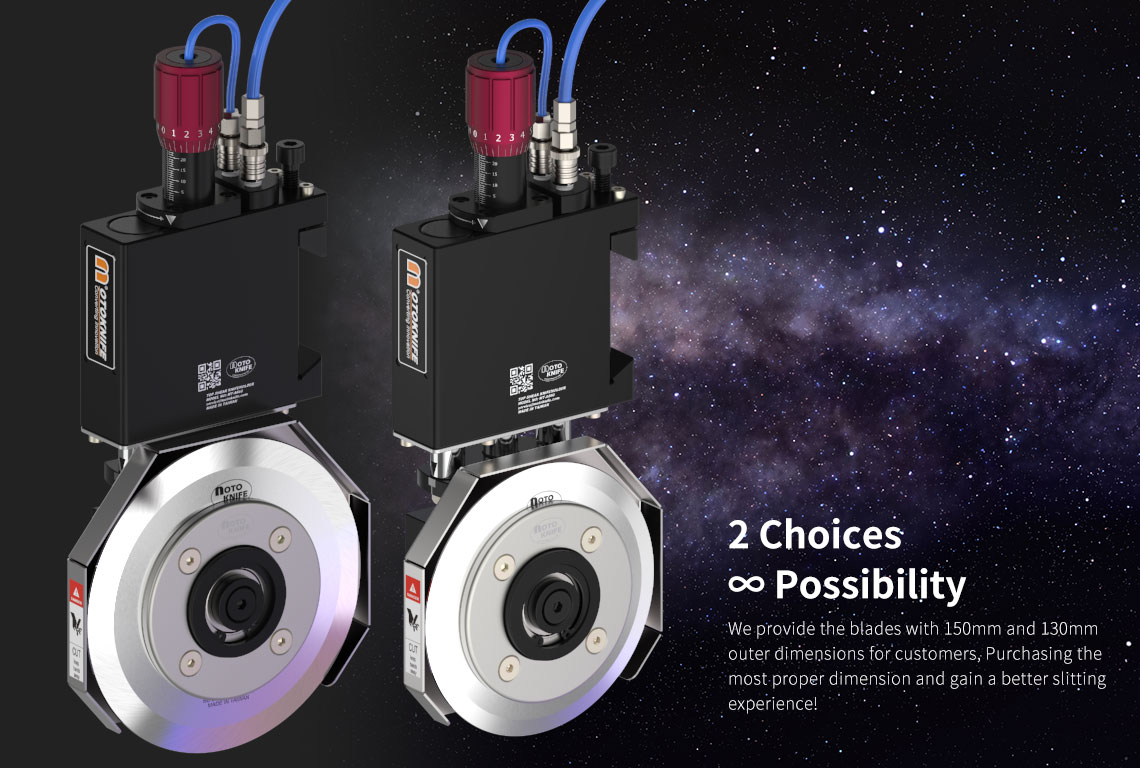

Blade O.D. Ø150mm Ø130mm
Side-stroke 0~3mm
Guide-bar GB01/GB02/GB03
Feature Patented self flow control
Micro down stroke adjustment

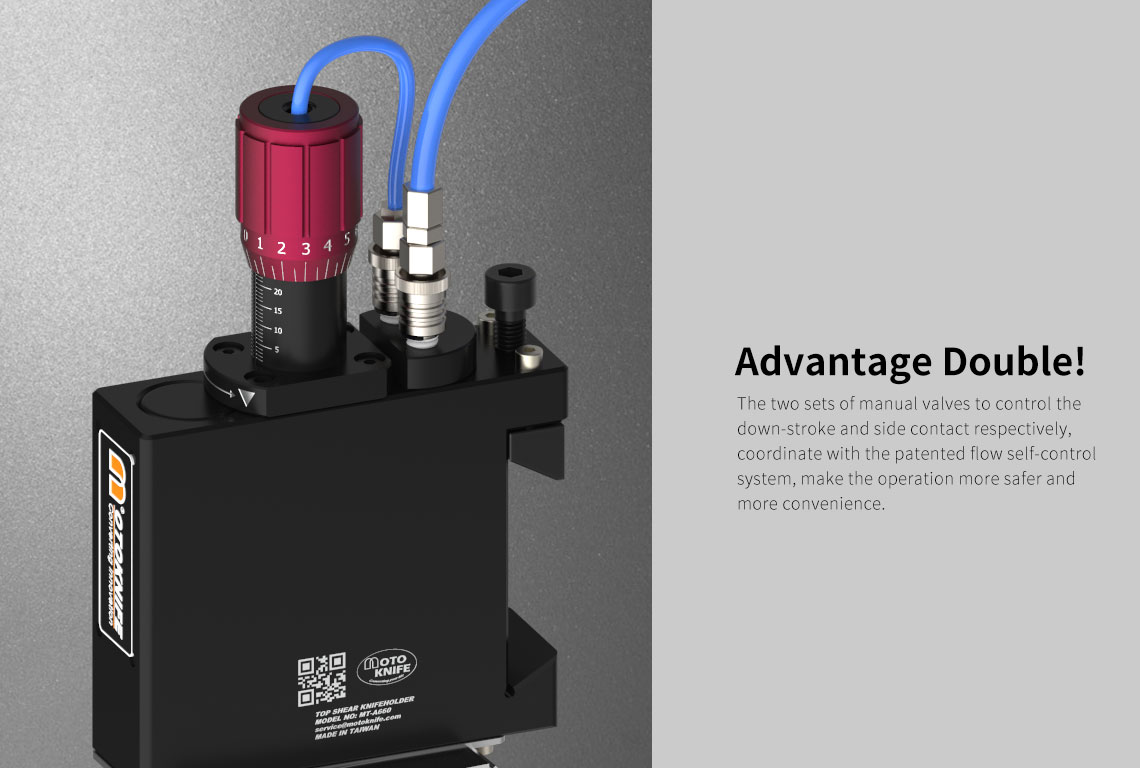

Individual contorl valve

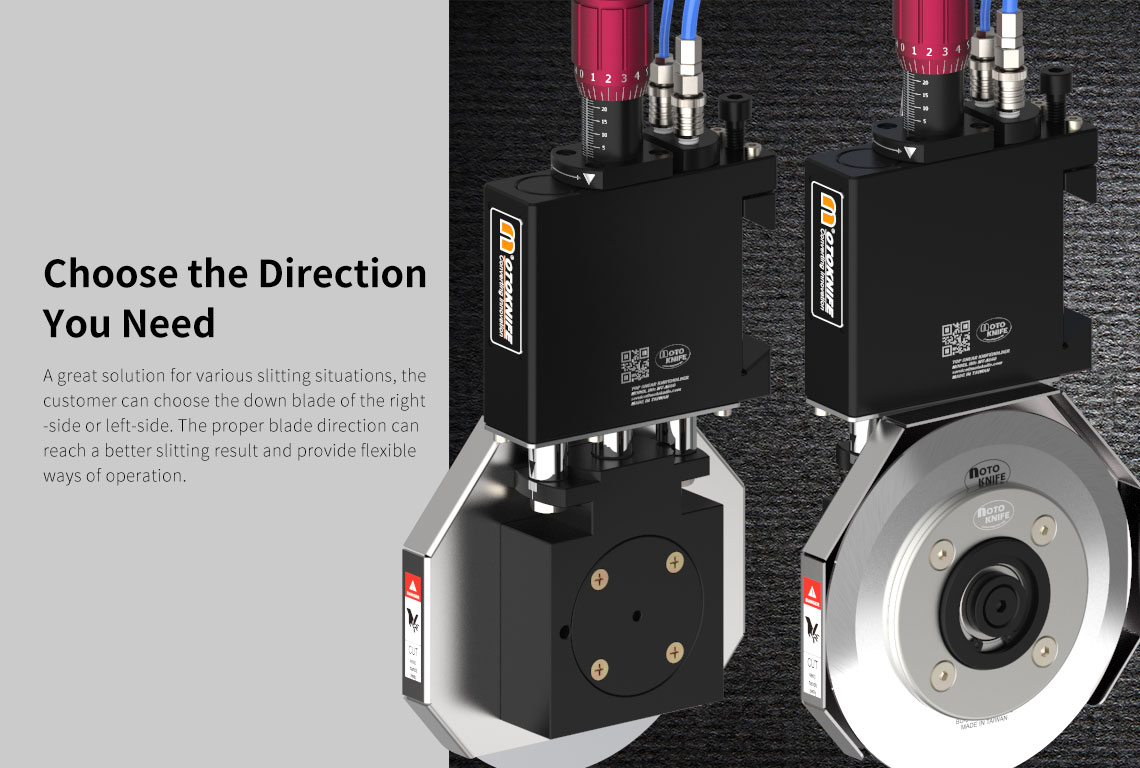

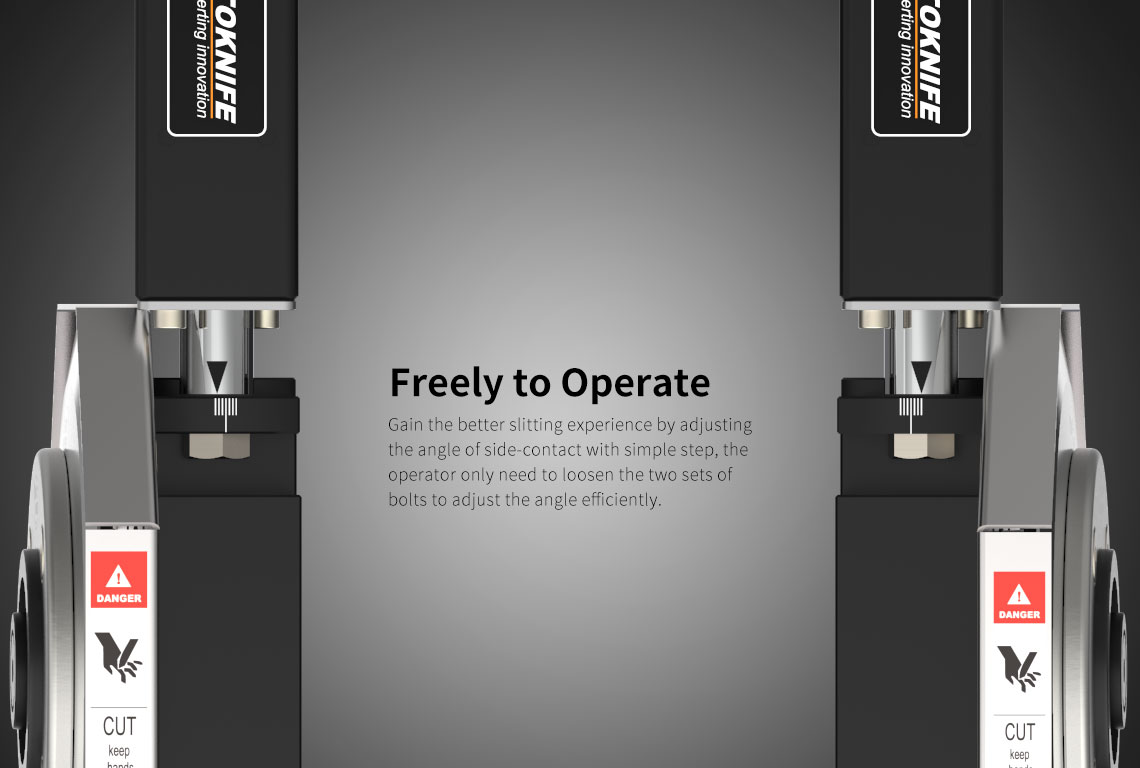

Cant angle adjustment
Patented structure design
Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration
wallpaper, masking paper.
Various Plastic films >>> flexible laminated films, soft PVC films, BOPP,
PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.
Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh
cloth, medical cloth, label cloth...etc.
Metal films >>> Copper foil, aluminum foil.

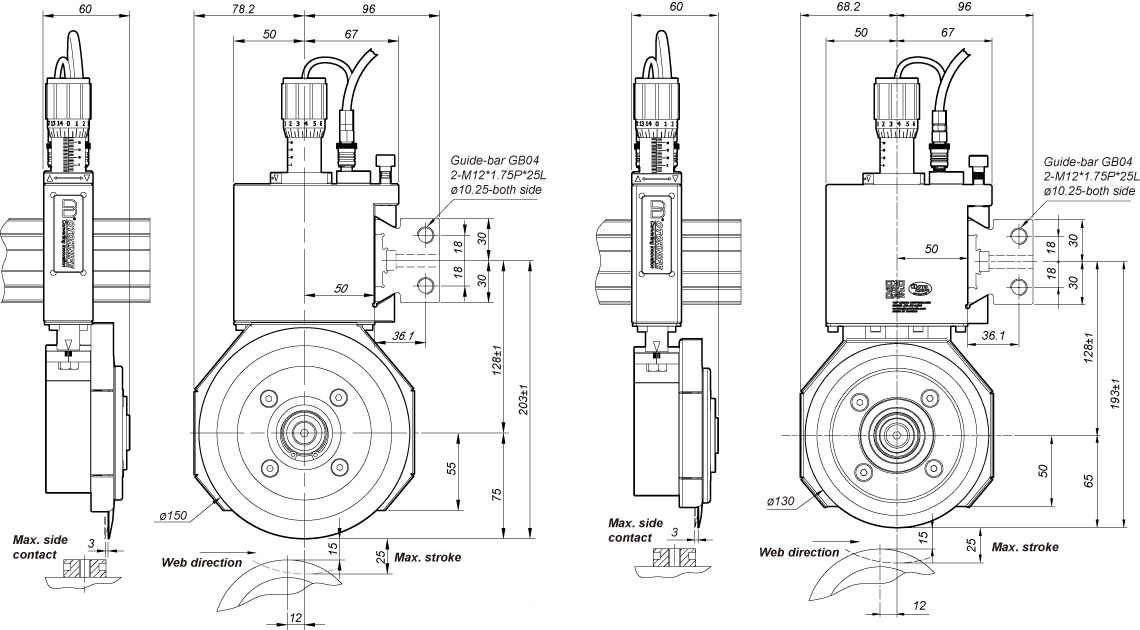

Drawing
Recommend
Crush Cut Knives
Precision blade
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
Guide-bar
GB05
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
Crush Cut Knives
130T Unibody Zigzag knife
The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.
Bearing
5.0mm/6.2mm Bearing
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
