130T Zigzag knife

Introduce

The 130 teeth zigzag blade is made of high-speed steel (HSS) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.

Information Specification Download

Zigzag knife

Model BZ-9-076-040-012-130 DJ-BFC0550BZ-D DJ-BFC0550BZ-U

bottom blade

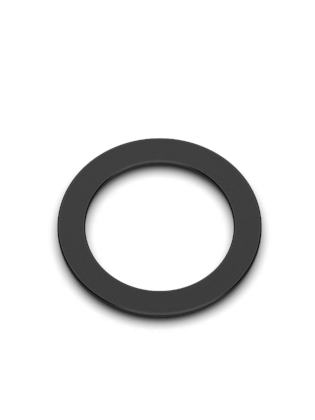

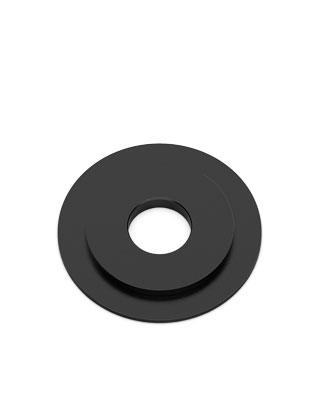

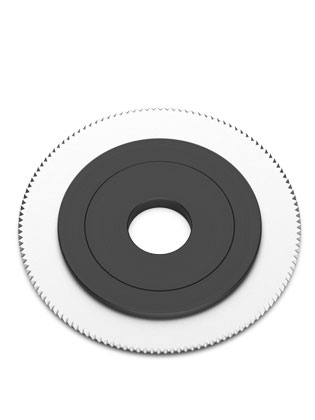

Zigzag knife assemble Clip(up) Clip(bottom)

Blade O.D. 76 ±0.2mm

Blade I.D. 17mm

Blade thickness 5mm

Teeth 130

Material Description The steel S600 grades are GB W6Mo5Cr4V2 in China , JIS SKH51 in Japan,

AISI M2 in USA, DIN 1.3343 in Germany.

S600 tungsten-molybdenum high-speed steel has excellent toughness and cutting properties,

can meet a wide range of application requirements and is suitable for making various types of inserts.

Chemical composition (C)% : 0.9

(Cr)% : 4.1

(Mo)% : 5

(V)% : 1.8

(W)% : 6.4

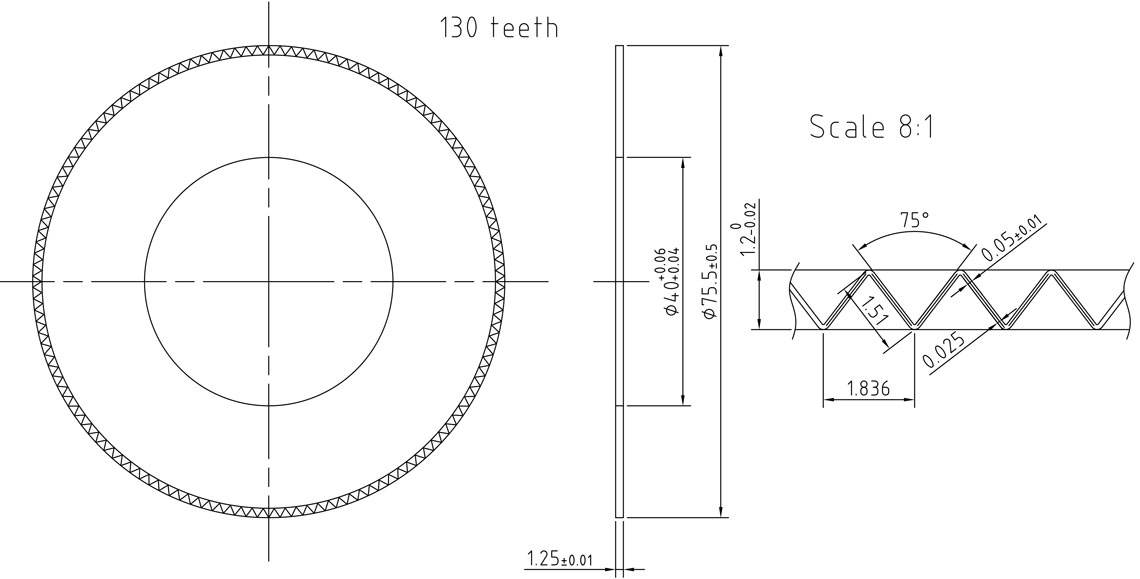

Zigzag knife drawing

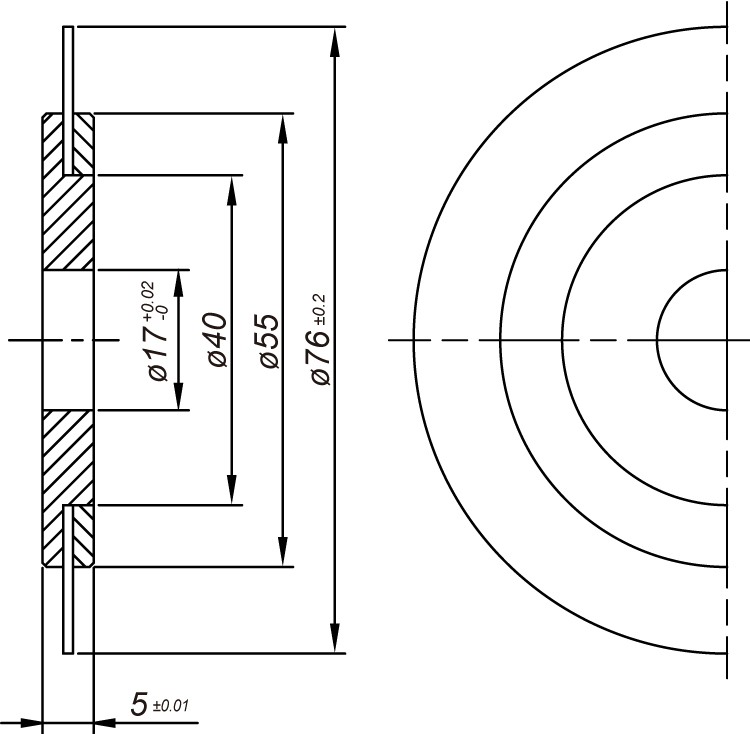

Assemble drawing

130T Zigzag knife Catalog
