Top Knives

Shear blade

Introduce

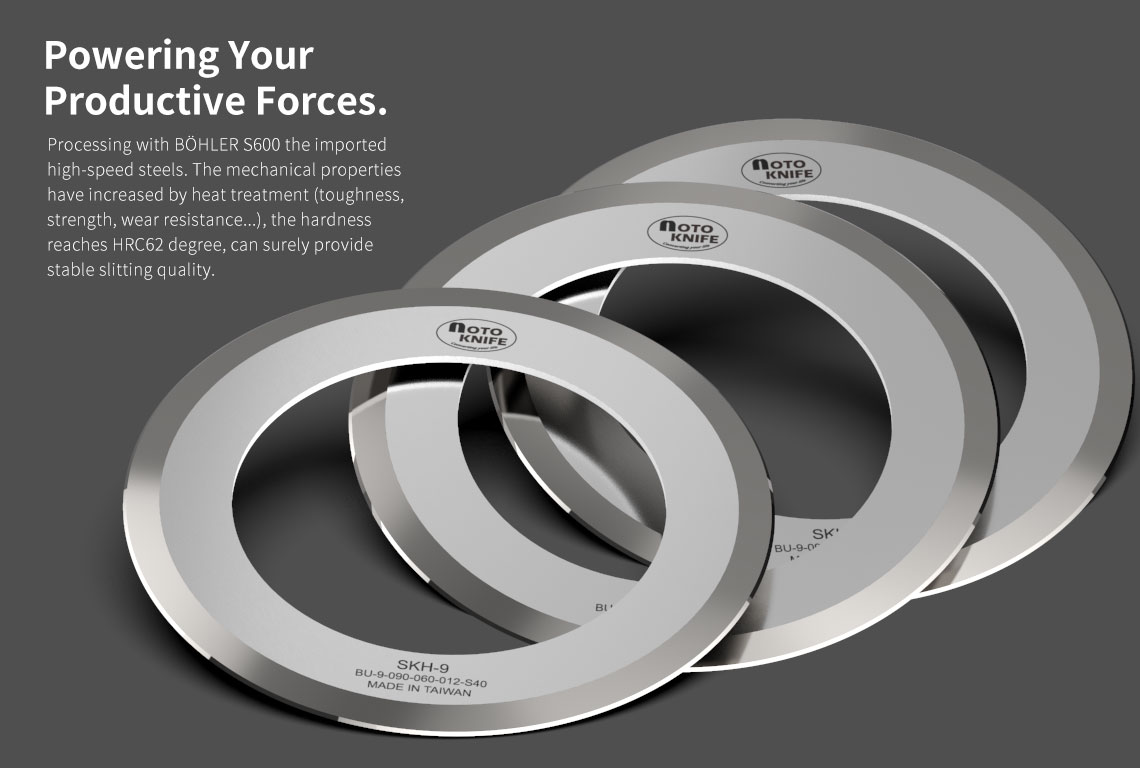

The top knife is used for shear knife holder MT-A410/A425/A450 application for different materials such as paper, plastic film , rubber,non-woven, cloth, and other thin films etc. HSS material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.

Information Specification Download

shear knives

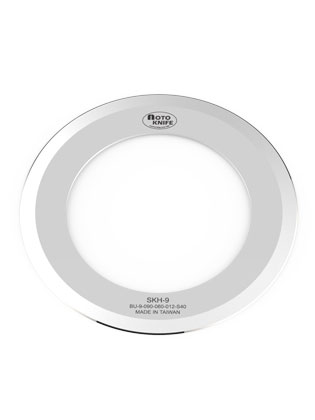

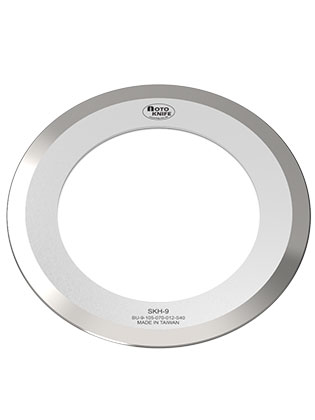

Model BU-9-090-060-010-S40 BU-9-105-070-012-S40

BU-9-090-060-012-S40

shear blade

Blade O.D. 90mm 105mm

Blade I.D. 60mm 70mm

Blade thickness 1.0mm/1.25mm 1.25mm

Blade angle 40 degrees

Knife-holder MT-A410/A425/A450 MT-A450L

Material Description The steel S600 grades are GB W6Mo5Cr4V2 in China , JIS SKH51 in Japan,

AISI M2 in USA, DIN 1.3343 in Germany.

S600 tungsten-molybdenum high-speed steel has excellent toughness and cutting properties,

can meet a wide range of application requirements and is suitable for making various types of inserts.

Chemical composition (C)% : 0.9

(Cr)% : 4.1

(Mo)% : 5

(V)% : 1.8

(W)% : 6.4

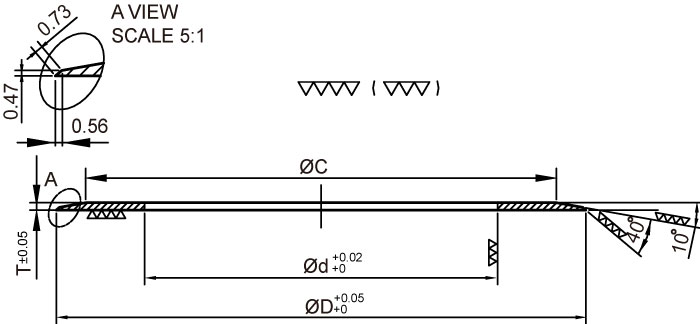

Drawing

Order no.	BU-9-090-060-010-S40	BU-9-090-060-012-S40	BU-9-105-070-012-S40
d	60	60	70
D	90	90	105
C	80	80	95
T	1.0	1.25	1.25
Knife-holder	A410/A425/A450		A450L

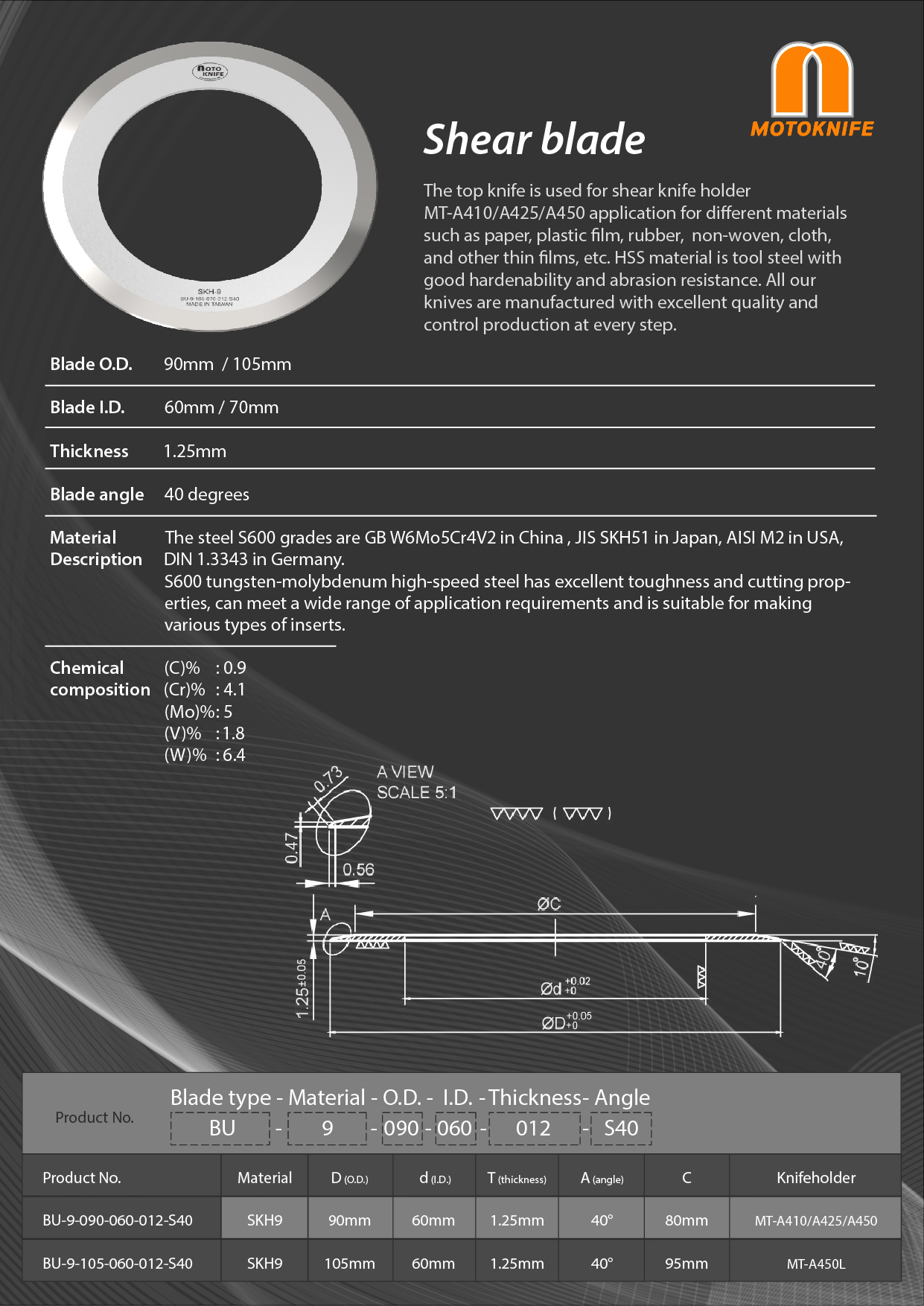

Shear blade Catalog

Back to list

檔案下載

Shear blade Catalog
