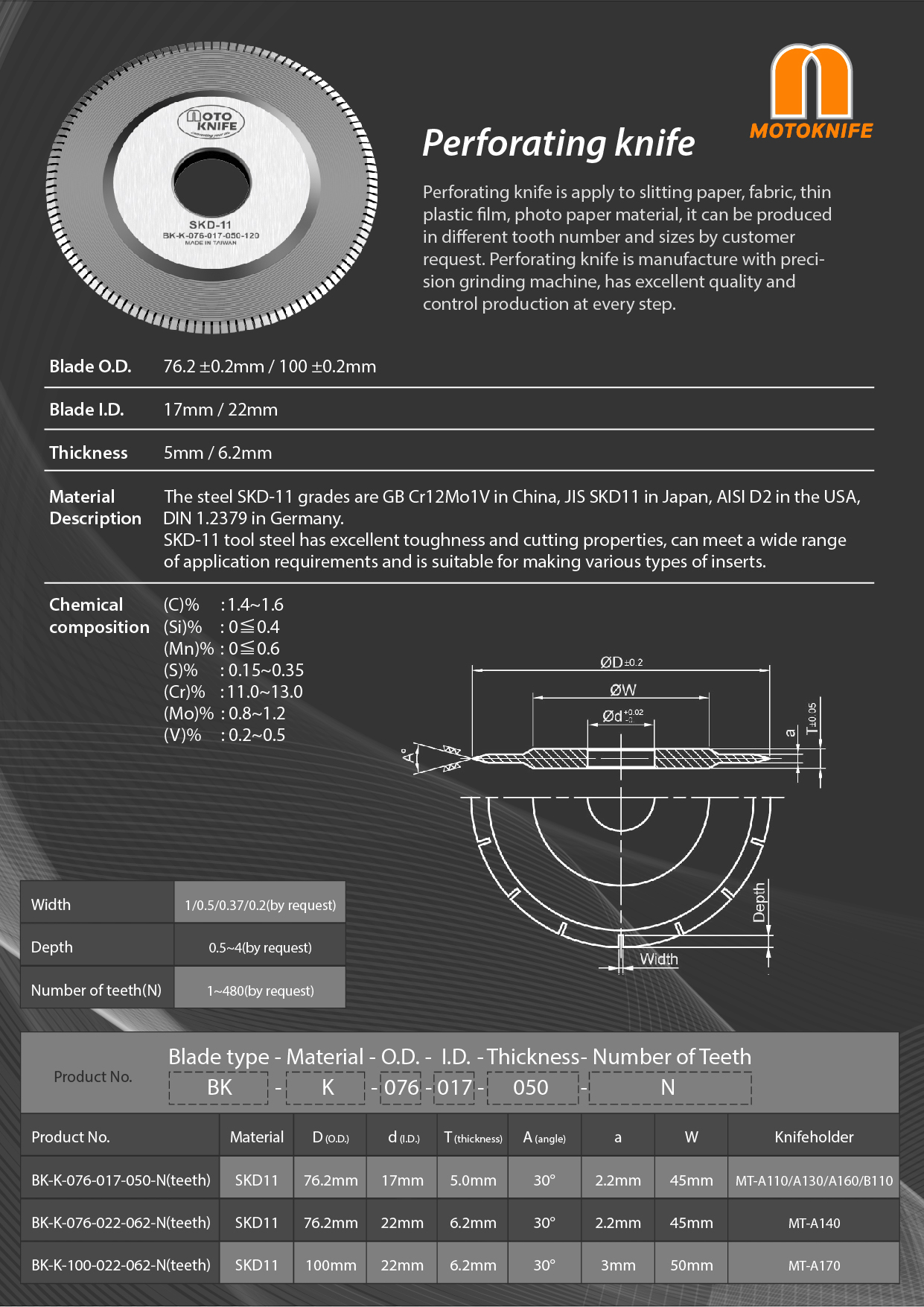

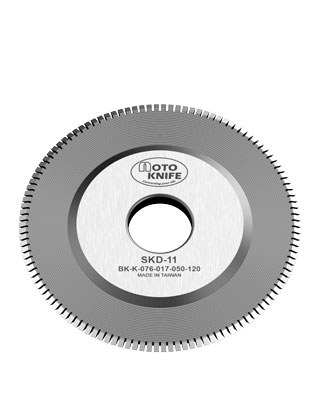

Perforating knife
Introduce

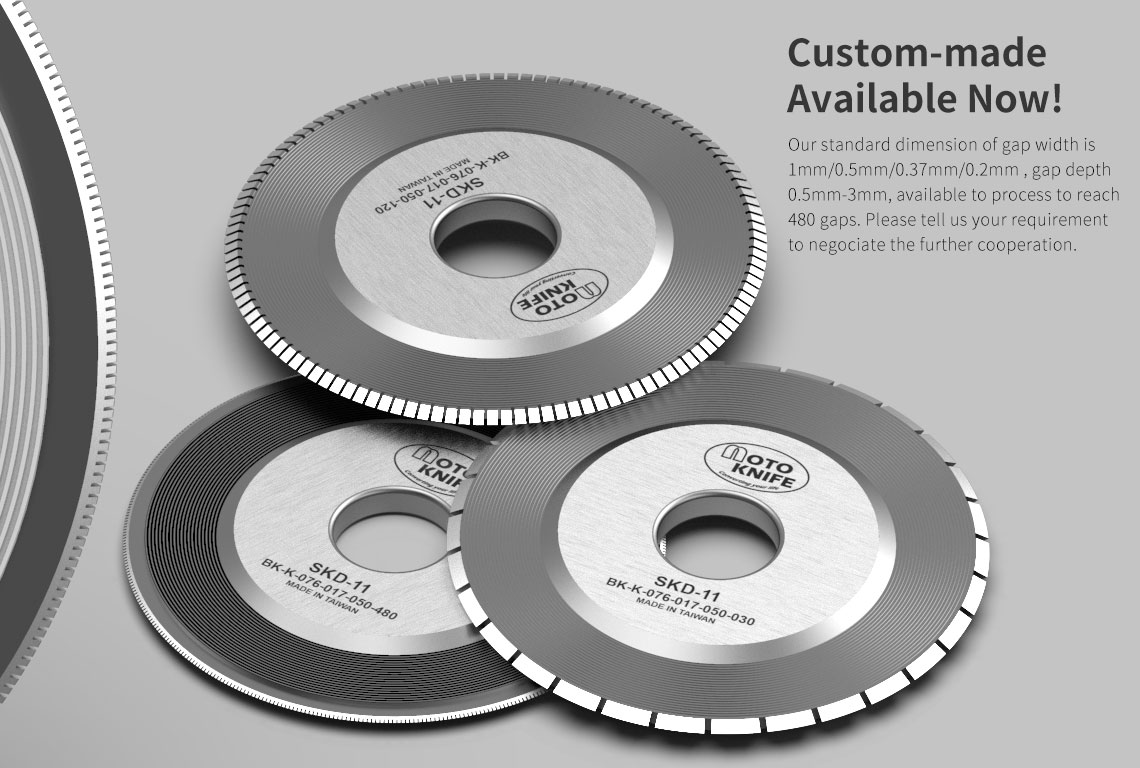

Perforating knife is using for slitting paper, fabric ,thin plastic film, photo paper material, it can be produce in different tooth number and sizes by customer request. Perforating knife is manufacture with precision grinding machine, has excellent quality and control production at every step.
Blade O.D. 76.2 ±0.2mm / 100 ±0.2mm
Blade I.D. 17mm / 22mm
Thickness 5mm /6.2mm
Material Description The steel SKD-11 grades are GB Cr12Mo1V in China , JIS SKD11 in Japan,
AISI D2 in USA, DIN 1.2379 in Germany.
SKD-11 tool steel has excellent toughness and cutting properties, can meet a
wide range of application requirements and is suitable for making various types of inserts.
Chemical composition (C)% : 1.4~1.6
(Si)% :<0.4
(Mn) % : ≤0.6
(S)% :0.15~0.35
(Cr)% : 11~13
(Mo)% : 0.8~1.2
(V)% : 0.2~0.5

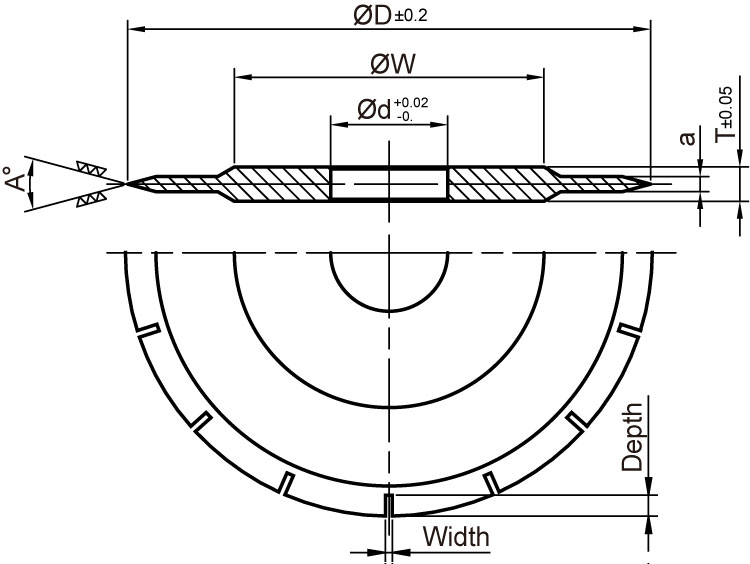

Drawing
Unit: mm
|
Order no. |
BK-K-076-017-050-N(teeth) |
BK-K-076-022-062-N(teeth) | BK-K-100-022-062-N(teeth) | |
|
d |
17 |
22 | 22 | |
|
D |
76.2 |
76.2 | 100 | |
| W | 45 | 45 | 50 | |
| A | 30 | 30 | 30 | |
| a | 2.2 | 2.2 | 3 | |
| T | 5.0 | 6.2 | 6.2 | |
|
Width |
1.4/1.0/0.5/0.37/0.2(by request) |
|||
|
depth |
0.5~4(by request) | |||
| Number of teeth(N) | 1~480(by request) | |||
| Knife-holder | MT-A110/A130/A160/B110 | MT-A140 | MT-A170 | |
