Score knife
Introduce

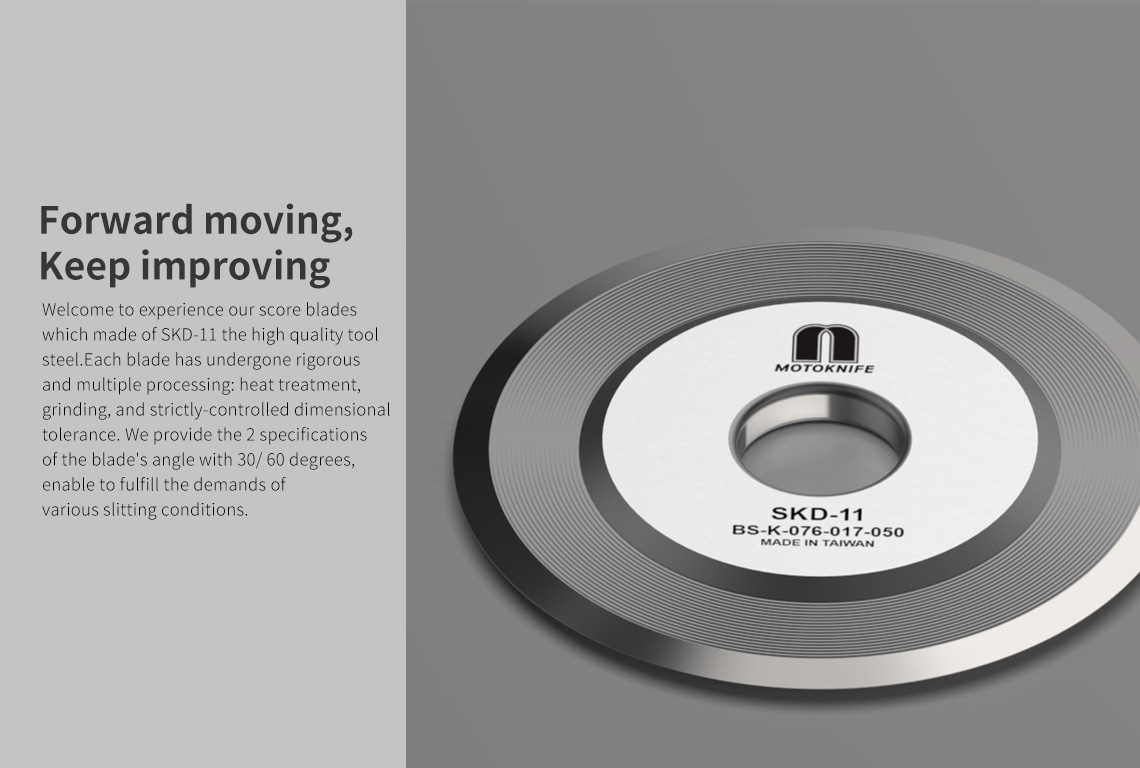

Slitting score knives is most commonly used for different crush cut applications such as paper, plastic film, rubber, cloth, and other thin films, etc. SKD-11 material is tool steel with good hardenability and abrasion resistance. All our knives are manufactured with excellent quality and control production at every step.
Blade O.D. 76.2 ±0.2mm / 100 ±0.2mm
Blade I.D. 17mm / 22mm
Thickness 5mm /6.2mm
Material Description The steel SKD-11 grades are GB Cr12Mo1V in China , JIS SKD11 in Japan,
AISI D2 in USA, DIN 1.2379 in Germany.
SKD-11 tool steel has excellent toughness and cutting properties, can meet a
wide range of application requirements and is suitable for making various types of inserts.
Chemical composition (C)% : 1.4~1.6
(Si)% :<0.4
(Mn) % : ≤0.6
(S)% :0.15~0.35
(Cr)% : 11~13
(Mo)% : 0.8~1.2
(V)% : 0.2~0.5

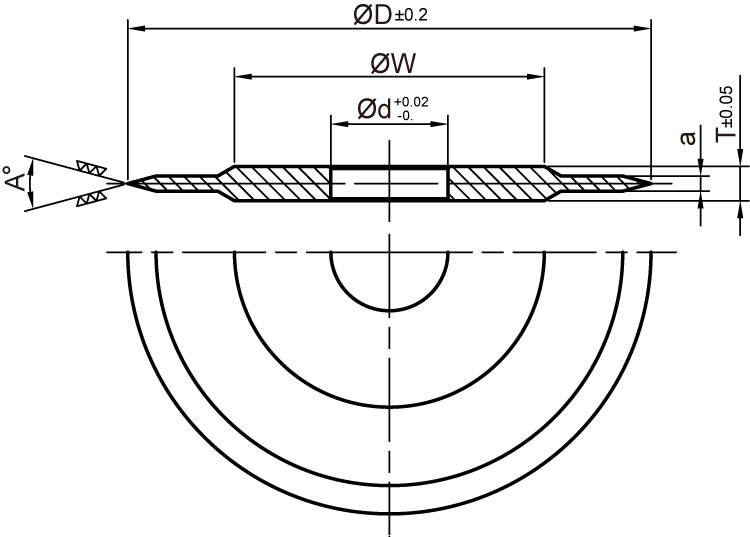

Drawing
Unit: mm
|
Order no. |
BS-K-076-017-050-D30 |
BS-K-076-017-050-D60 |
BS-K-076-022-062-D30 |
BS-K-076-022-062-D60 |
BS-K-100-022-062-D30 |
|
d |
17 |
17 |
22 |
22 |
22 |
|
T |
5.0 |
5.0 |
6.2 |
6.2 |
6.2 |
|
A |
30° |
60° |
30° |
60° |
30° |
|
D |
76.2 |
76.2 |
76.2 |
76.2 |
100 |
| W | 45 | 45 | 45 | 45 | 50 |
| a | 2.2 | 2.2 | 2.2 | 2.2 | 3 |
| Knifeholder | MT-A110/A130/A160/B110 | MT-A140 |
MT-A170 |
||
