Rugged Pneumatic Knifeholder
MT-A170
Introduce

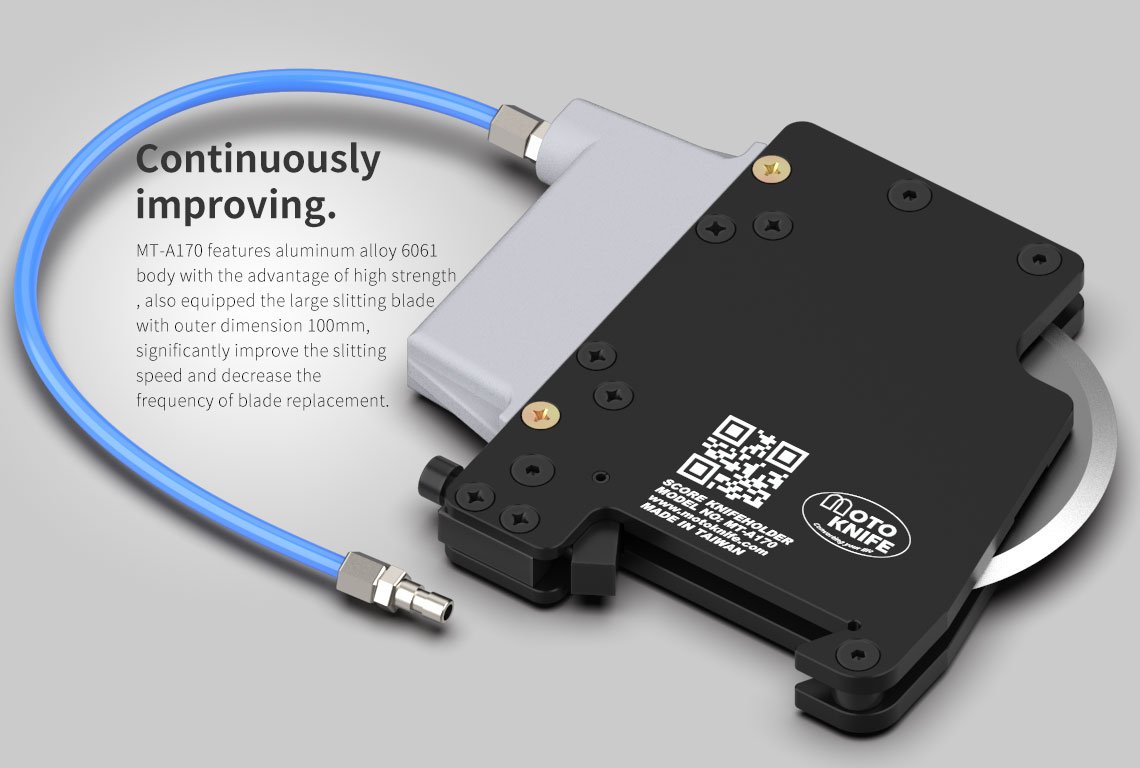

MT-A170 Rugged type knife holder is designed for crush slitting and heritage of the excellent pneumatic score knife-holder serial. It features 6061 aluminum alloy body with the advantage of high strength to extend usage lifetime and is equipped with 100mm slitting blade significantly to improve slitting speed and stability for versatile heavy thickness material application such as rubber, paper, nonwoven, cloth, plastic film, etc. Compared with standard knife-holder it has more space to clear slitting dust due to material which non-woven will produce a lot of dust while slitting.
Model MT-A170-BSK30

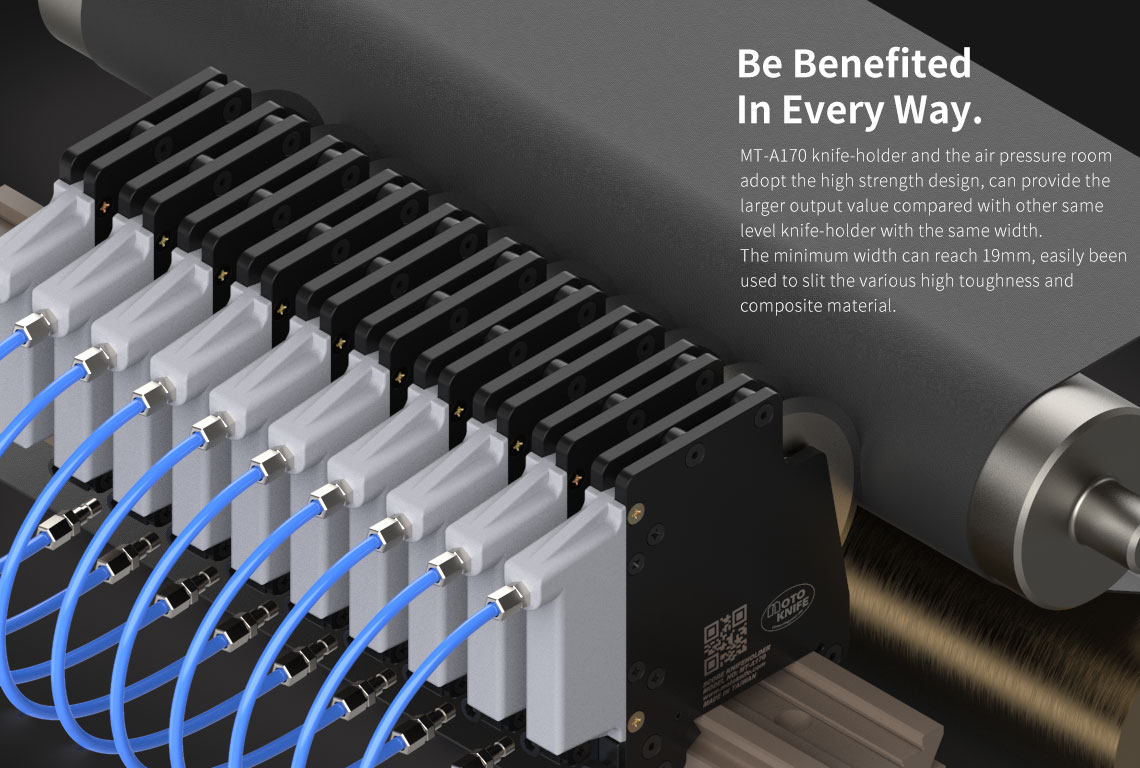

Min. slit width 19mm
Max. slit speed 250M/min(1)
Down-stroke 0~15mm
Air Pressure 3~6/kg/cm²
Blade O.D. Ø100mm
Guide-bar GB01/GB02/GB04
Feature 6061 aluminum alloy knifeholder
Stable downforce provide
Equipped Ø100mm blade
Screw type fix method
Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration
wallpaper, masking paper, adhesive paper, thick paper
board, corrugated carton paper, sandpaper.
Various Plastic films >>> flexible laminated films, soft & rigid PVC films, BOPP,
PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.
Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh
cloth, medical cloth, label cloth...etc.
Foams >>> PSP foams,PE foams..etc
Drawing
(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
Recommend
Crush Cut Knives
Precision blade
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
Guide-bar
GB05
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
Crush Cut Knives
130T Unibody Zigzag knife
The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.
Bearing
5.0mm/6.2mm Bearing
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
