Easy Clamp Pneumatic Knifeholder

Easy Clamp Pneumatic Knifeholder

MT-B110

Introduce

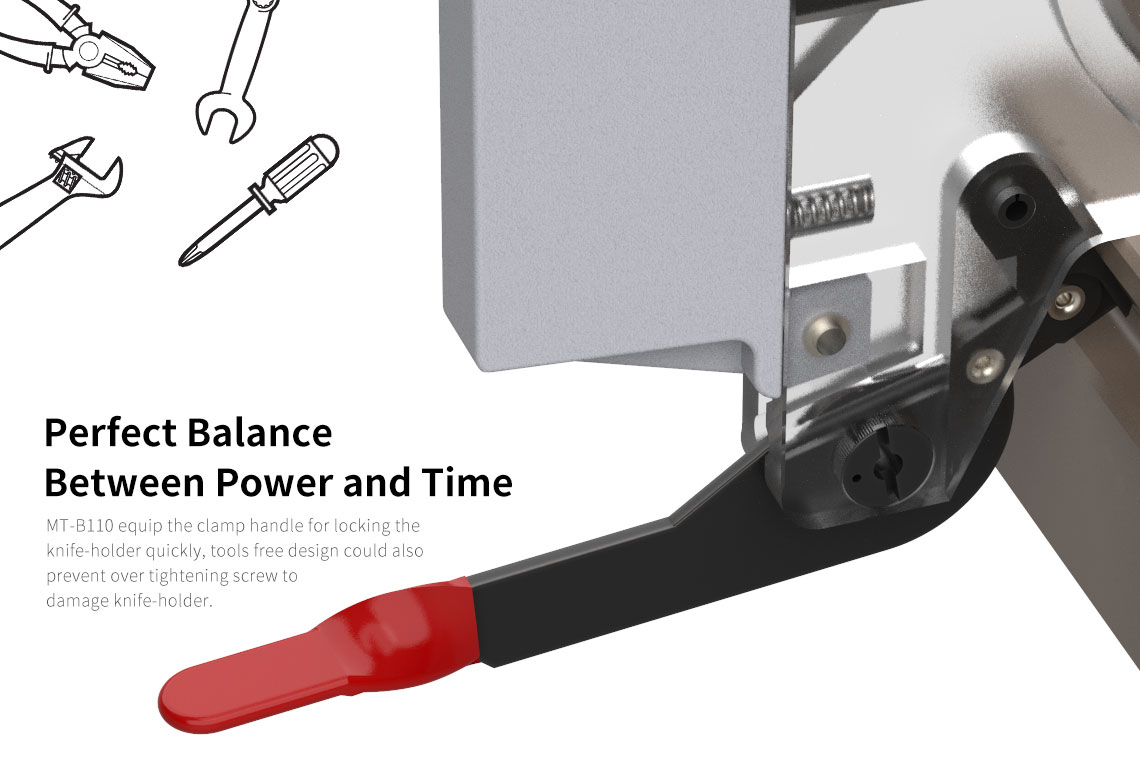

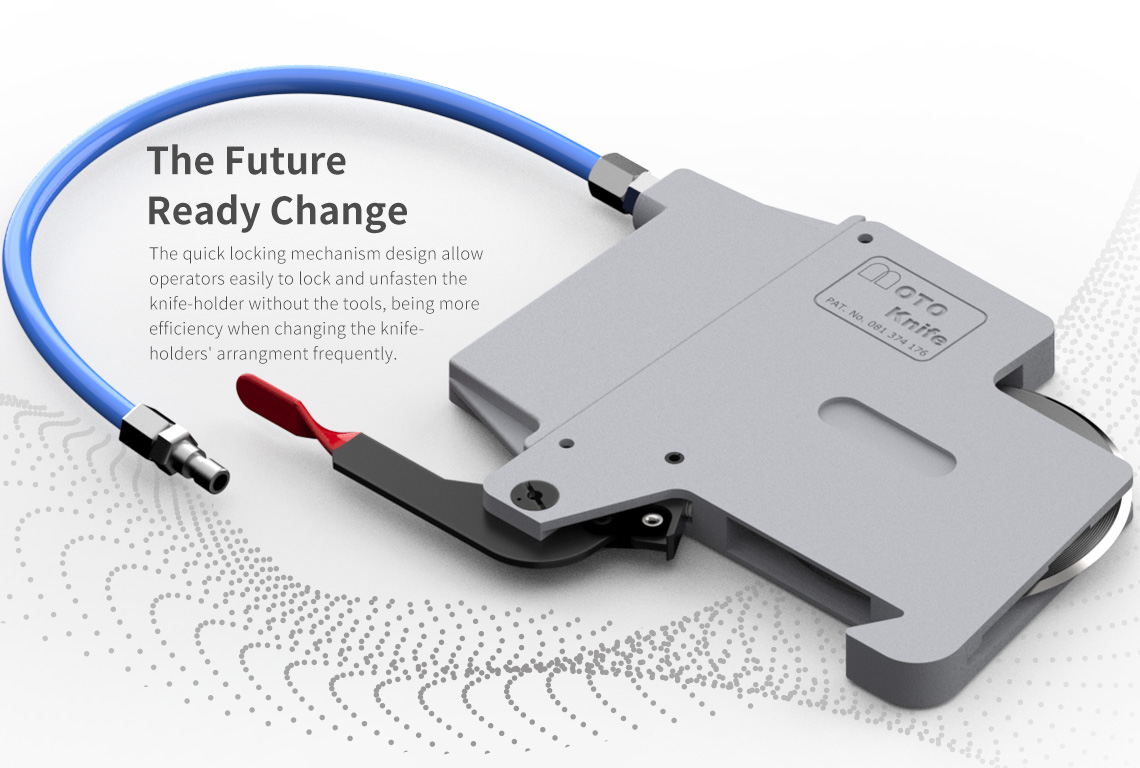

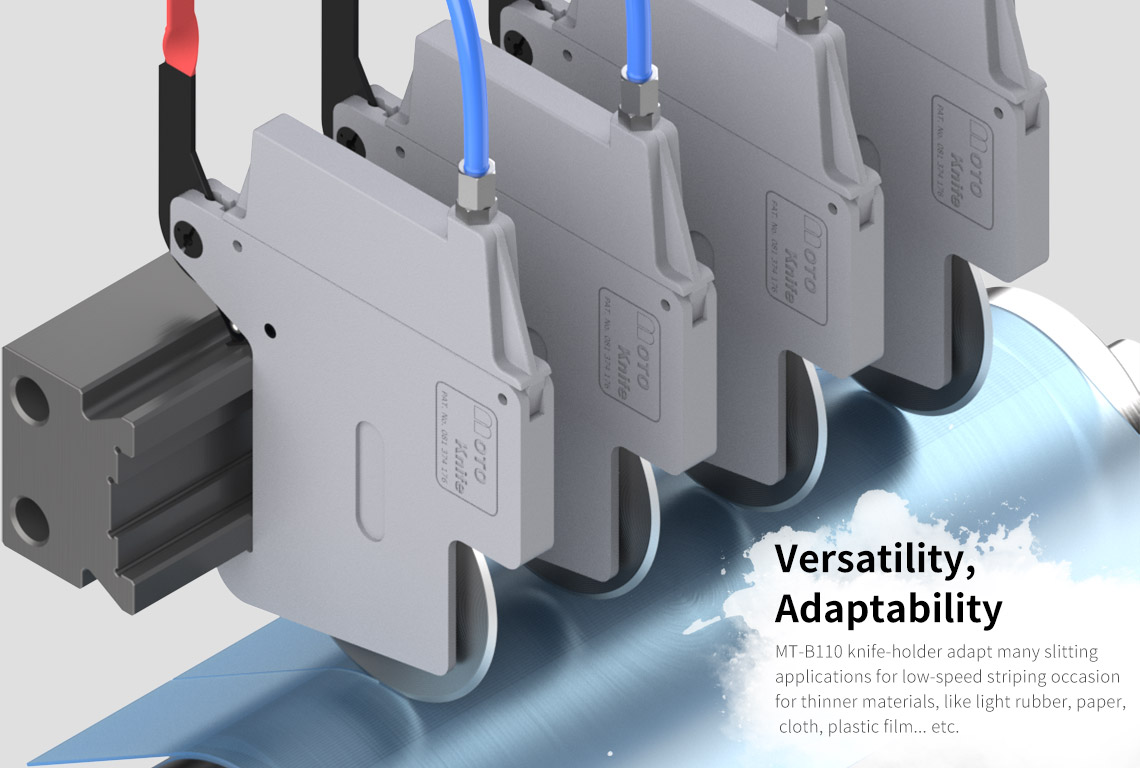

MT-B110 Easy clamp-type knife-holder has a quick locking mechanism design for time-saving in its class. With its easy clamp, it tools free for locking knife-holder on guide-bar only via clamp handle and also can prevent over-tightening screw to damage knife-holder. Optionally teeth ruler with our guide-bar which makes arrange position easily and boost your productivity. MT-B110 is engineered for easy operation and time-saving, it allows adapt many slitting applications like light rubber, paper, cloth, plastic film... etc..

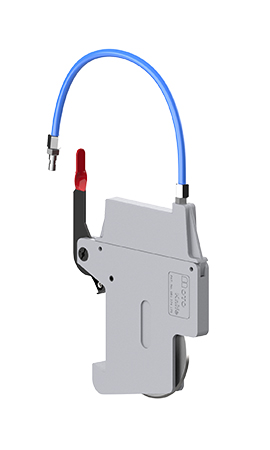

MT-B110 Easy Clamp Type Pneumatic Score Knife holder



MT-B110 Easy Clamp Type Pneumatic Score Knife holder



MT-B110 Easy Clamp Type Pneumatic Score Knife holder



MT-B110 Easy Clamp Type Pneumatic Score Knife holder



MT-B110 Easy Clamp Type Pneumatic Score Knife holder



MT-B110 Easy Clamp Type Pneumatic Score Knife holder

Model                        MT-B110-BSK30

                             MT-B110 easy clamp type pneumatic knife holder


Min. slit width          12mm


Max. slit speed         100M/min(1)


Down-stroke             0~15mm


Air Pressure              3~6/kg/cm²


Blade O.D.                  Ø76.2mm


Guide-bar                  GB01/GB02/GB04


Feature                       Unibody knife-holder

                                         Cost-effective

                                         Easy clamp locking method


Suitable                      Various Papers >>>      kraft paper, silicone paper, releasing  paper, decoration

                                                                                           wallpaper, masking paper, adhesive paper, thick paper

                                                                                           board, corrugated carton paper, sandpaper.

                                         Various Plastic films >>>      flexible laminated films, soft & rigid PVC films, BOPP,

                                                                                                      PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                         Cloth & fabrics >>>      non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                          cloth, medical cloth, label cloth...etc.

                                                   Foams >>>      PSP foams,PE foams..etc

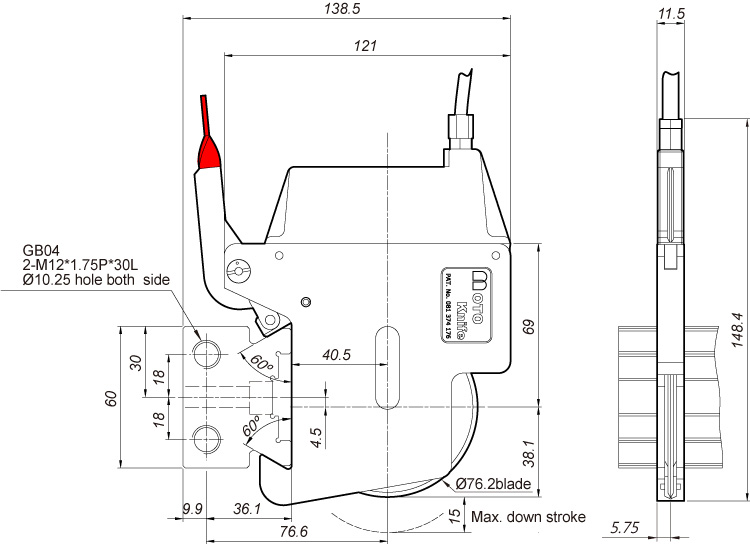

Drawing

MT-B110 easy clamp type pneumatic knife holder

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
