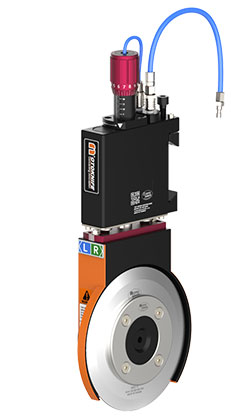

Heavy-duty Pneumatic Shear Knifeholder
MT-A650
Introduce

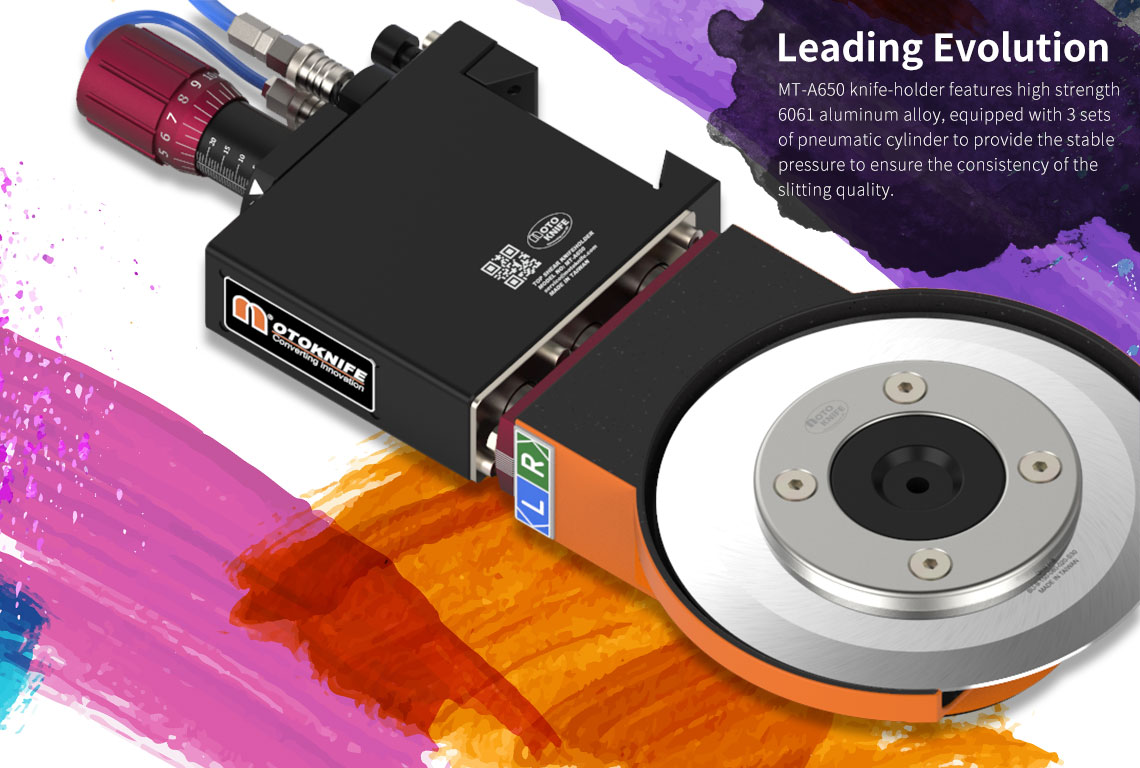

MT-A650 has included the same unique patent t design, three cylinder robust knife-holder, individual down stroke and side stroke valves, self-flow control and accuracy micro depth adjustment as with the MT-A610 to provide easy operation and stability down force pressure when online slitting. With modular integrated bottom knife-holder, the MT-A650 handle cant angle adjustment to adapt different web path direction application, side contact limit to extend blade lifetime and offer outstanding performance. MT-A650 Knife-holder is ideally suited for paper, plastic film, non-woven fibers and others converting industry.
Model MT-A650-BU930
Min. slit width 53mm
Max. slit speed 1000M/min(1)
Down-stroke 0~25mm
Cant angle +/-3 degrees
Side-stroke 0~3mm
Air pressure 3~6/kg/cm²
Blade O.D. Ø150mm
Guide-bar GB01/GB02/GB04
Feature Self flow control
Micro depth adjustment

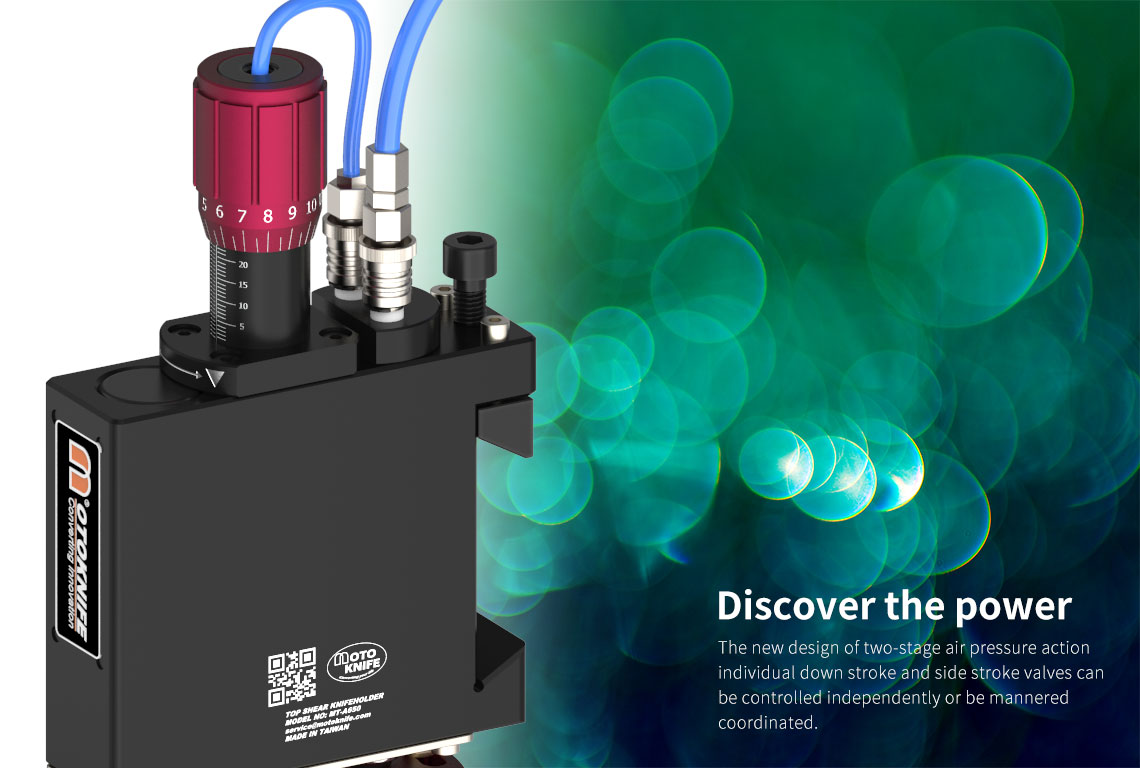

Individual control valve
Cant angle adjustment

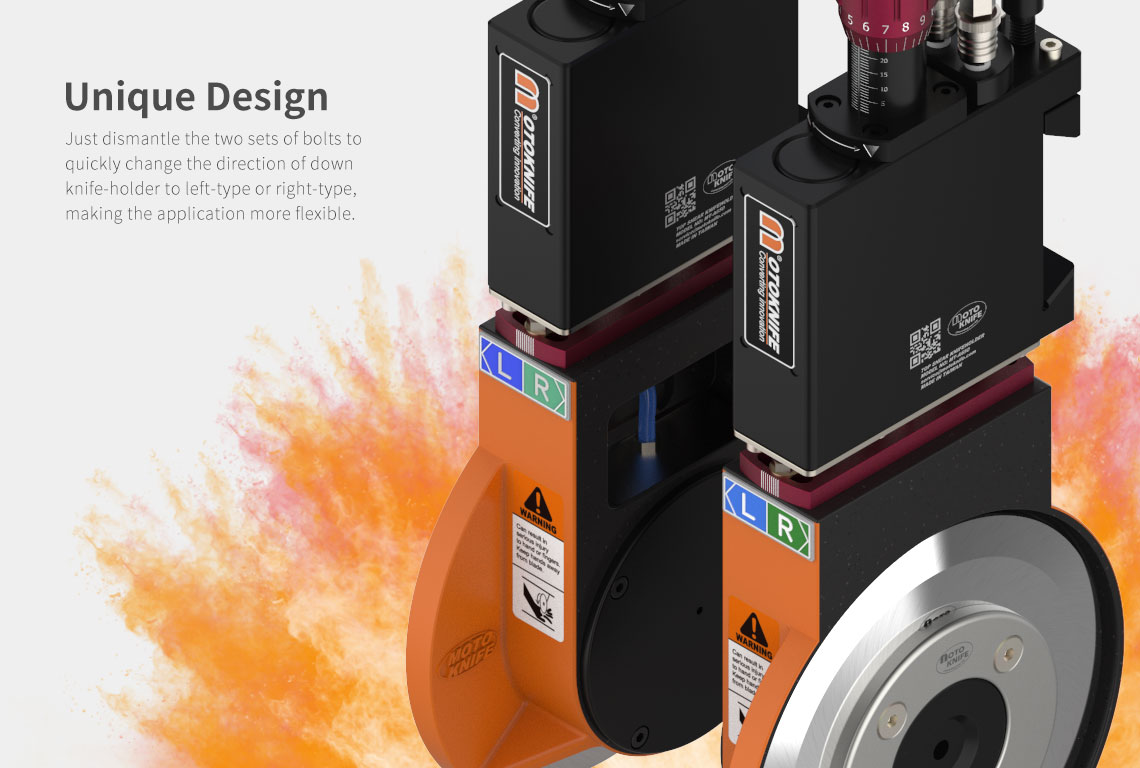

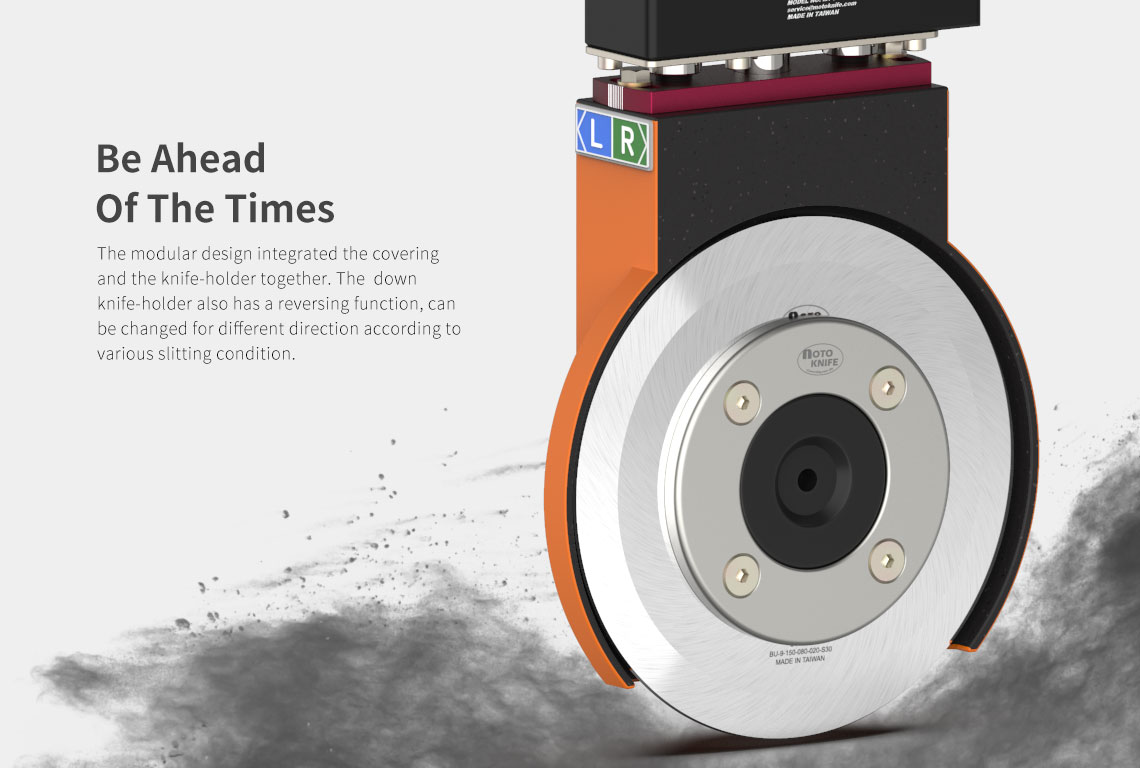

Integrated bottom knifeholder
Patent structure

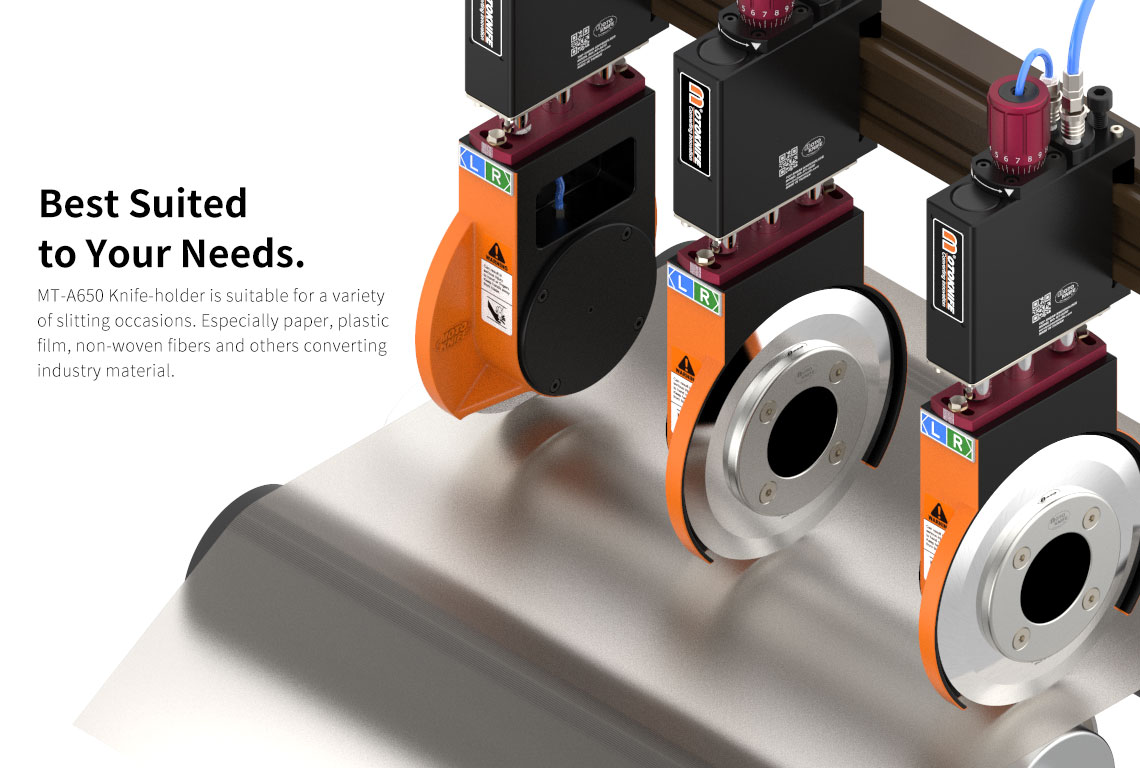

Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration
wallpaper, masking paper.
Various Plastic films >>> flexible laminated films, soft PVC films, BOPP,
PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.
Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh
cloth, medical cloth, label cloth...etc.
Metal films >>> Copper foil, aluminum foil.

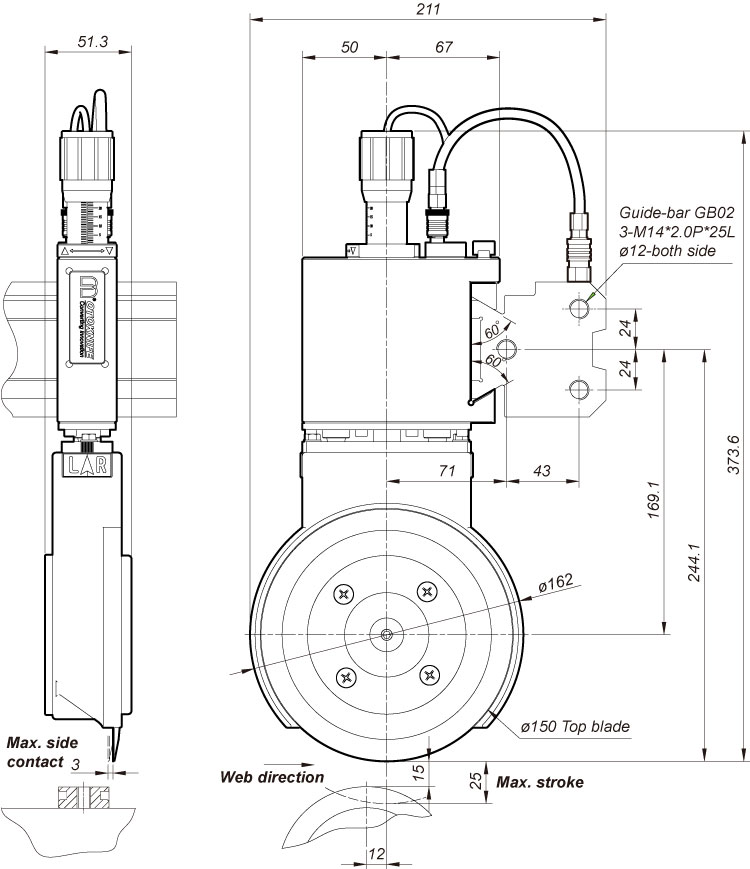

刀組圖面
(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
Recommend
Crush Cut Knives
Precision blade
Each blade will undergo special precision grinding and control of each blade's roundness to reach +/-0.005mm before the product leaves our factory. The precision blade with fine grinding hardness backing roller and through A310/A310H half-cut knife holder depth adjusting allows you to cut as depth as you want.
Guide-bar
GB05
GB05 is the new generation of the Guide-Bar series. It has the advantage of the linear guideway groove, side-fixed installation, lightweight, and fast delivery. Besides, there are two lengths of guide-bar to choose from, 2000mm and 2400mm.
Crush Cut Knives
130T Unibody Zigzag knife
The 130 teeth zigzag blade is made of tool steel (SKD-11) imported from Europe, processed by well heat treatment to increase its mechanical properties such as toughness and wear resistance. The blade tip is precisely ground to maintain an equal tooth pitch and peak, the slitting edge will generate the zigzag notch, to facilitate tearing along the notch. The zigzag blade is suitable for easy-tear applications such as medical tapes.
Bearing
5.0mm/6.2mm Bearing
Bearings for score blade, there are two different model , 697ZZ is for 5.0mm thickness and 17mm inner diameter score blade ; 6900RS is for 6.2mm thickness and 22mm inner diameter.
