Heavy-duty Half-Cut Pneumatic Knifeholder

MT-A310H

Introduce

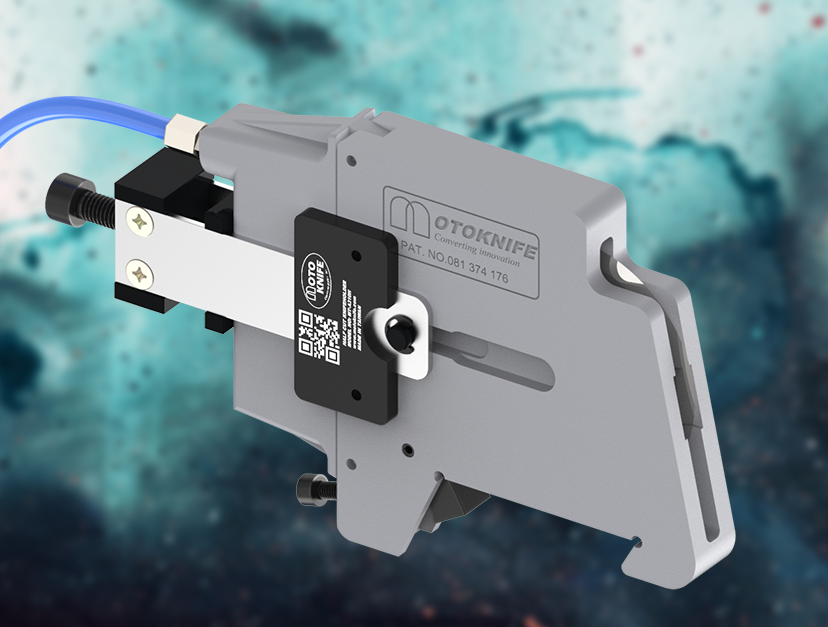

MT-A310H is your ideal half-cut knife-holder choice for heavy material. Thanks to its robust design, it guarantees a steady slitting downforce than MT-A310 knife-holder in heavier and thicker material range of its versatility. With its depth adjustment of 14mm stroke and precision blade roundness of up to +/-0.005mm, it adapts to slit only the upper layer cut off/non-cut through at lower layer and also reduces blade wear out for life-time extending. The MT-A310H is ideally suited to a wide range of heavier material applications like medical adhesive tapes, foam tapes, and protection film.

Information Specification Download

MT-A310H half cut pneumatic knife holder

Model MT-A310H-BSK30

MT-A310H half cut pneumatic knife holder

Min. slit width 30mm

Max. slit speed 100M/min(1)

Down-stroke 0~14mm

Air Pressure 3~6/kg/cm²

Blade O.D. Ø76.2mm

Guide-bar GB02/GB04/GB05

Feature Rigidity knife holder

Precision depth adjustment

Half-cut effective

Equipped high precision blade(+/-0.005mm)

Blade lifetime extended

Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration

wallpaper, masking paper, adhesive paper, thick paper

board, corrugated carton paper, sandpaper.

Various Plastic films >>> flexible laminated films, soft & rigid PVC films, BOPP,

PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh

cloth, medical cloth, label cloth...etc.

Foams >>> PSP foams,PE foams..etc

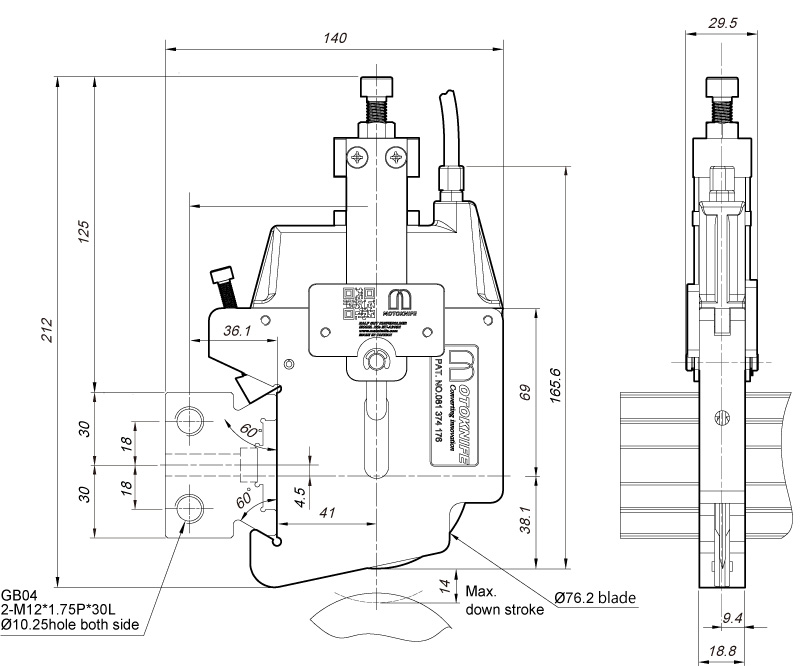

Drawing

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.

Catalog MT-A310H English version

Catalog MT-A310H Chinese version

Back to list

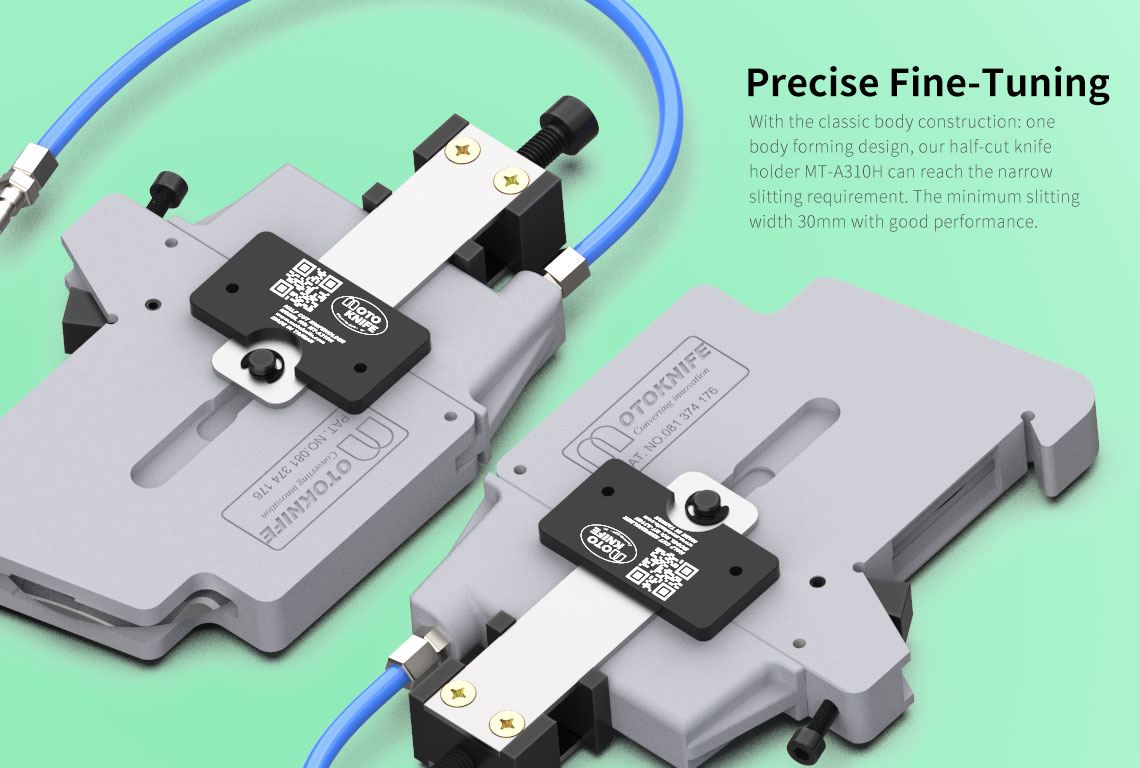

Precise Fine-Tuning

With the classic body construction: one body forming design, our half-cut knife holder MT-A310H can reach the narrow slitting requirement. The minimum slitting width 30mm with good performance.

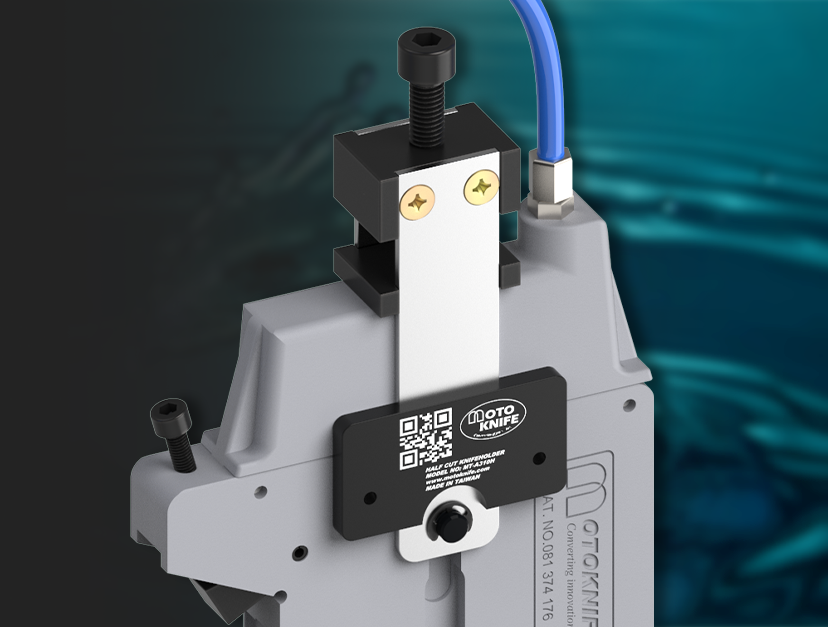

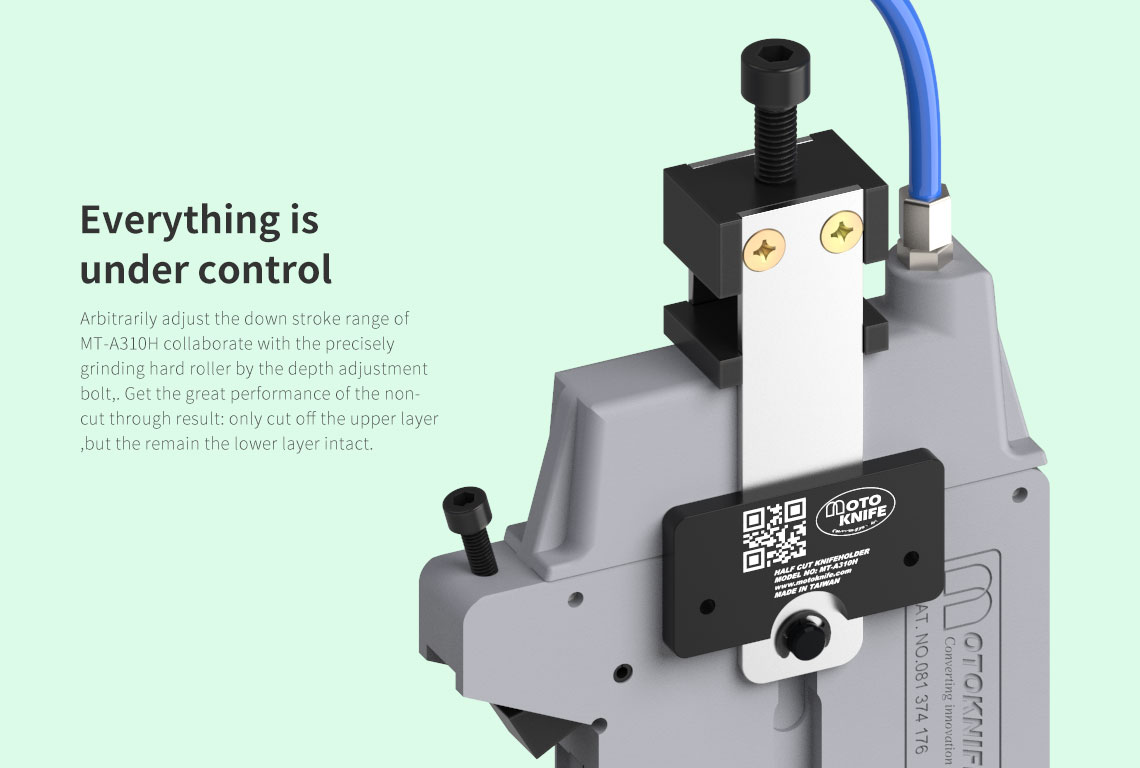

Everything is

under control

Arbitrarily adjust the down stroke range of MT-A310H collaborate with the precisely grinding hard roller by the depth adjustment bolt,. Get the great performance of the non-cut through result: only cut off the upper layer, but the remain the lower layer intact.

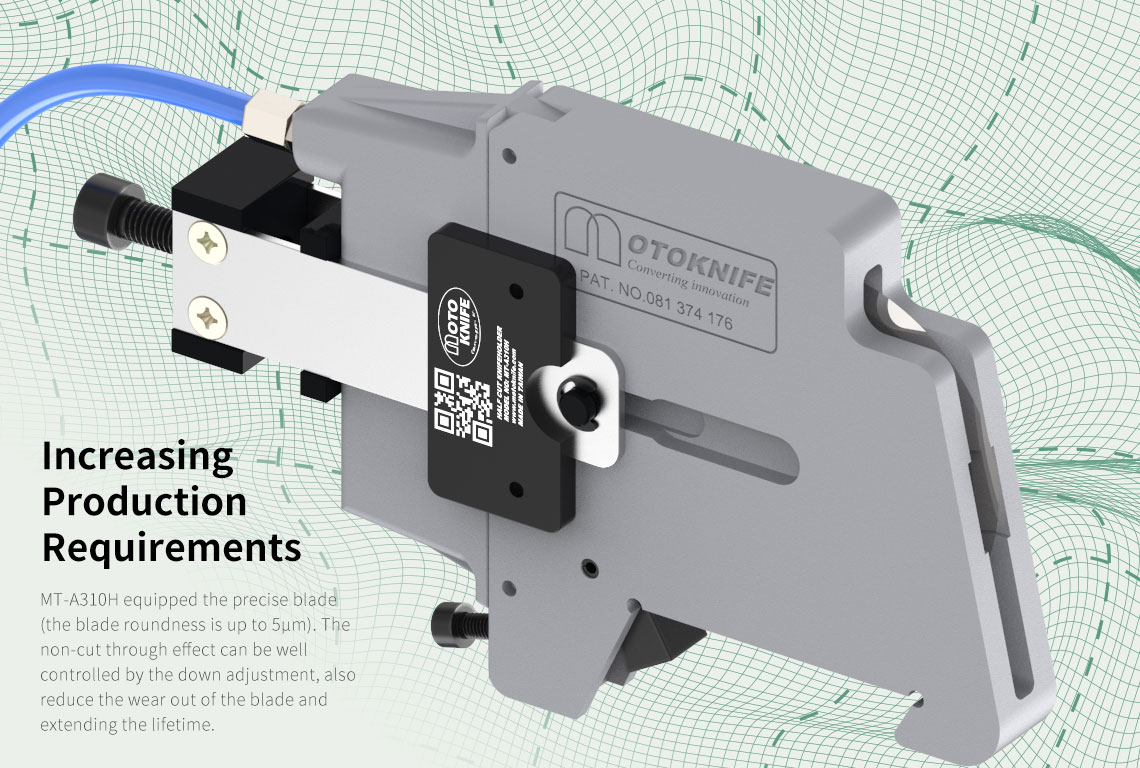

Increasing

Production

Requirements

MT-A310H equipped the precise blade (the blade roundness is up to 5μm). The non-cut through effect can be well controlled by the down adjustment, also reduce the wear out of the blade and extending the lifetime.

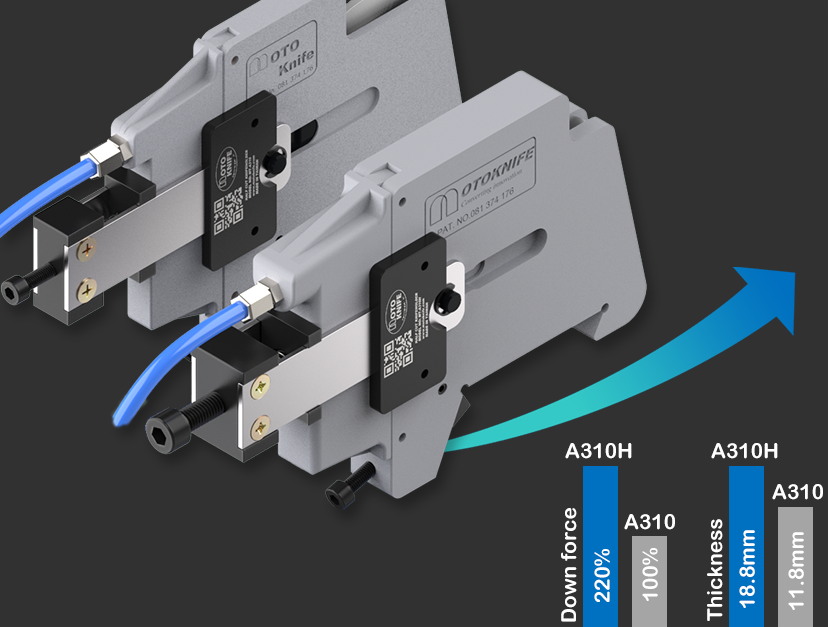

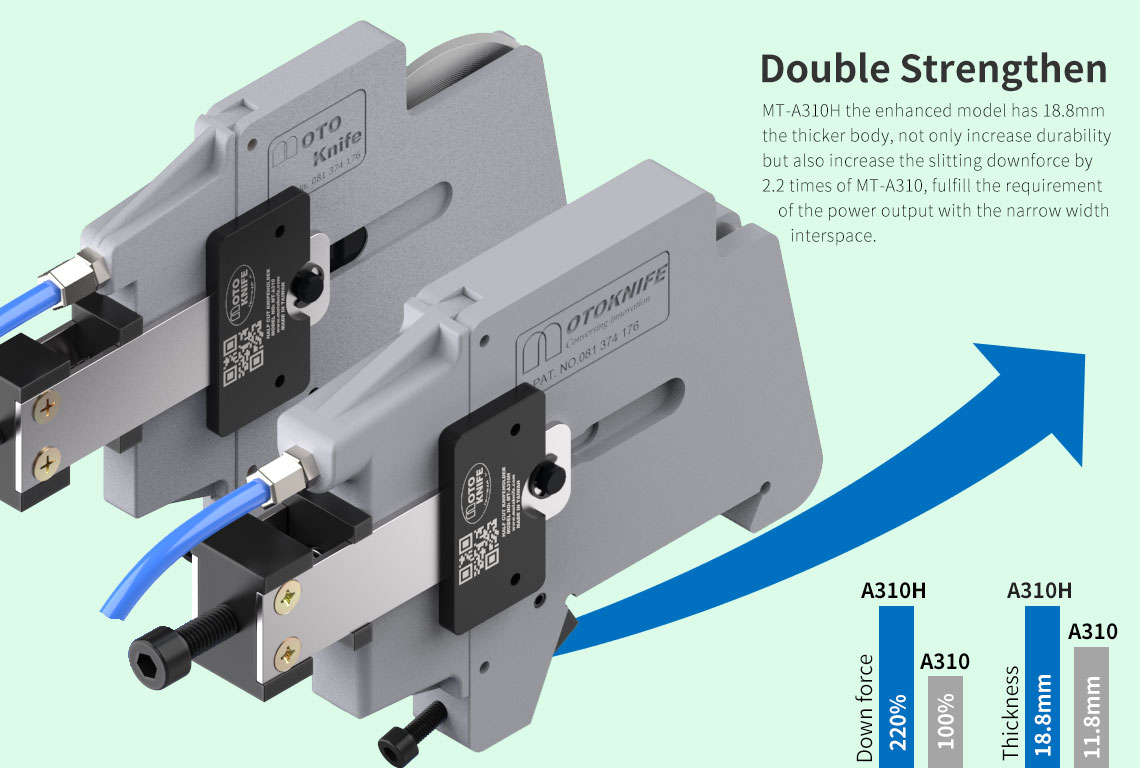

Double Strengthen

MT-A310H the enhanced model has 18.8mm the thicker body, not only increase durability but also increase the slitting downforce by

2.2 times of MT-A310, fulfill the requirement of the power output with the narrow width interspace.

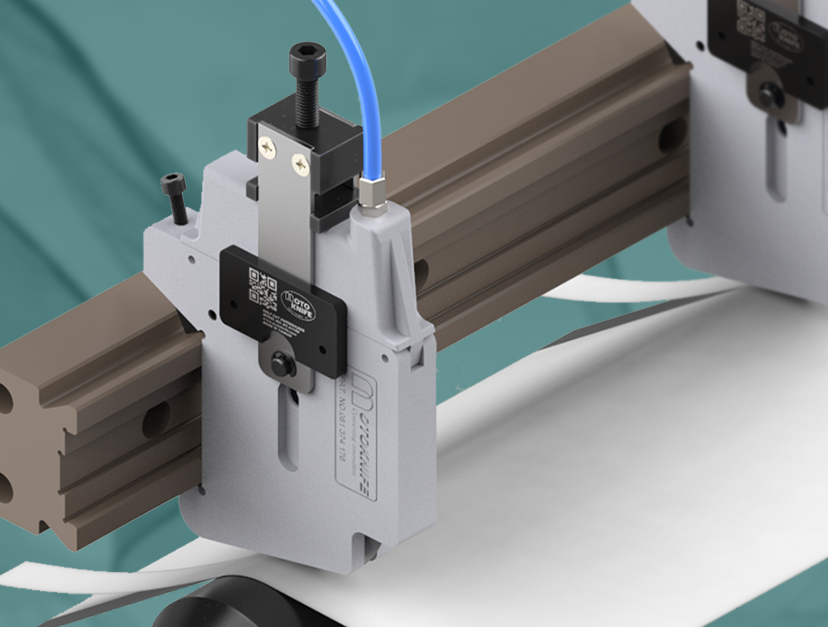

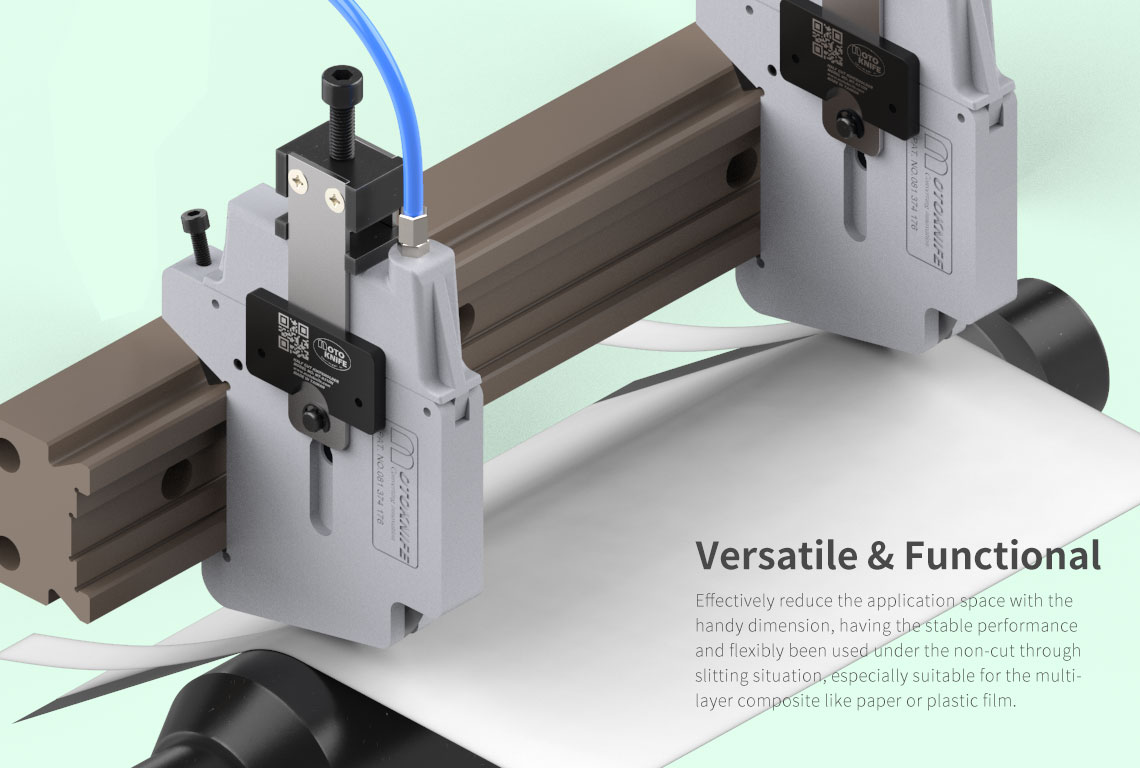

Versatile & Functional

Effectively reduce the application space with the handy dimension, having the stable performance and flexibly been used under the non-cut through slitting situation, especially suitable for the multi-layer composite like paper or plastic film.

檔案下載

Catalog MT-A310H English version

Catalog MT-A310H Chinese version
