Slim Pneumatic Shear Knifeholder

Slim Pneumatic Shear Knifeholder

MT-A425

Introduce

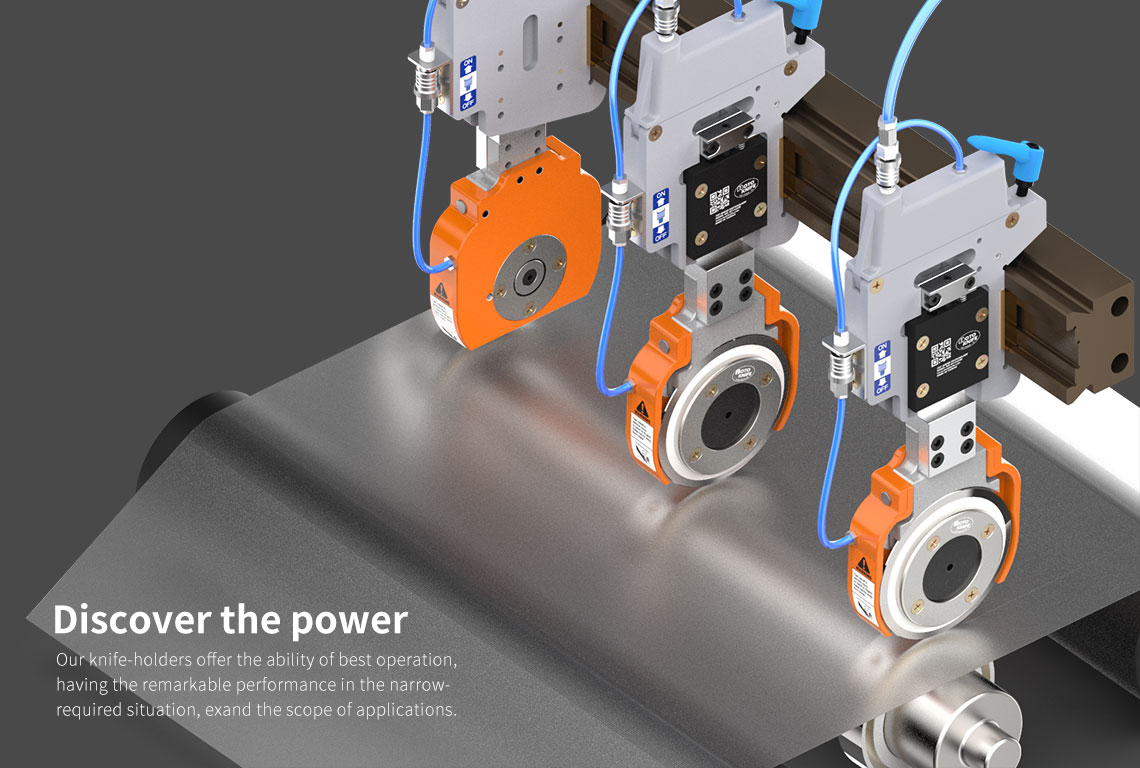

MT-A425 features a compact design and costeffective and in the shear knife-holder category. It is specialized in narrow slitting application, which minimum slit width up to 28mm. The new swing design provides stable side contact force to getting a better slitting effect. It also equips two individual control valves of down stroke and side contact, not only independent control each valve but also continuous action by one valve, more convenient and flexible for online operation. The modularized component design has improved quality and reduce costs to offer a new knife-holder option. It is optimally suited to light web slitting tasks with under 0.3mm thickness material like paper, plastic film, non-woven fibers and others.

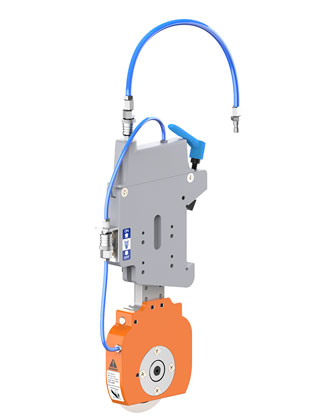

MT-A425 Slim Shear Type Pneumatic Shear Knife holder



MT-A425 Slim Shear Type Pneumatic Shear Knife holder



MT-A425 Slim Shear Type Pneumatic Shear Knife holder



MT-A425 Slim Shear Type Pneumatic Shear Knife holder



MT-A425 Slim Shear Type Pneumatic Shear Knife holder



MT-A425 Slim Shear Type Pneumatic Shear Knife holder

Model                      MT-A425R-BU940                                          MT-A425L-BU940

               MT-A425 Slim type shear pneumatic knife holderMT-A425 Slim type shear pneumatic knife holder

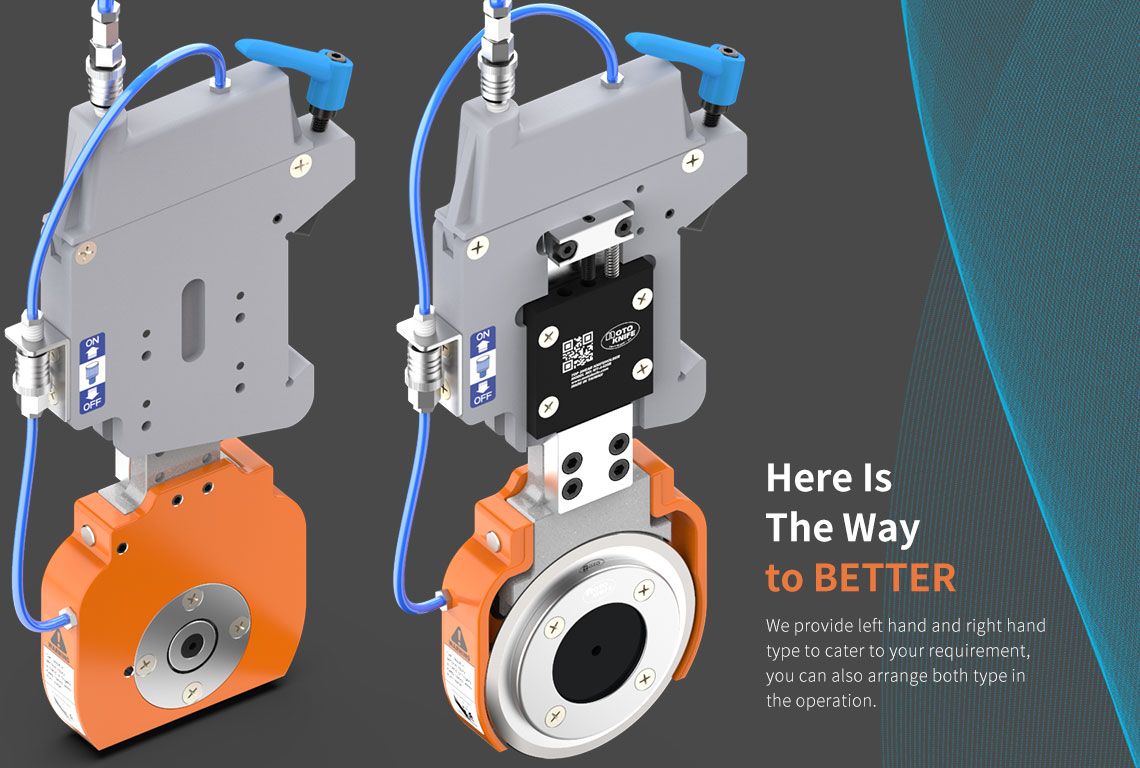

Knife holder              Right hand(R)                                                 Left hand(L)

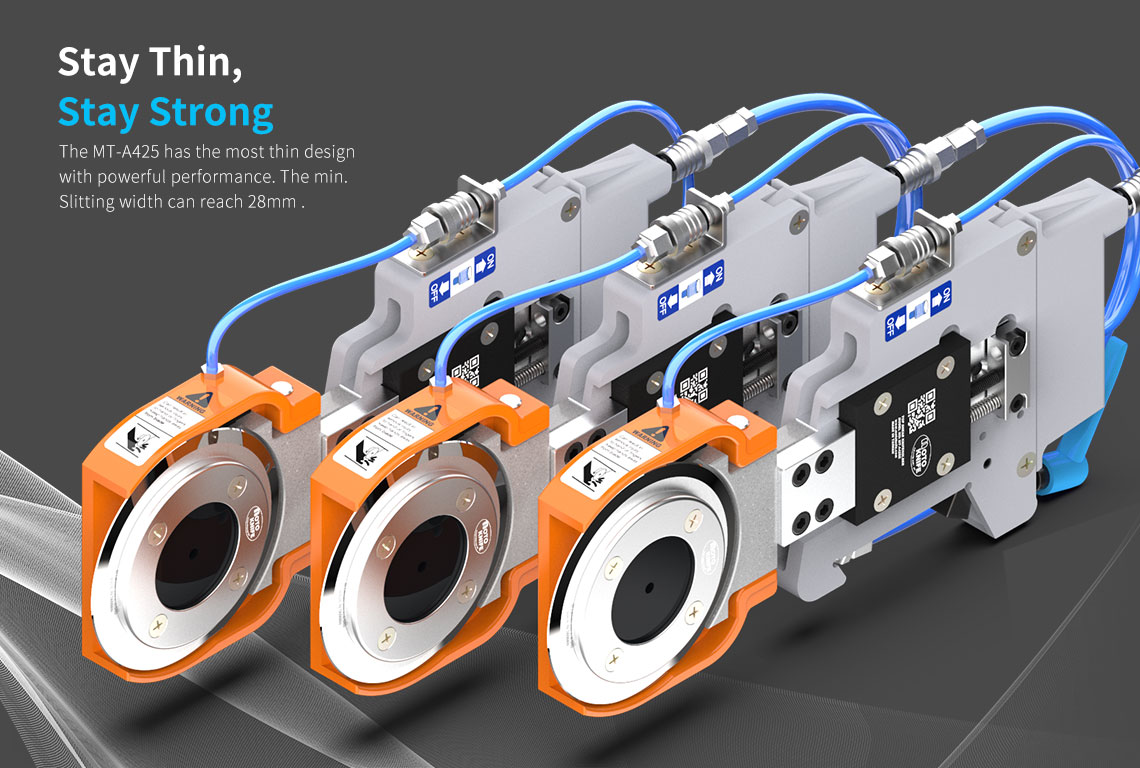

Min. slit width          28mm


Max. slit speed        400M/min(1)


Down-stroke            0~15mm

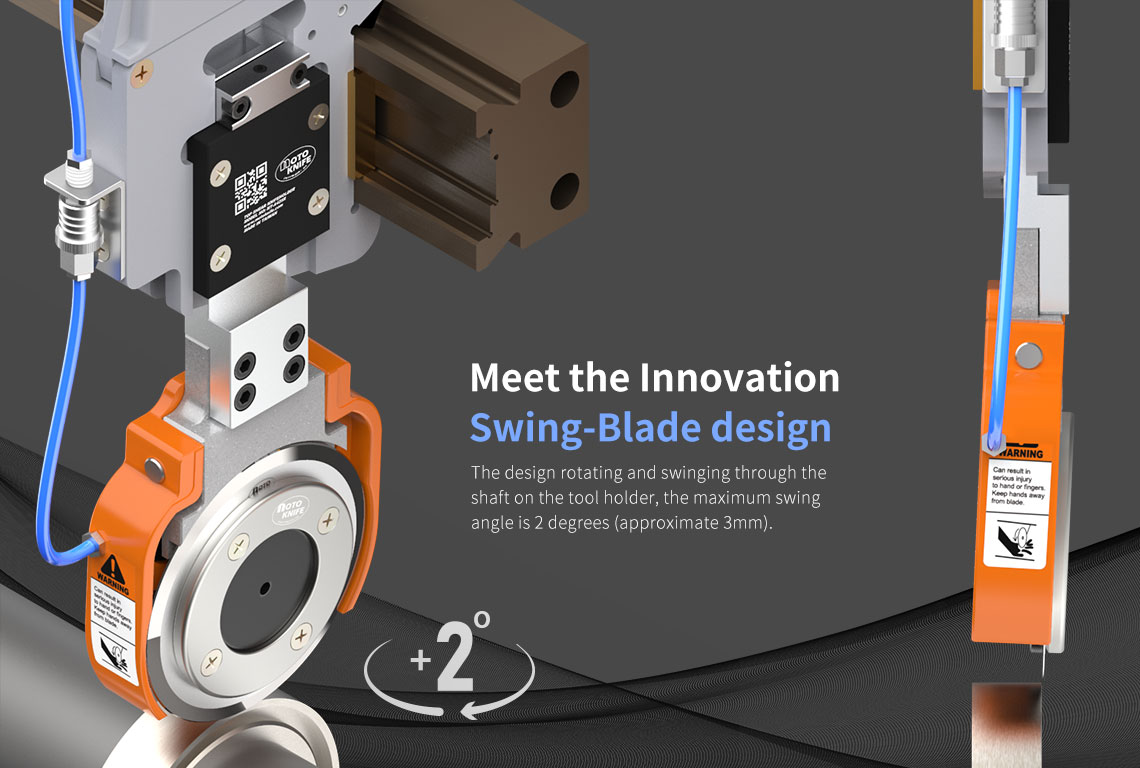

Swing angle               0~2 degrees


Air pressure             3~6/kg/cm²


Blade O.D.                 Ø90mm


Guide-bar                 GB01/GB02/GB04


Feature                    Modularized design

                                      Swing side contact

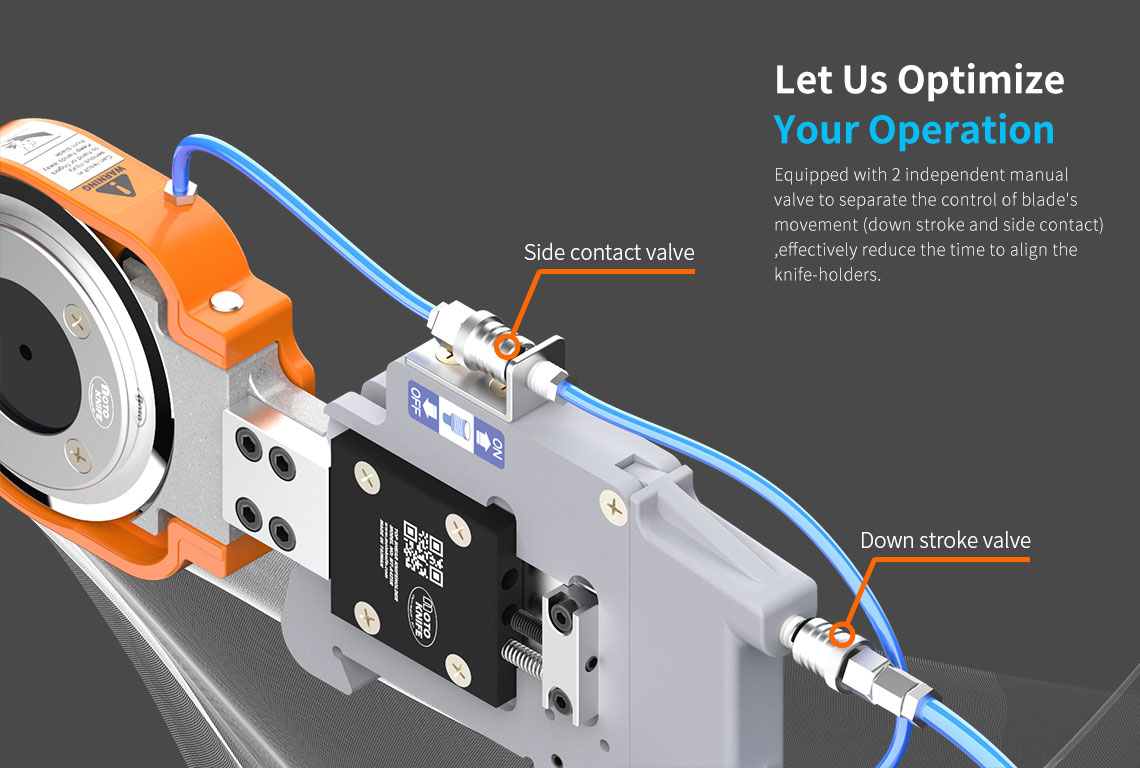

                                      Individual control valve

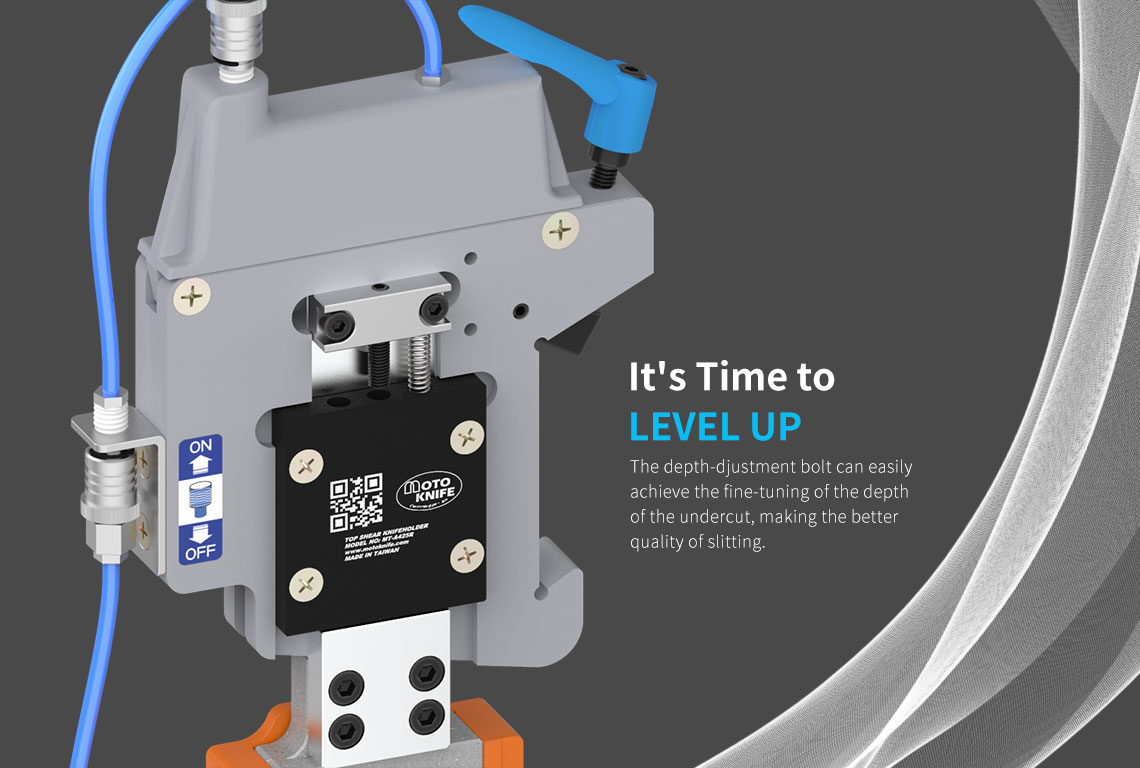

                                      Depth adjustment

                                      Patent structure


Suitable                  Various Papers >>>     kraft paper, silicone paper, releasing  paper, decoration

                                                                                      wallpaper, masking paper.

                                     Various Plastic films >>>     flexible laminated films, soft PVC films, BOPP,

                                                                                                PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                     Cloth & fabrics >>>     non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                     cloth, medical cloth, label cloth...etc.

                                     Metal films >>>     Copper foil, aluminum foil.

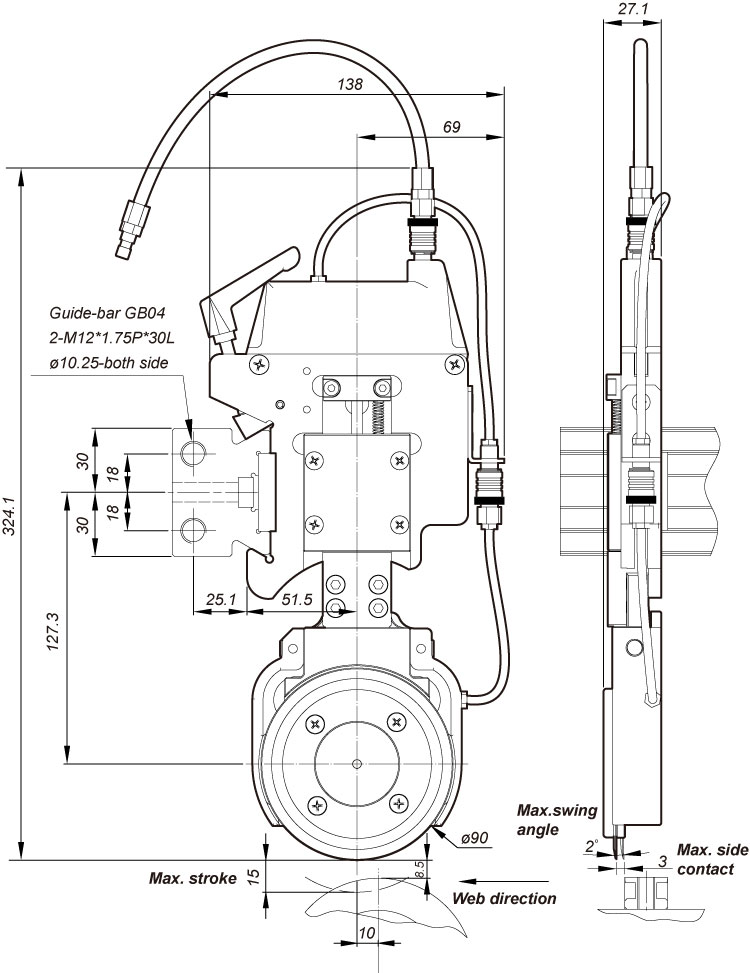

Drawing

MT-A425 slim type pneumatic shear knife holder

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
