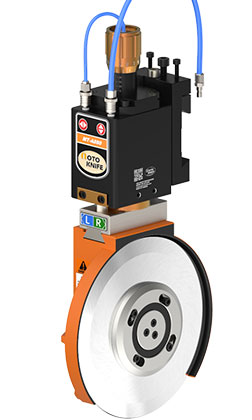

Heavy-duty Pneumatic Shear Knifeholder
MT-A880
Introduce

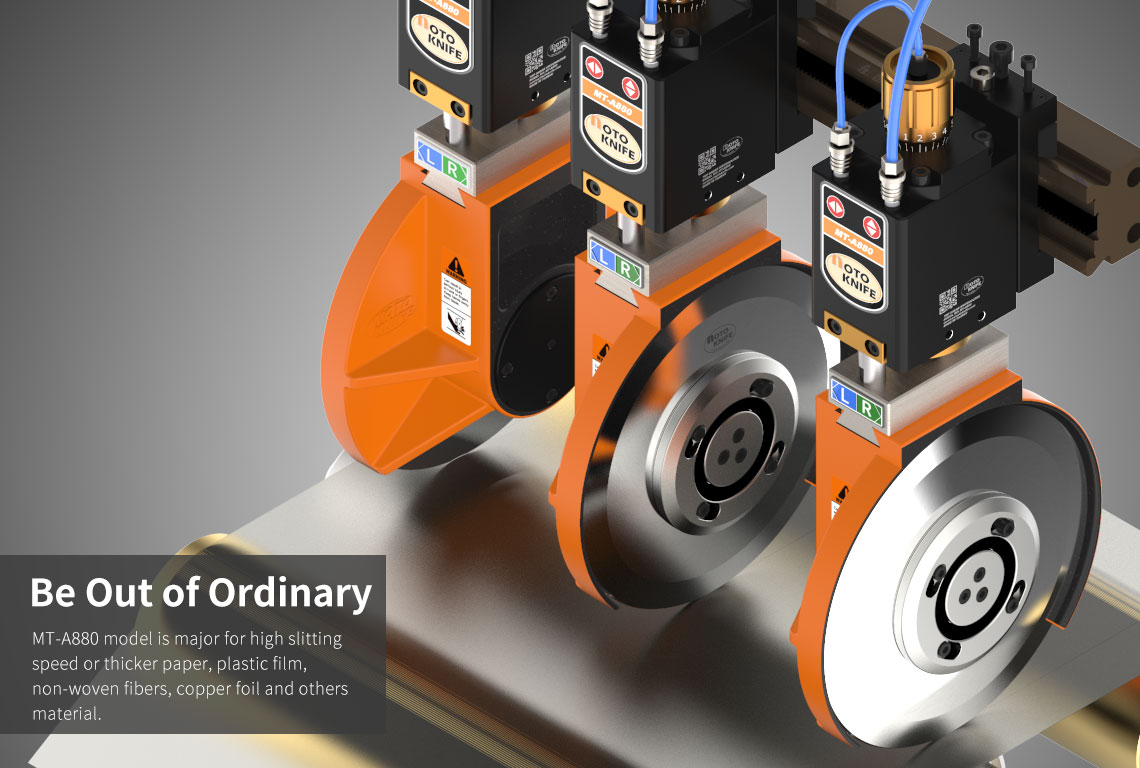

MT-A880 is our versatile heavyduty knife-holder that is suitable for a wide range of shear slitting application. It combines extremely durable knife-holder body and 200mm top blade handle maximum slitting speed up to 2000M/min. Ideal design of micro depth adjustment, individual stroke valve, self-flow control, cant angle adjust, reversible blade cartridge, mounting bracket, are a key benefit to reduce setting time and deliver convenient operation. MT-A880 provides a highly reliable slitting performance major application is for thicker, high slitting speed paper, plastic film, non-woven fibers and others.
Model MT-A880-BU930
Min. slit width 80mm
Max. slit speed 2000M/min(1)
Down-stroke 0~25mm
Cant angle ±1.7degrees
Side-stroke 0~3mm
Air pressure 3~6/kg/cm²

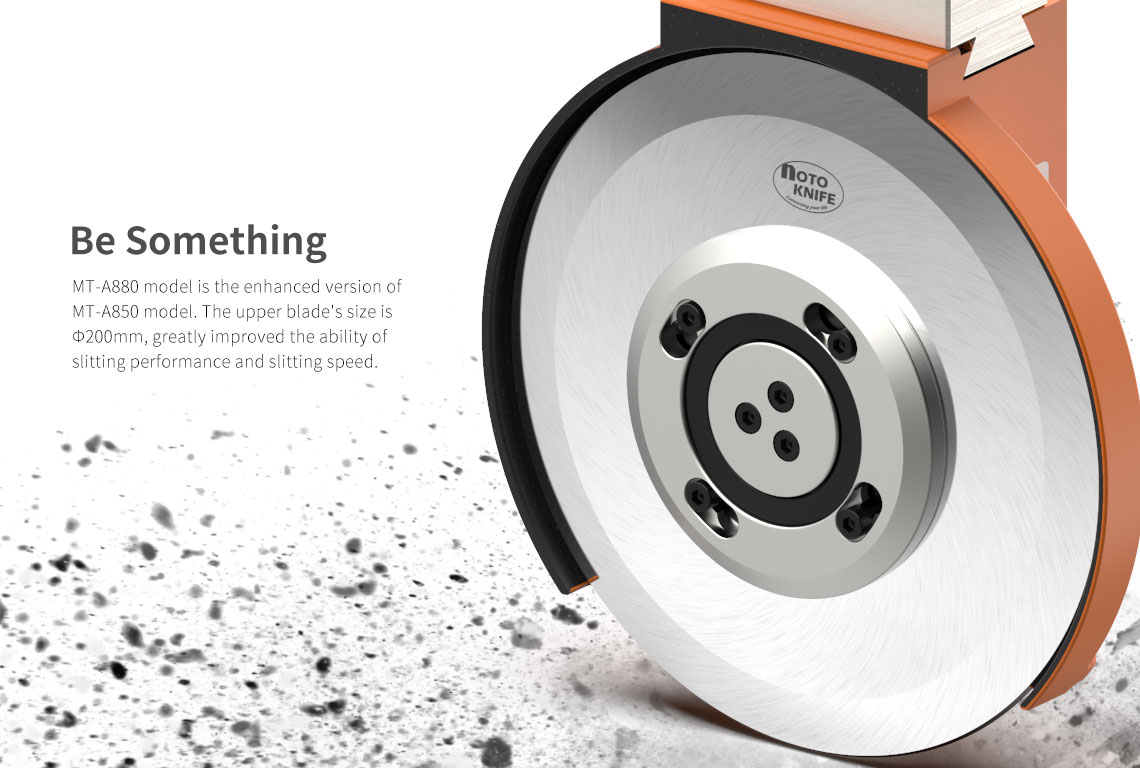

Blade O.D. Ø200mm

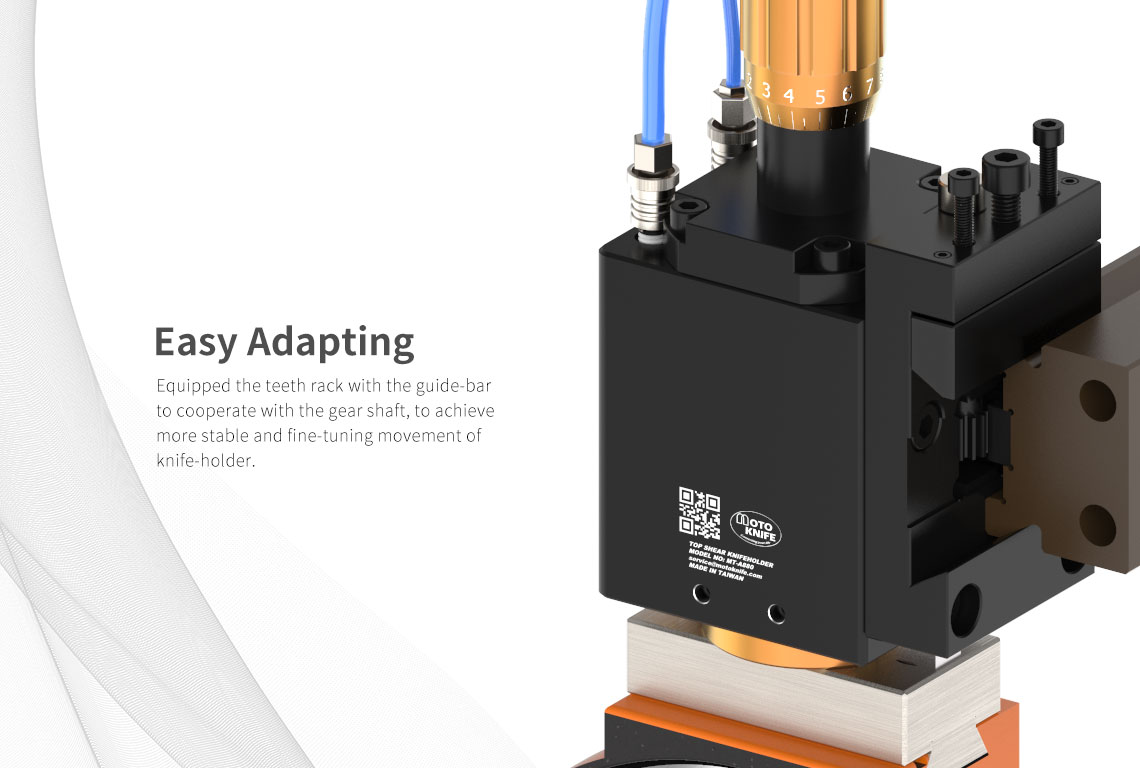

Guide-bar GB03
Feature Self flow control
Micro depth adjustment

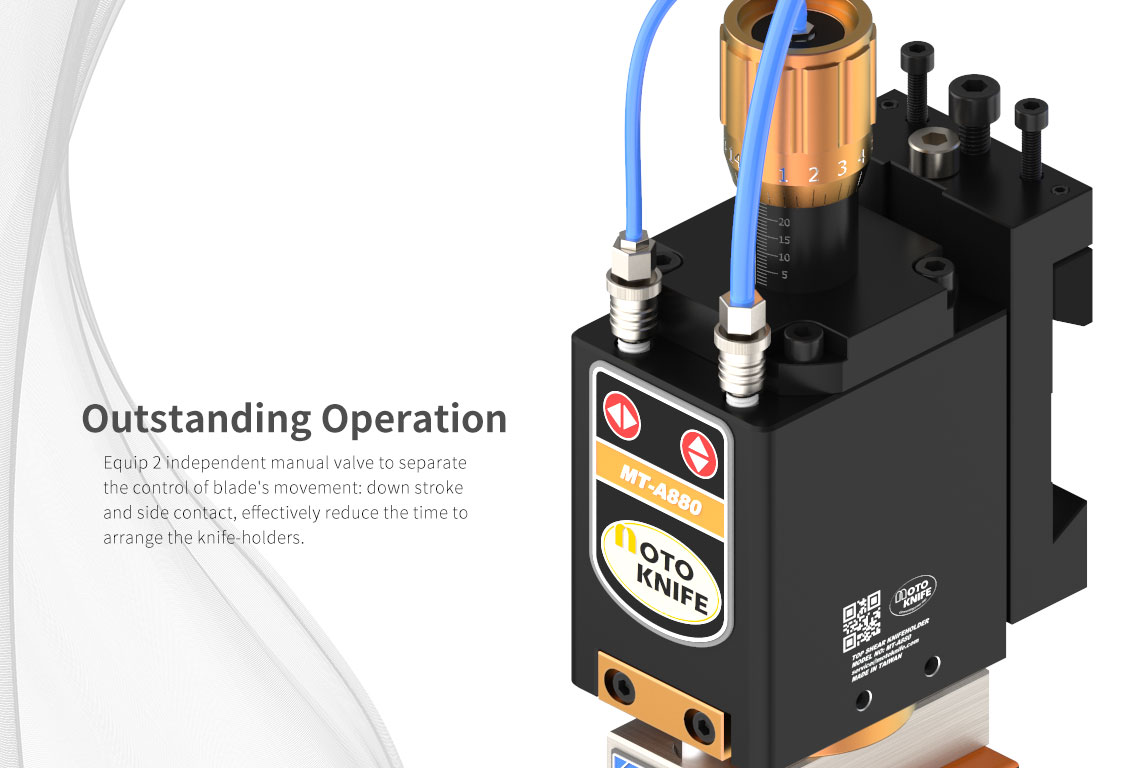

Individual control valve

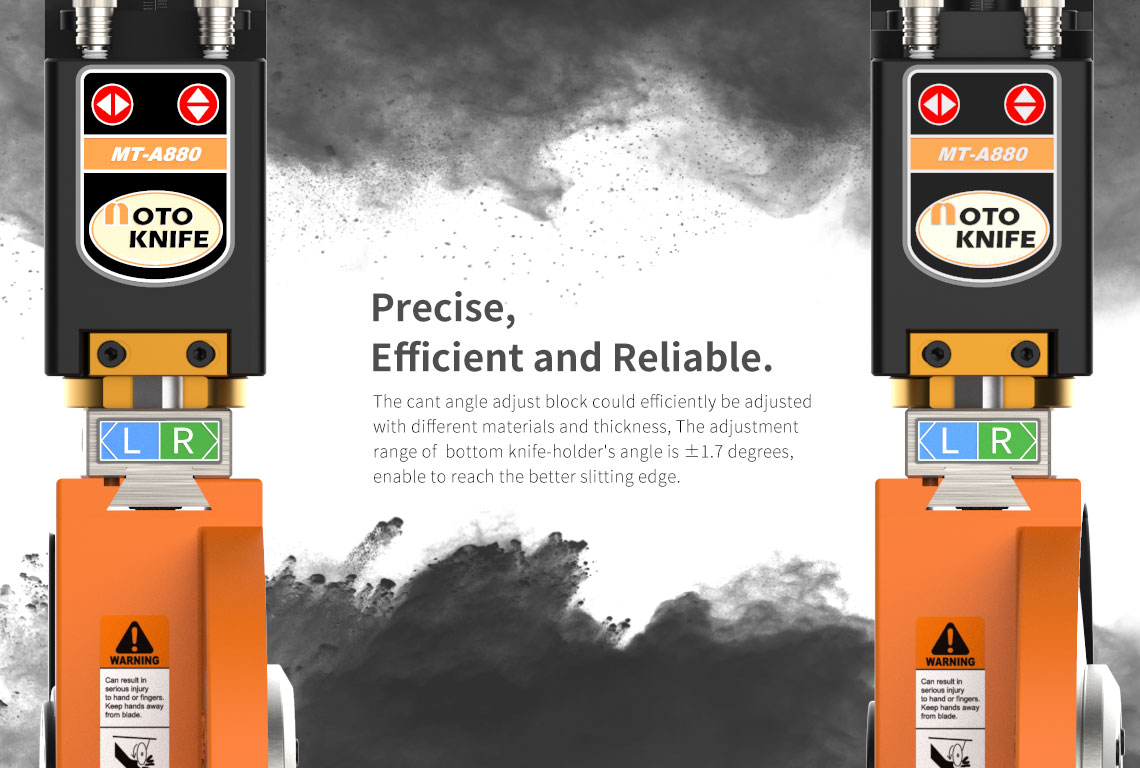

Cant angle adjustment

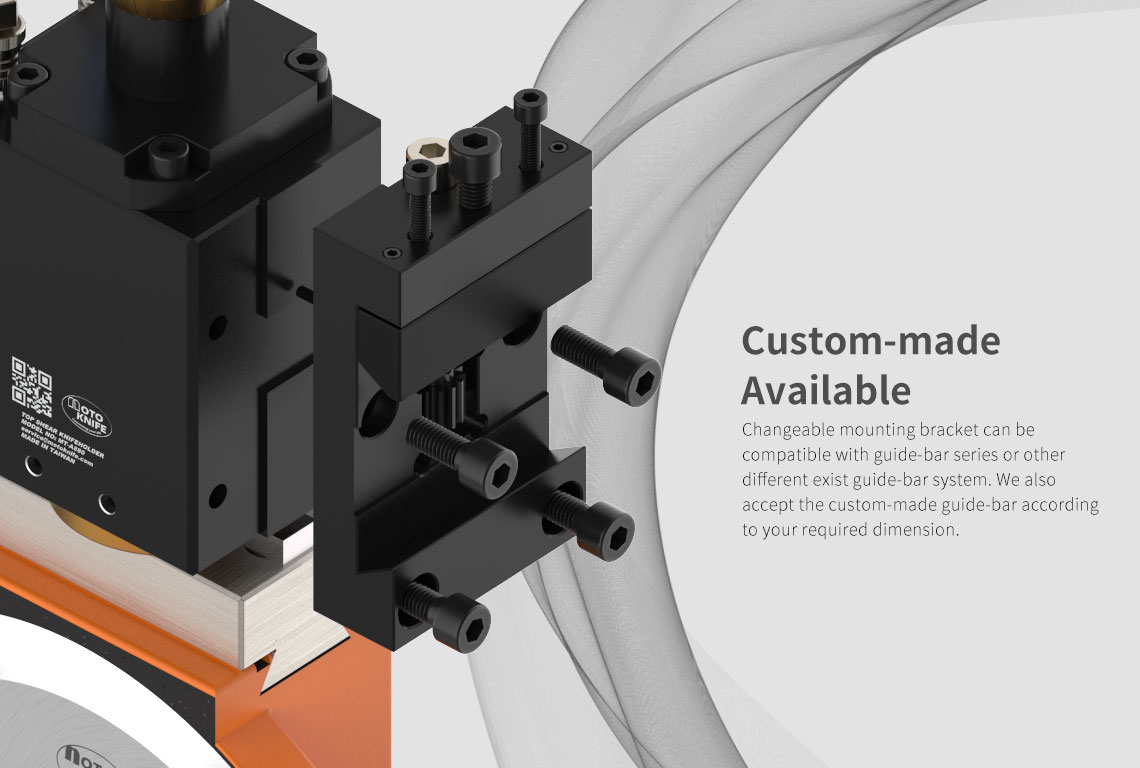

Changeable mounting bracket

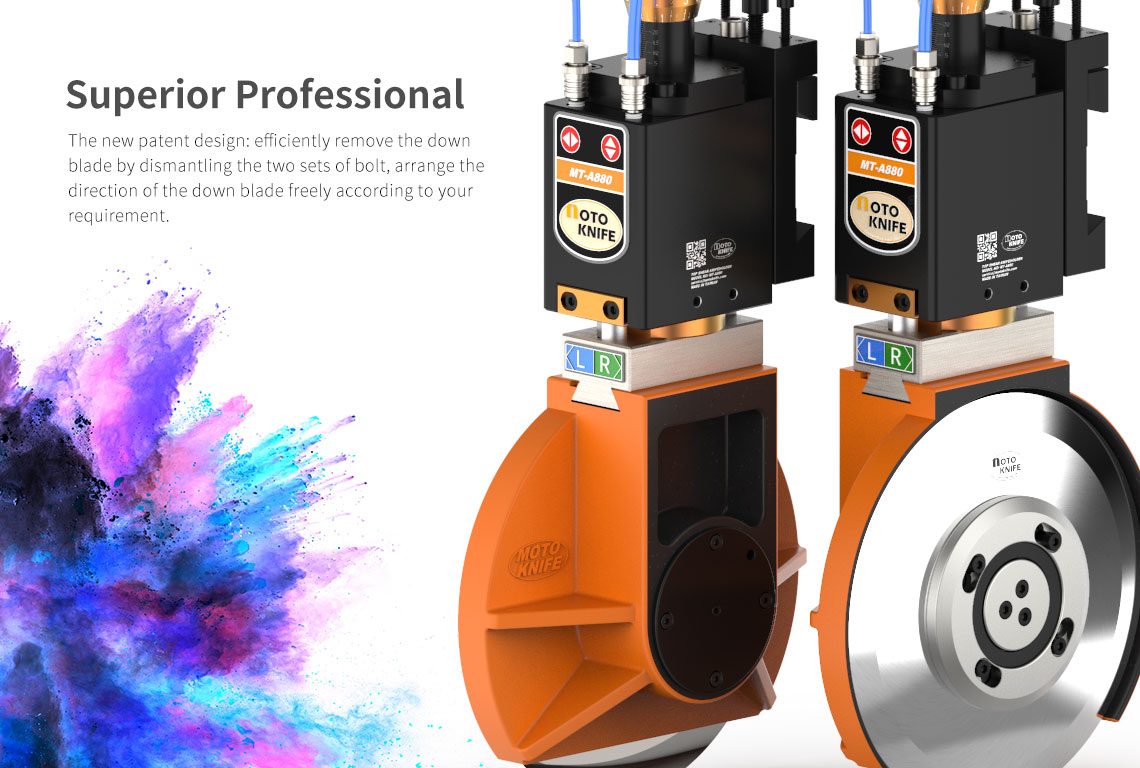

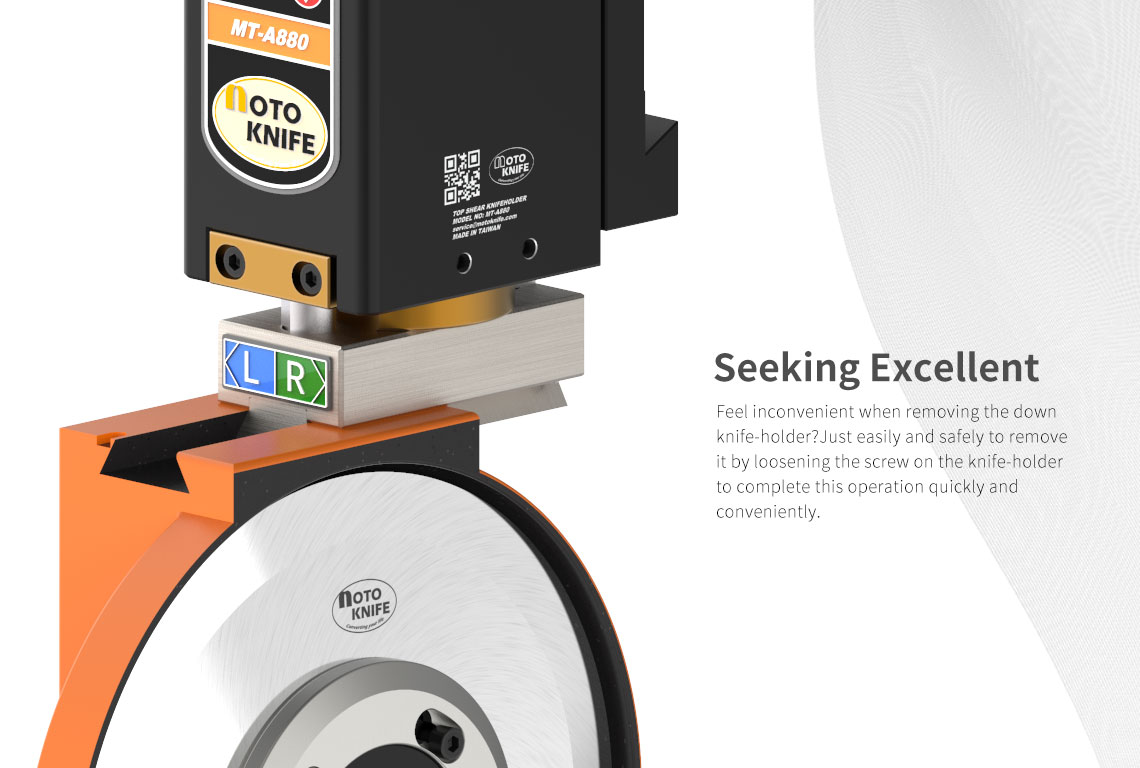

Changeable blade cartridge
Suitable Various Papers >>> kraft paper, silicone paper, releasing paper, decoration
wallpaper, masking paper.
Various Plastic films >>> flexible laminated films, soft PVC films, BOPP,
PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.
Cloth & fabrics >>> non-woven cloth, synthetic leather, natural cotton, mesh
cloth, medical cloth, label cloth...etc.
Metal films >>> Copper foil, aluminum foil.

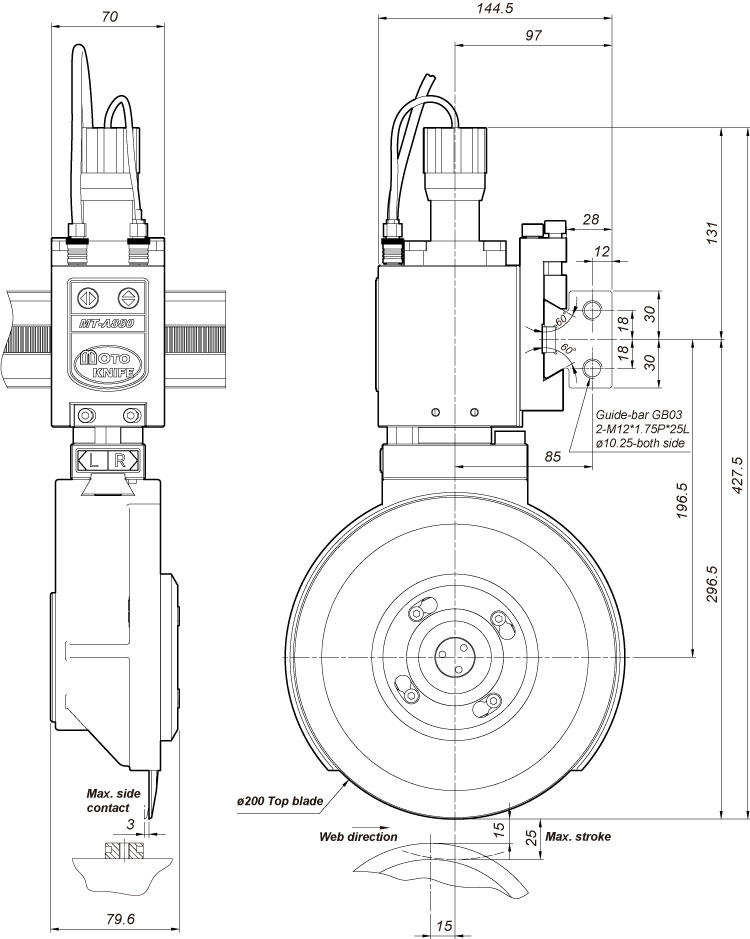

刀組圖面
(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
