Pneumatic Shear Knifeholder

Pneumatic Shear Knifeholder

MT-A410

Introduce

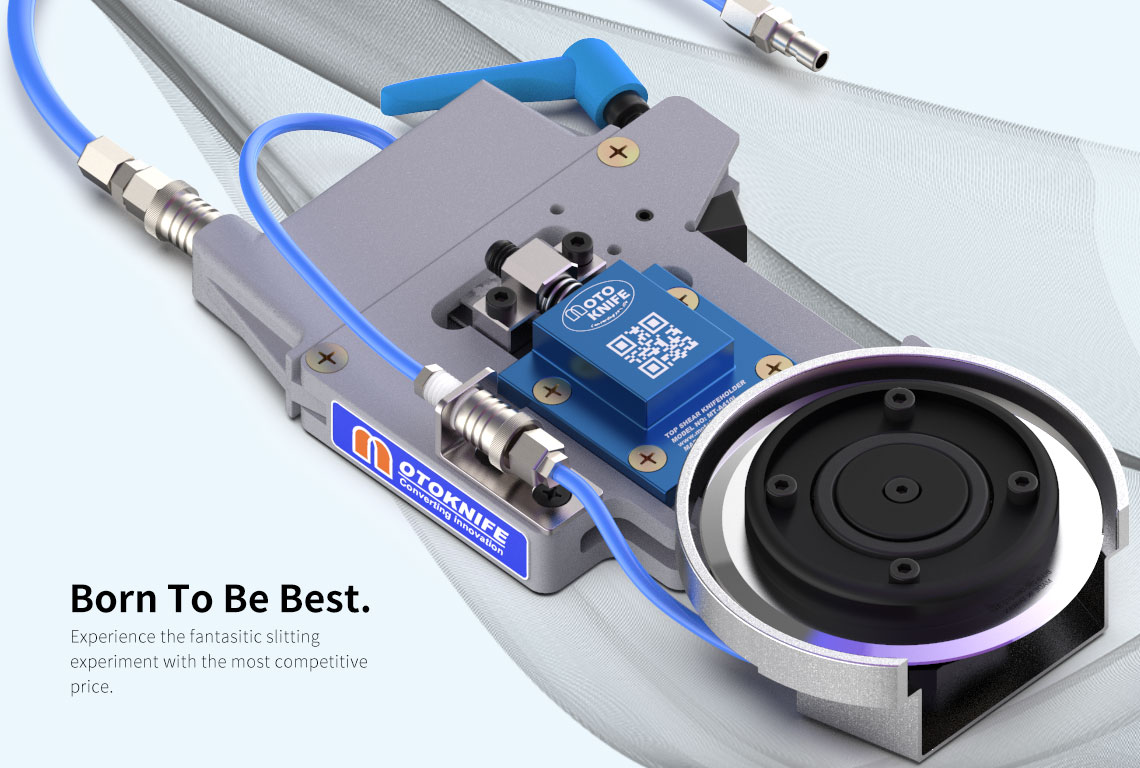

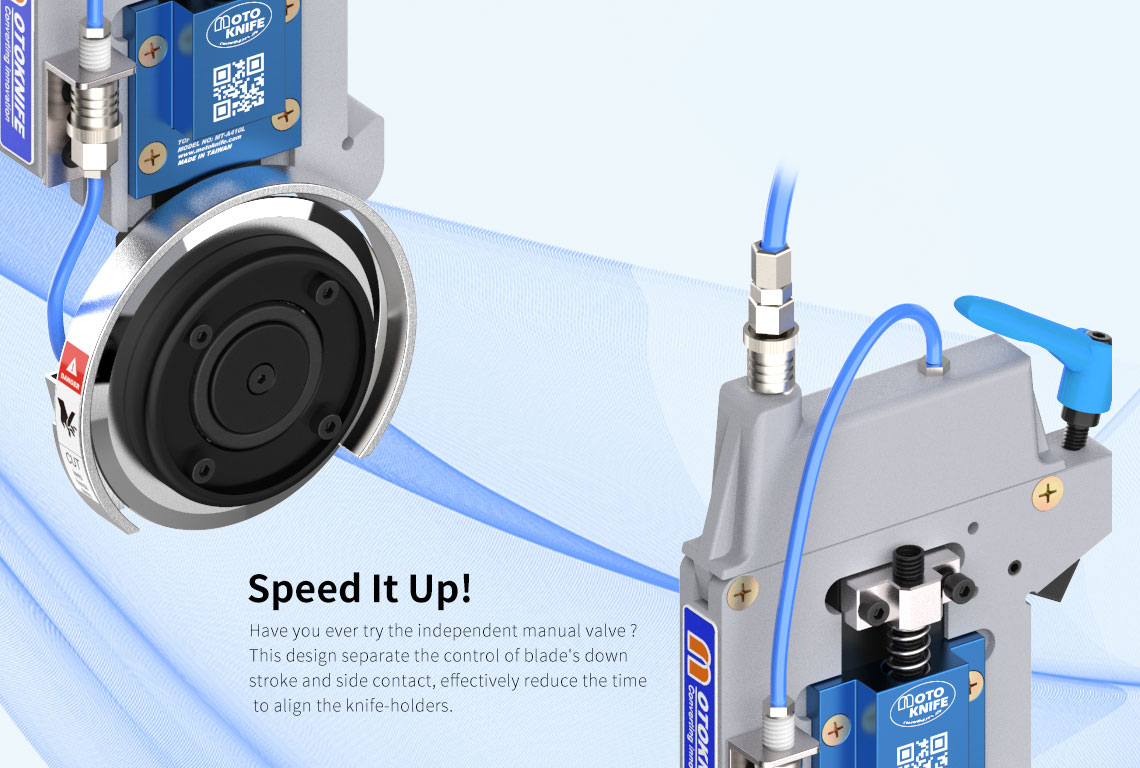

MT-A410 is the popular shear knife-holder in many slitting applications. It equipped 90mm top blade for general shear slitting propose and characterized by two individual control valves of downstroke and side contact, not only independent control each valve but also continuous automatic action by one valve, more convenient and flexible for online operation. Besides the depth adjustment screw provide adjustable downstroke to control overlap modularized component design has improved quality and reduce costs to offer a new knife-holder option. MT-A410 offers a wide range of slitting material including plastic, paper, copper foil…etc., thickness under 0.4mm and slit width within 45mm application.

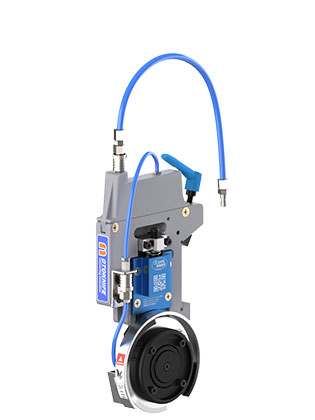

MT-A410 Top Shear Type Pneumatic Shear Knife holder



MT-A410 Top Shear Type Pneumatic Shear Knife holder



MT-A410 Top Shear Type Pneumatic Shear Knife holder



MT-A410 Top Shear Type Pneumatic Shear Knife holder



MT-A410 Top Shear Type Pneumatic Shear Knife holder



MT-A410 Top Shear Type Pneumatic Shear Knife holder

Model                    MT-A410R-BU940                                     MT-A410L-BU940

             MT-A410 shear pneumatic knife holderMT-A410 shear pneumatic knife holder

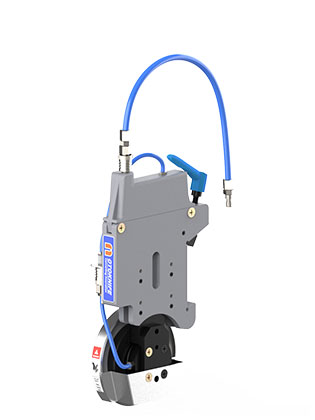

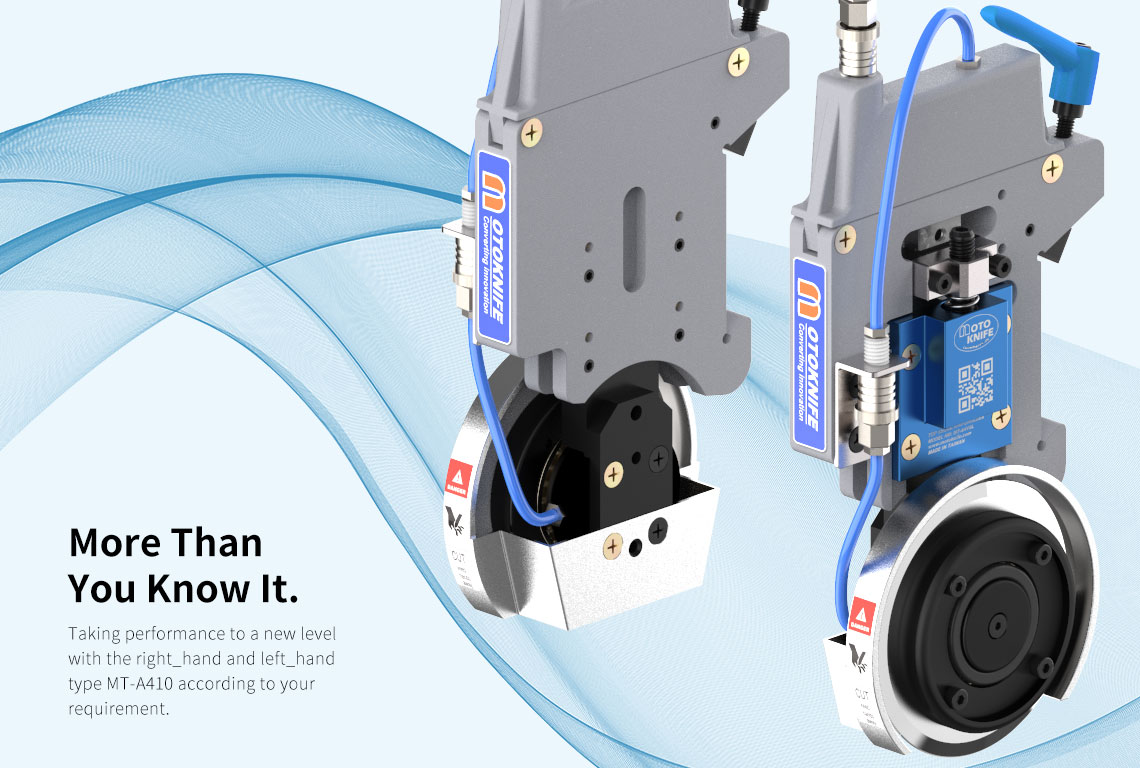

Knife holder            Right hand(R)                                          Left hand(L)


Min. slit width          45mm


Max. slit speed        400M/min(1)


Down-stroke            0~15mm


Side-stroke                0~3mm


Air pressure             3~6/kg/cm²


Blade O.D.                 Ø90mm


Guide-bar                 GB01/GB02/GB04


Feature                      Modularized design

                                        Self flow control

                                        Individual control valve

                                        Depth adjustment

                                        Patent structure

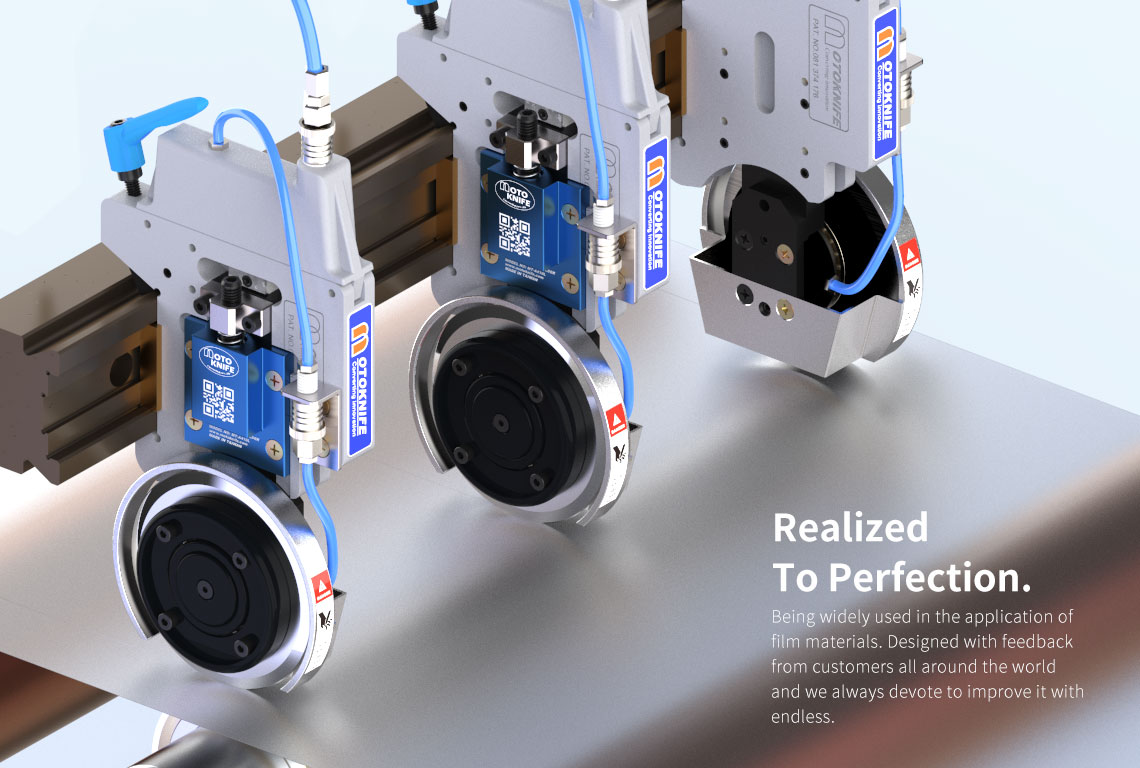

Suitable                  Various Papers >>>      kraft paper, silicone paper, releasing  paper, decoration

                                                                                       wallpaper, masking paper.

                                    Various Plastic films >>>      flexible laminated films, soft PVC films, BOPP,

                                                                                                PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                    Cloth & fabrics >>>      non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                     cloth, medical cloth, label cloth...etc.

                                    Metal films >>>      Copper foil, aluminum foil.

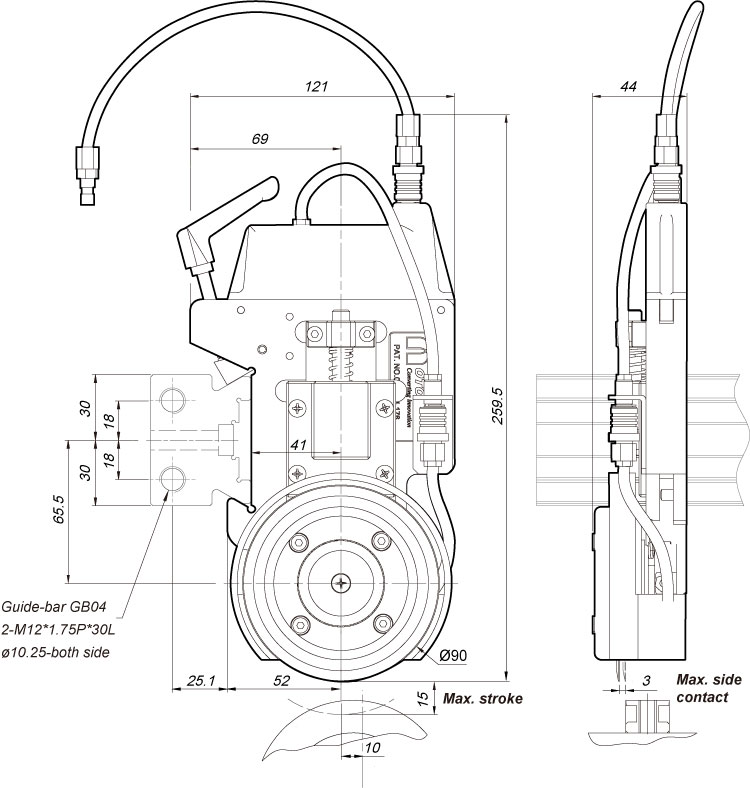

Drawing

MT-A410 pneumatic shear knife holder

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
