Steel body Pneumatic Knifeholder

Steel body Pneumatic Knifeholder

MT-A160

Introduce

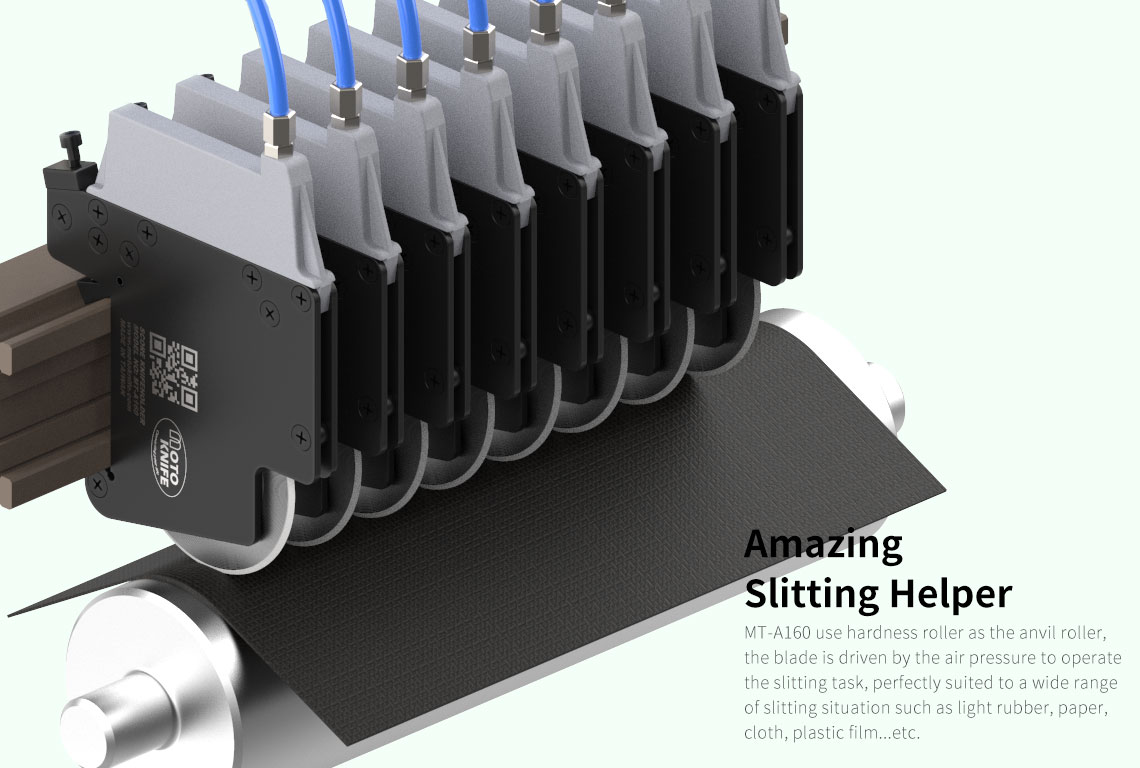

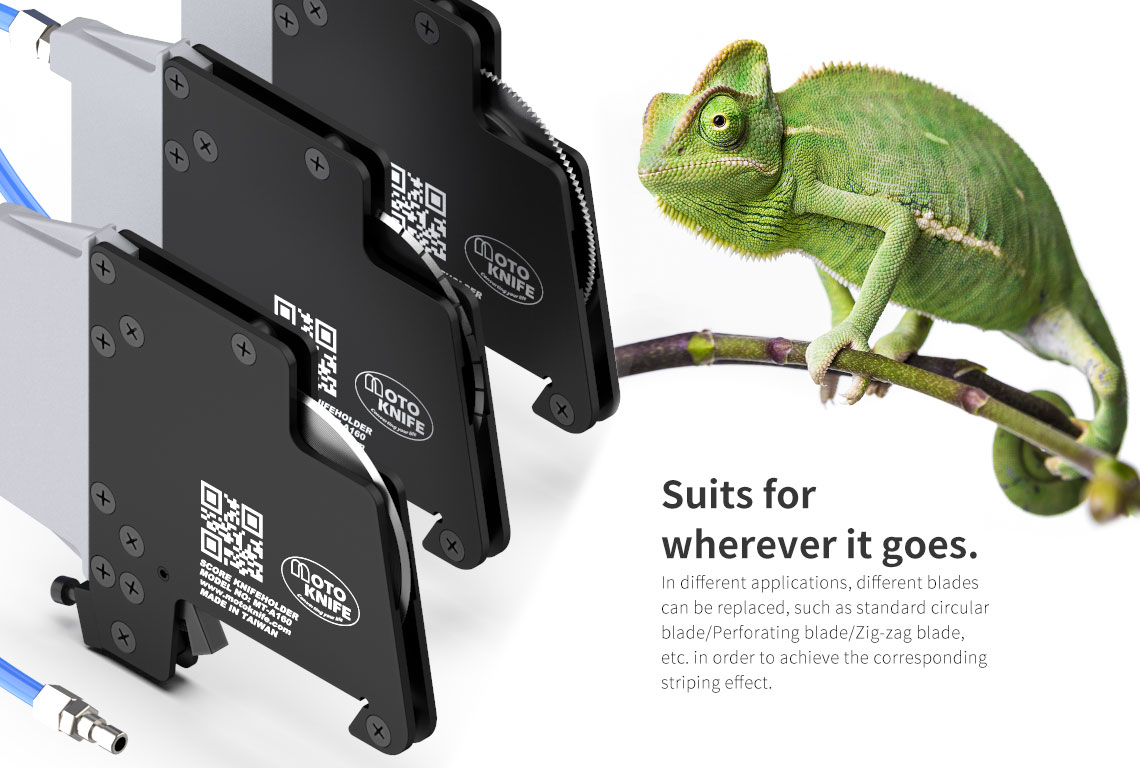

MT-A160 features a compact dimension design, steel body frame and versatile application in the score knife-holder category. It is optimally suited to under 11mm width narrow slitting work. Thanks to its CNC machining steel body frame, the excellent rigidity knife-holder not only offers outstanding performance in various material slitting jobs but also enables lifetime extending. The adaptive knife-holder can be installed with guide-bar GB01/GB02/GB04 accessories and replace different types of blades for multipurpose applications. MT-A160 is perfectly suited to a wide range of slitting tasks such as light rubber, paper, cloth, plastic film...etc.

MT-A160 Steel Body Type Pneumatic knife holder



MT-A160 Steel Body Type Pneumatic knife holder



MT-A160 Steel Body Type Pneumatic knife holder



MT-A160 Steel Body Type Pneumatic knife holder



MT-A160 Steel Body Type Pneumatic knife holder



MT-A160 Steel Body Type Pneumatic knife holder

Model                    MT-A160-BSK30

                             MT-A160


Min. slit width          11mm


Max. slit speed         100M/min(1)


Down-stroke             0~15mm


Air Pressure              3~6/kg/cm²


Blade O.D.                  Ø76.2mm


Guide-bar                  GB01/GB02/GB04


Feature                       Rigidity knife-holder

                                         Steel body design

                                         Cost-effective

                                         Screw type fix method


Suitable

                                    Various Papers >>>     kraft paper, silicone paper, releasing  paper, decoration

                                                                                     wallpaper, masking paper, adhesive paper, thick paper

                                                                                    board, corrugated carton paper, sandpaper.

                                    Various Plastic films >>>      flexible laminated films, soft & rigid PVC films,BOPP,

                                                                                                 PET, PE, PS, LDPE, PLA, SBS, various adhesive tape...etc.

                                    Cloth & fabrics >>>     non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                   cloth, medical cloth, label cloth...etc.

                                             Foams >>>     PSP foams,PE foams..etc

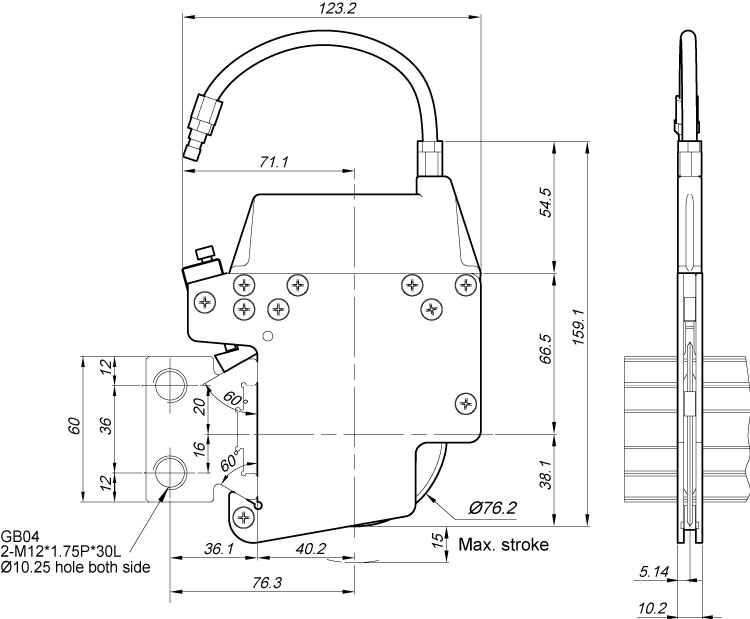

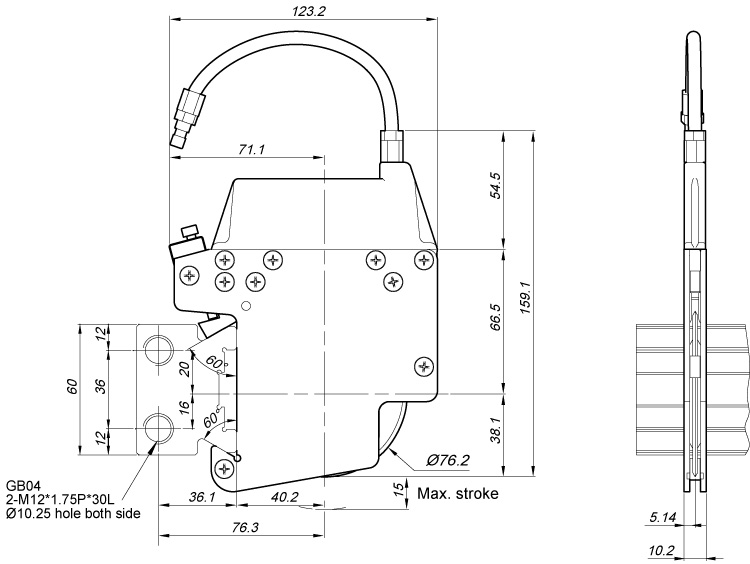

Drawing

MT-A160-BSK30

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
