Rugged Pneumatic Knifeholder

Rugged Pneumatic Knifeholder

MT-A140

Introduce

MT-A140 Rugged type knife-holder is designed and optimized primarily for heavy thickness material slitting application. With its strong modular and thinness knife-holder that minimum slitting width only 19mm both satisfied narrow width and heavy slitting conditions. Exceptional rigidity capabilities make it can be accepted 8kg/cm2 air pressure and provide stable down force to perform heavy thickness slitting job. Same as other crush knife-holder family, it can meet guide-bar GB01/GB02/GB04 accessories and replace different types of blade for multipurpose application. The MT-A140 rugged knife-holder design make for high performance in a wide range of application as heavy rubber, paper, cloth, plastic film...etc..

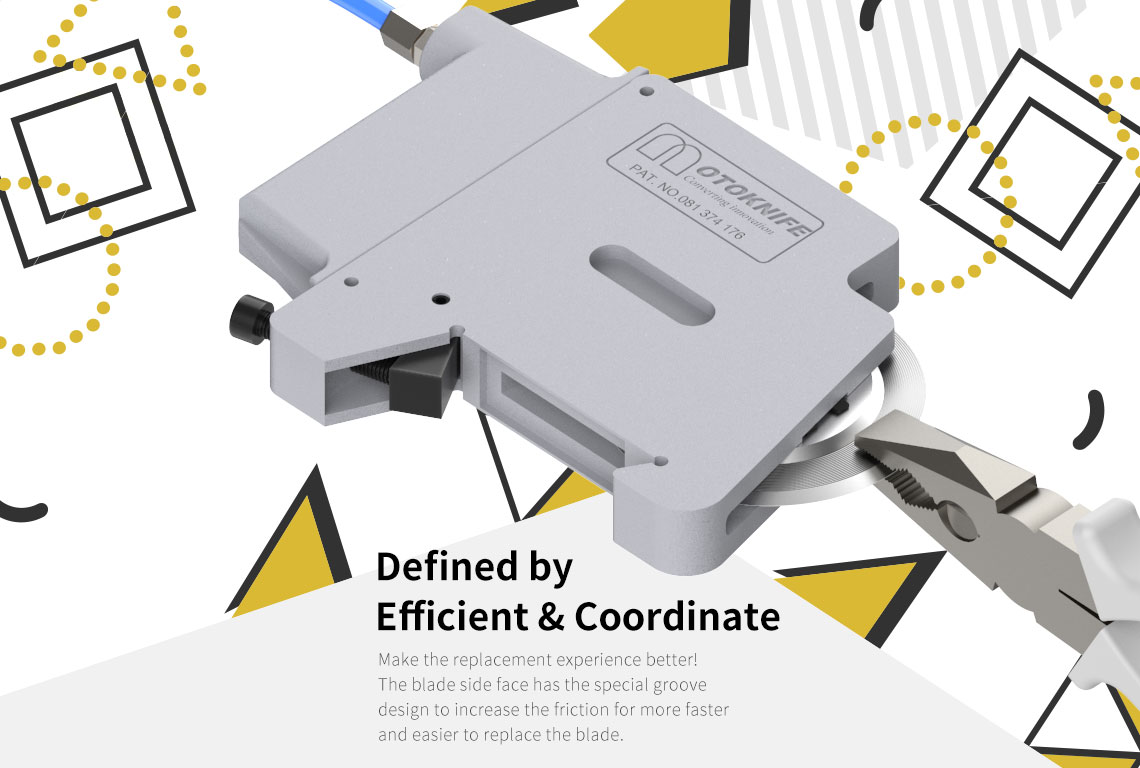

MT-A140 Rugged type pneumatic knife holder

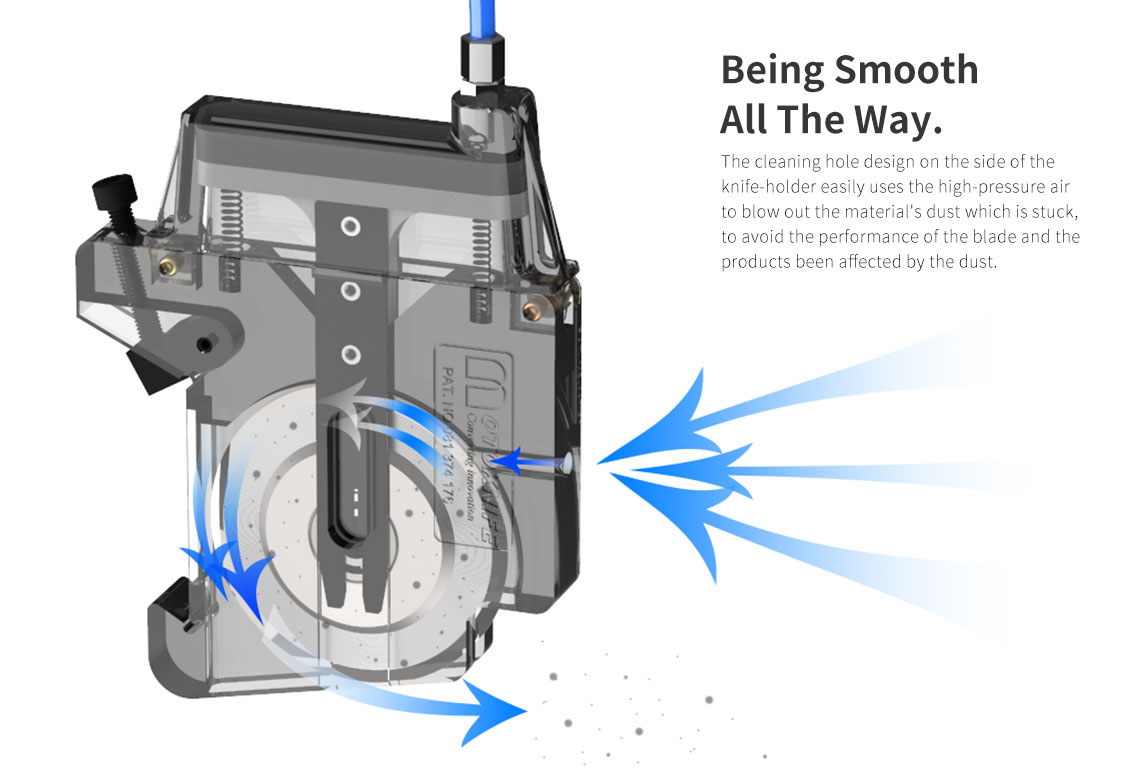

MT-A140 Rugged type pneumatic knife holder

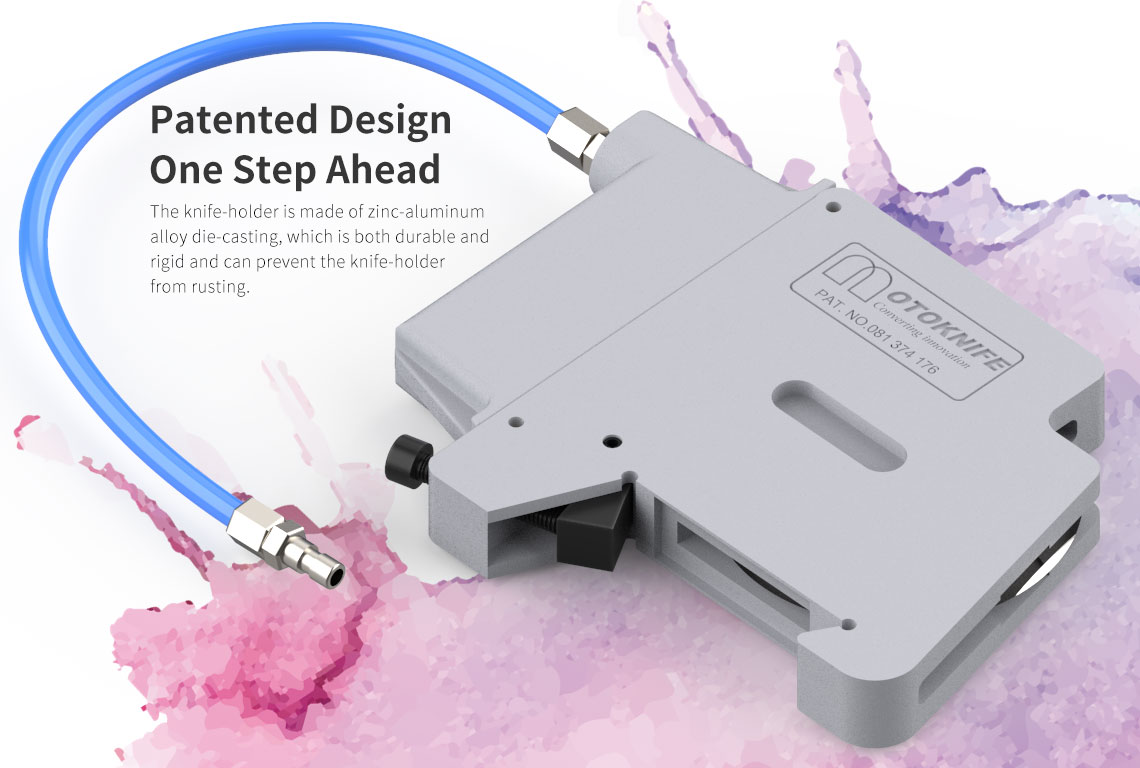

MT-A140 Rugged type pneumatic knife holder

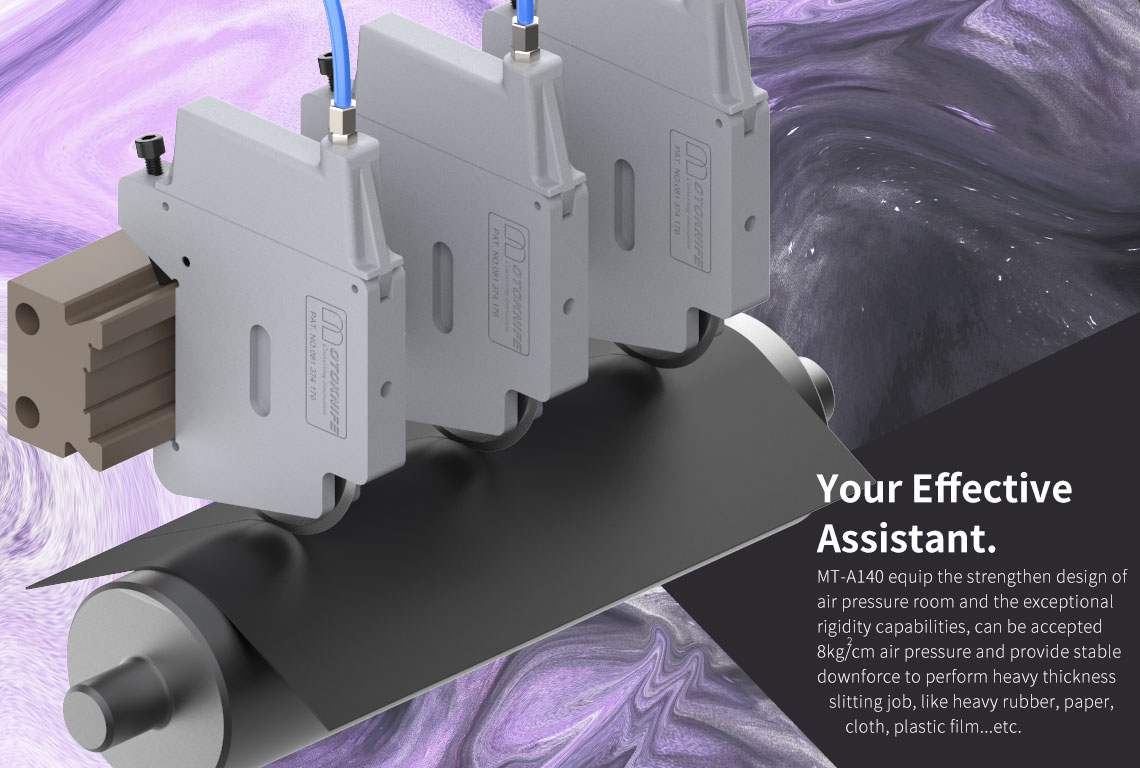

MT-A140 Rugged type pneumatic knife holder

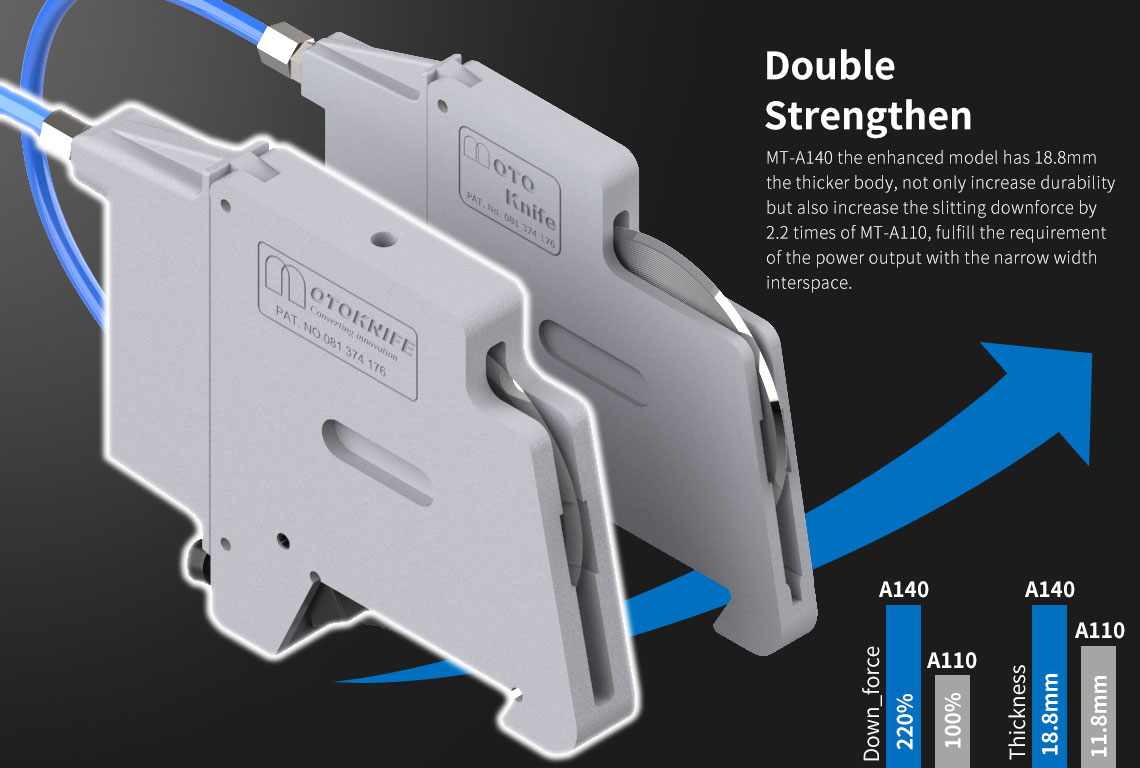

MT-A140 Rugged type pneumatic knife holder

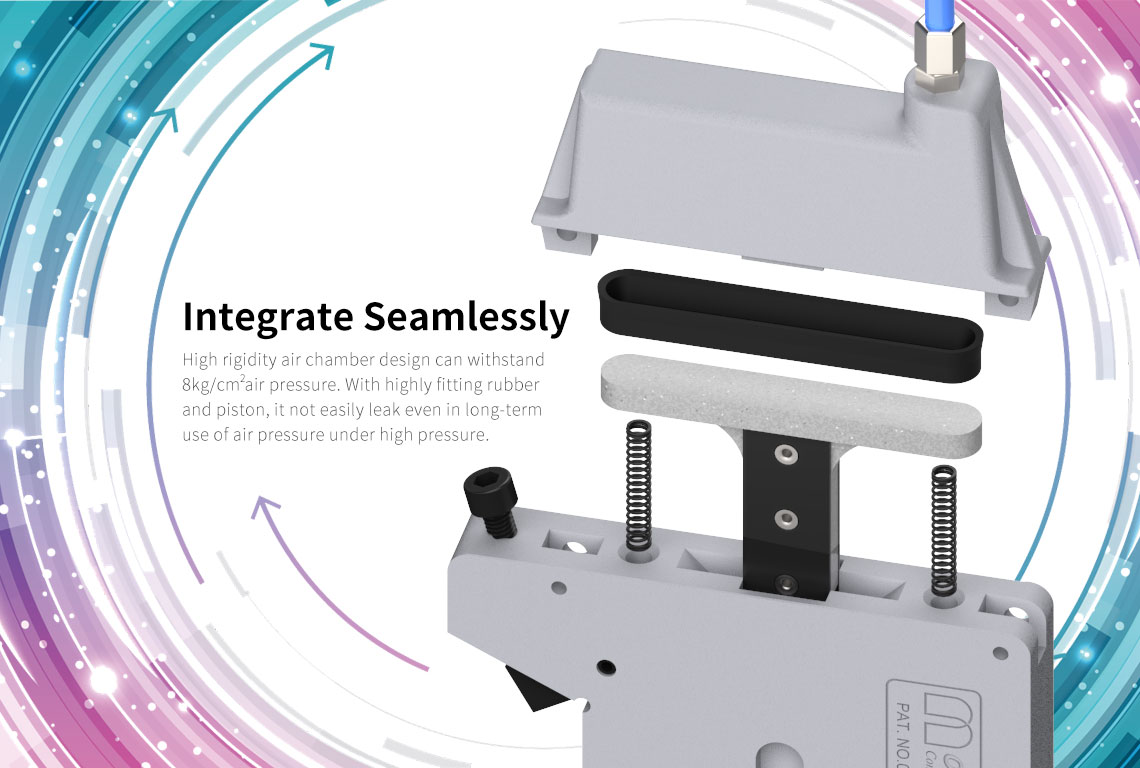

MT-A140 Rugged type pneumatic knife holder

Model                            MT-A140-BSK30

                      MT-A140


Min. slit width          19mm


Max. slit speed         100M/min(1)


Down-stroke             0~15mm


Air Pressure              3~6/kg/cm²


Blade O.D.                  Ø76.2mm


Guide-bar                  GB01/GB02/GB04


Feature                       Rigidity unibody knife-holder

                                         Stable downforce provided

                                         Cost-effective

                                         Screw type fix method


Suitable                      Various Papers >>>      kraft paper, silicone paper, releasing  paper, decoration

                                                                                           wallpaper, masking paper, adhesive paper, thick paper

                                                                                           board, corrugated carton paper, sandpaper.

                                         Various Plastic films >>>      flexible laminated films, soft & rigid PVC films, BOPP,

                                                                                                      PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                        Cloth & fabrics >>>      non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                         cloth, medical cloth, label cloth...etc.

                                                  Foams >>>      PSP foams,PE foams..etc

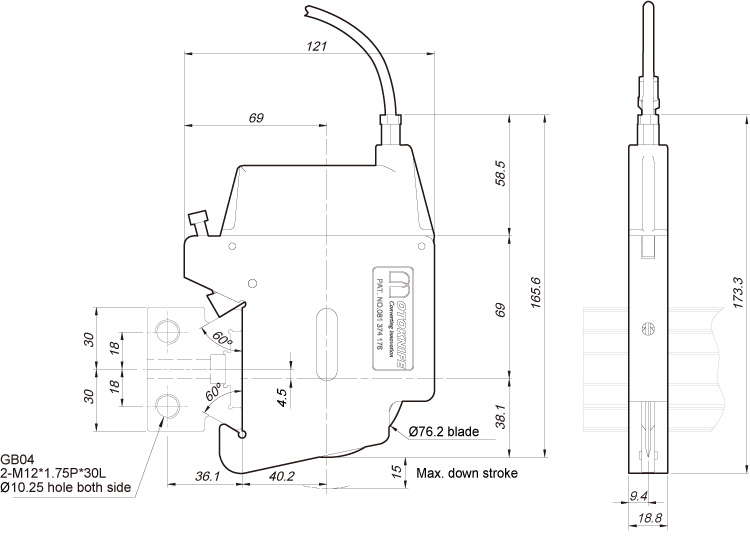

Drawing

MT-A140

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
