Extra Slim Pneumatic Knifeholder

Extra Slim Pneumatic Knifeholder

MT-A130

Introduce

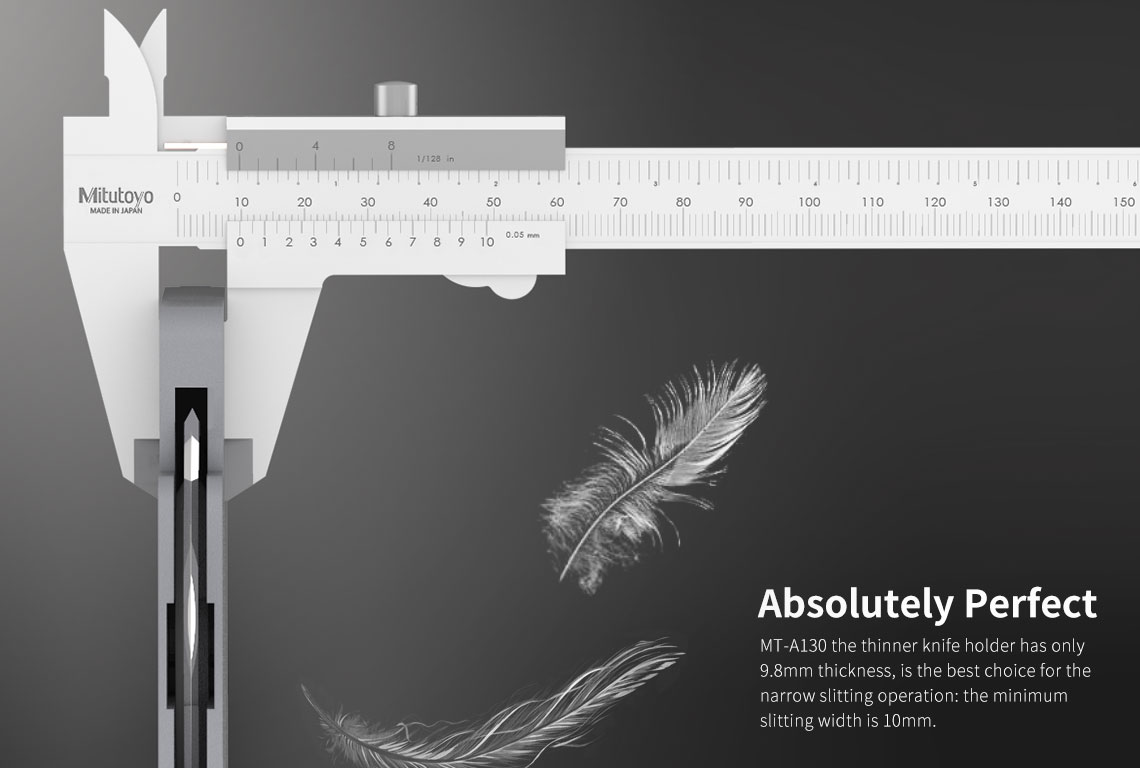

MT‑A130 is engineered for the tightest narrow‑web lines, delivering crush‑cut slits as narrow as 10 mm with a body only 9.8 mm thick. Its one‑piece die‑cast frame provides outstanding rigidity, ensuring consistent down‑force and clean edges without the need for heavy capital investment. Despite its ultra‑compact size, the MT‑A130 offers production‑class accuracy at a remarkably cost‑effective price. It mounts directly to GB02 / GB04 / GB05 guide‑bars. Ideal for slitting light rubber, paper, textiles, and plastic films, the MT‑A130 delivers the reliability and performance demanded by professional converting lines.

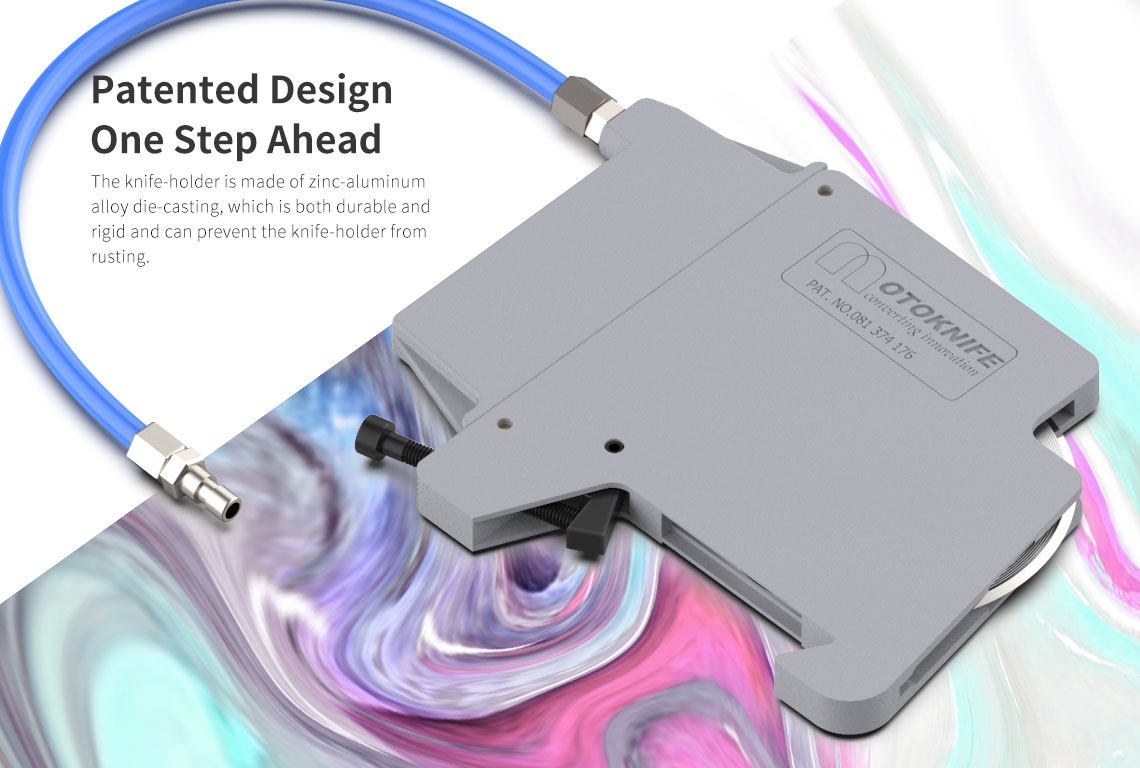

MT-A130 slim type pneumatic knife holder

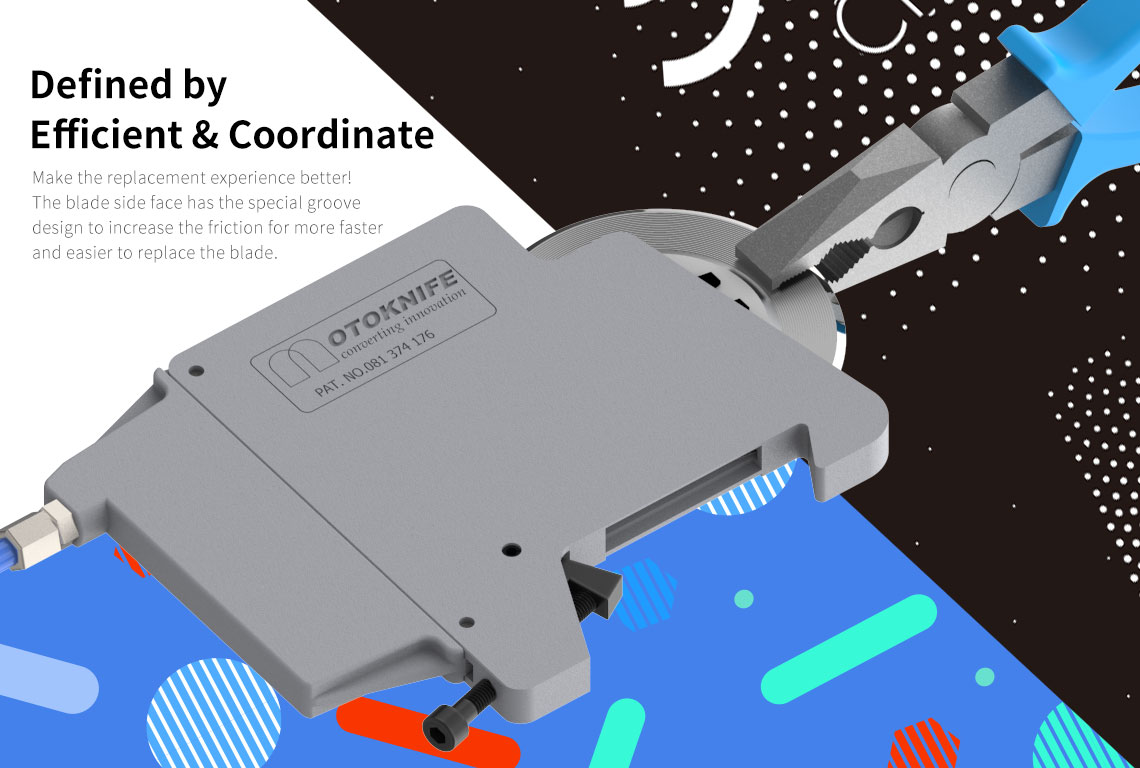

MT-A130 slim type pneumatic knife holder

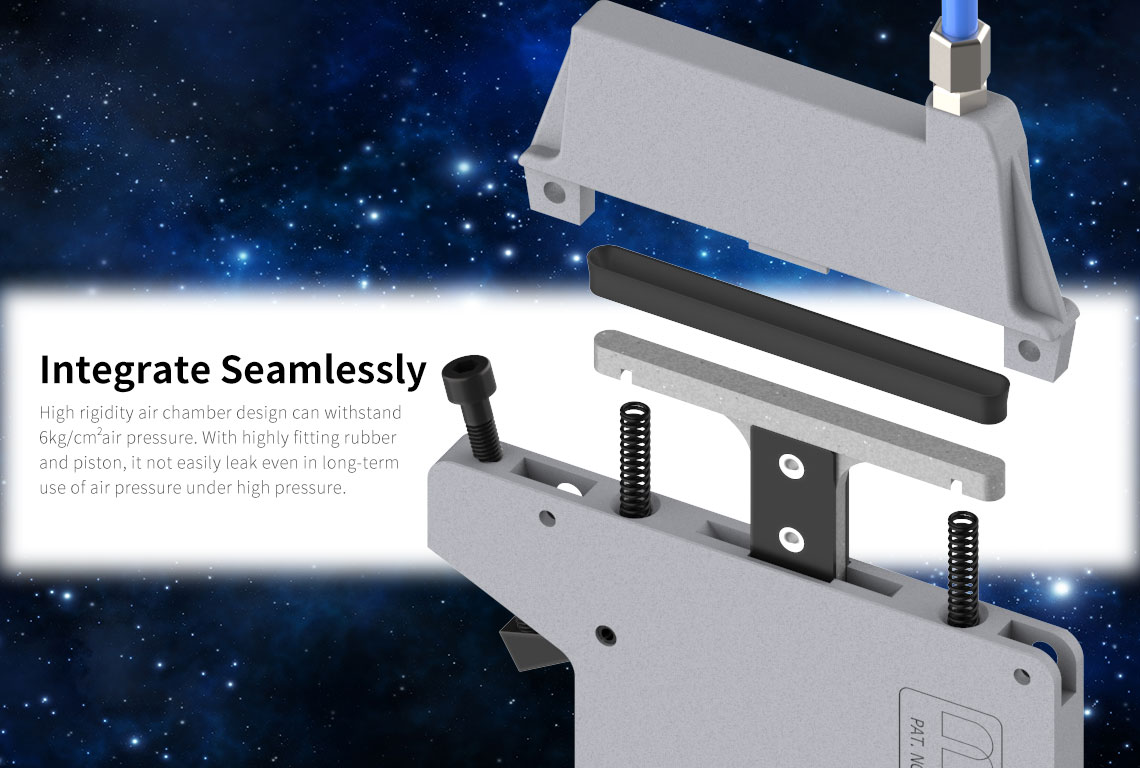

MT-A130 slim type pneumatic knife holder



MT-A130 slim type pneumatic knife holder

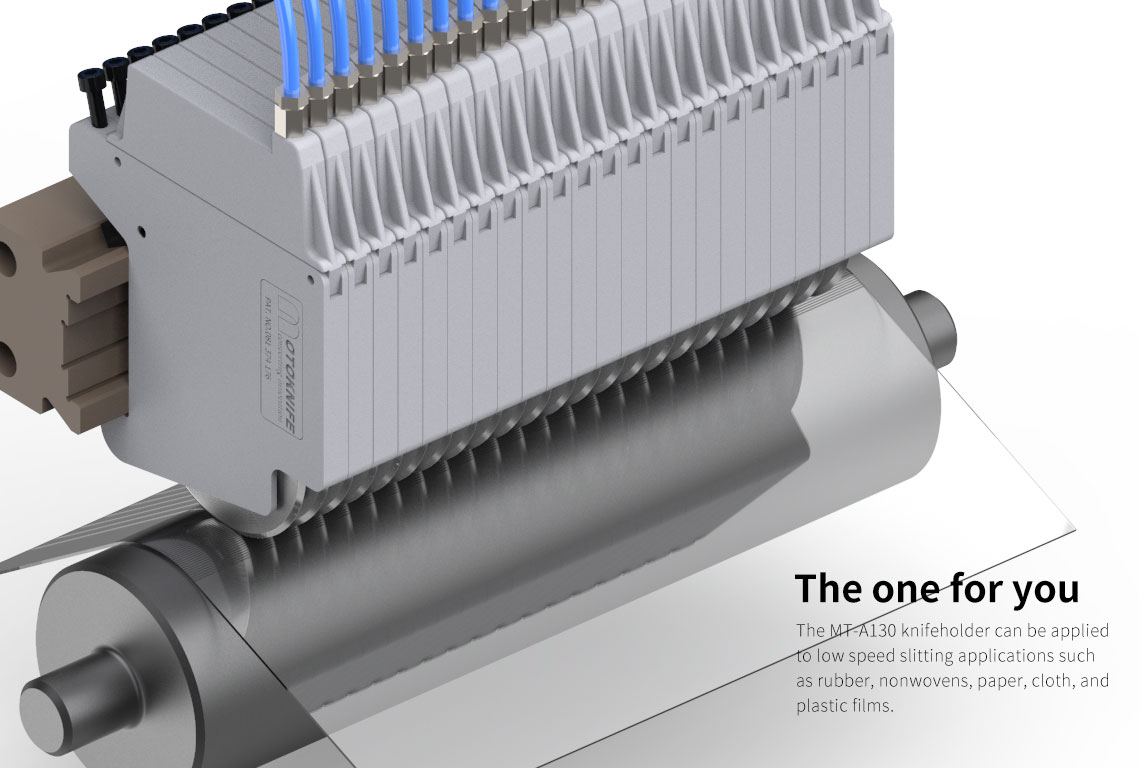

MT-A130 slim type pneumatic knife holder

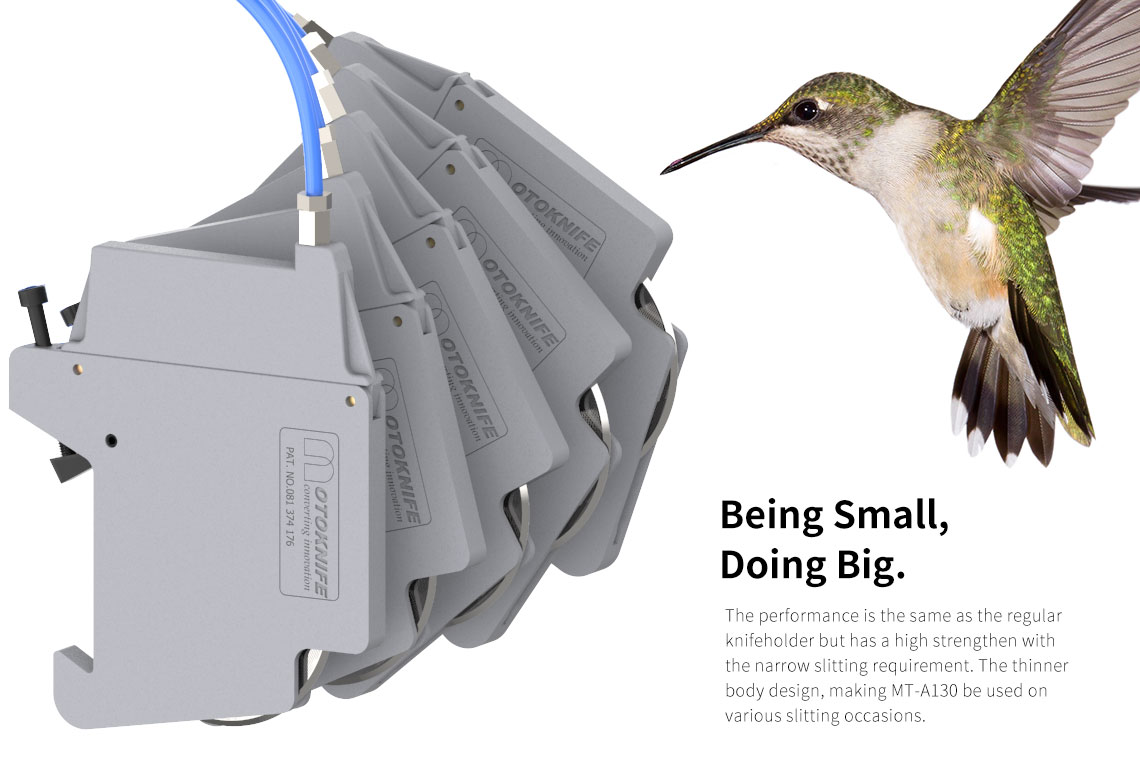

MT-A130 slim type pneumatic knife holder

Model                        MT-A130-BSK30

                             MT-A130


Min. slit width          10mm


Max. slit speed         100M/min(1)


Down-stroke            0~15mm


Air Pressure              3~6/kg/cm²


Blade O.D.                 Ø76.2mm


Guide-bar                  GB01/GB02/GB04


Feature                       Extra slim unibody knife-holder

                                         Cost-effective

                                         Screw type fix method


Suitable                      Various Papers >>>     kraft paper, silicone paper, releasing  paper, decoration

                                                                                          wallpaper, masking paper, adhesive paper, thick paper

                                                                                          board, corrugated carton paper, sandpaper.

                                         Various Plastic films >>>     flexible laminated films, soft & rigid PVC films, BOPP,

                                                                                                     PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                        Cloth & fabrics >>>     non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                        cloth, medical cloth, label cloth...etc.

                                                  Foams >>>     PSP foams,PE foams..etc

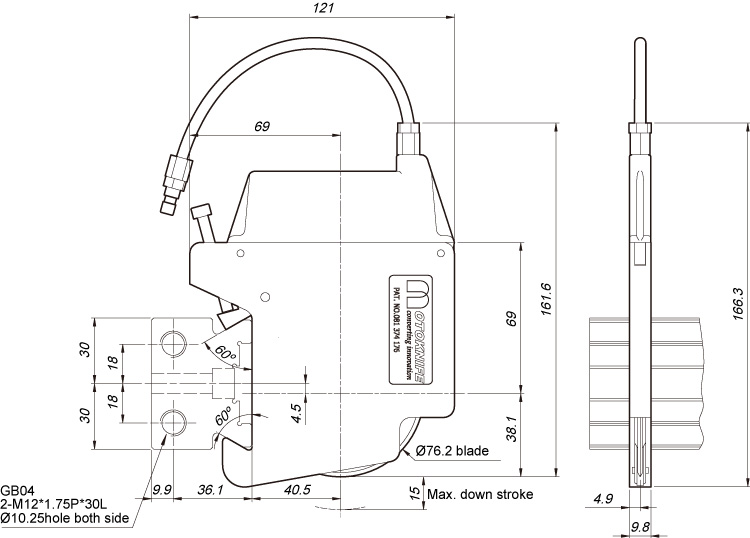

Drawing

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
