Standard Pneumatic Knifeholder

Standard Pneumatic Knifeholder

MT-A110

Introduce

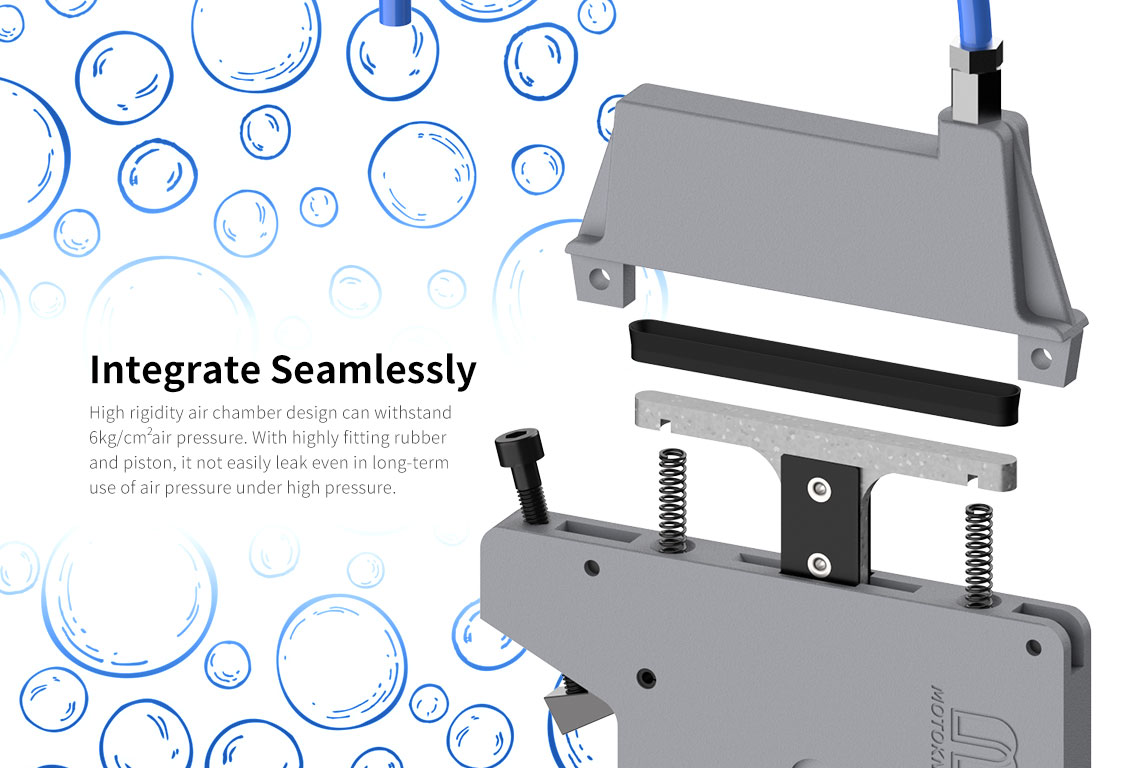

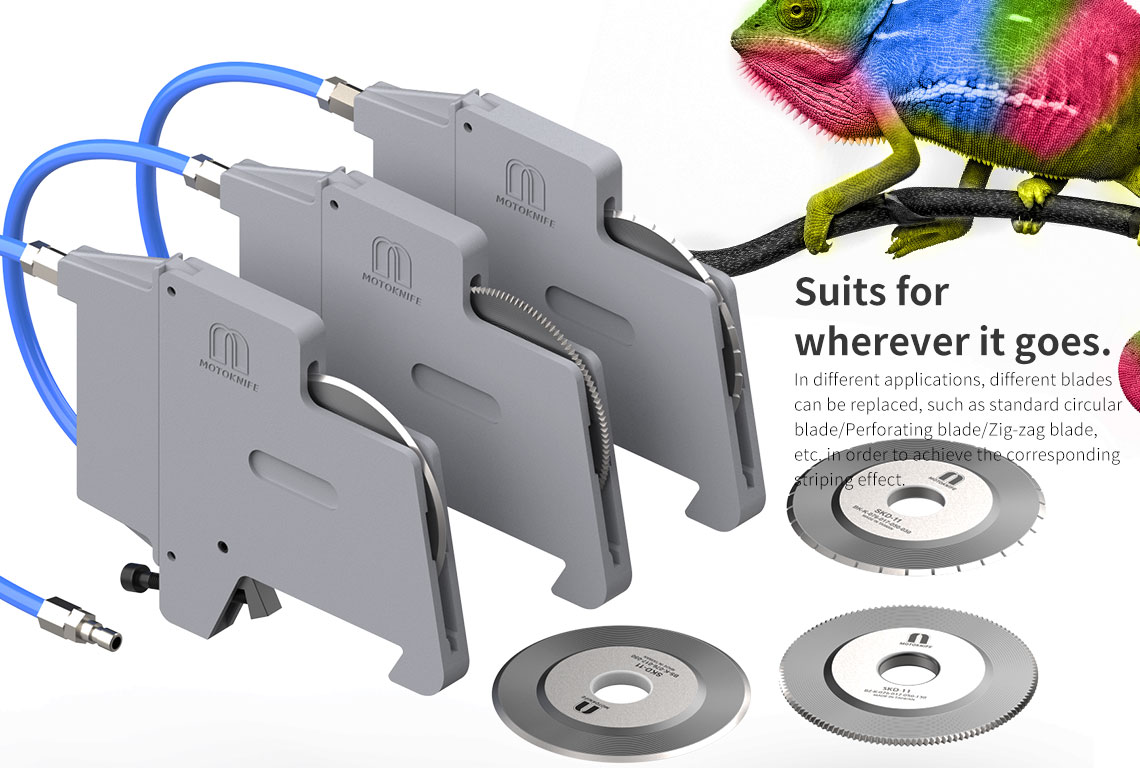

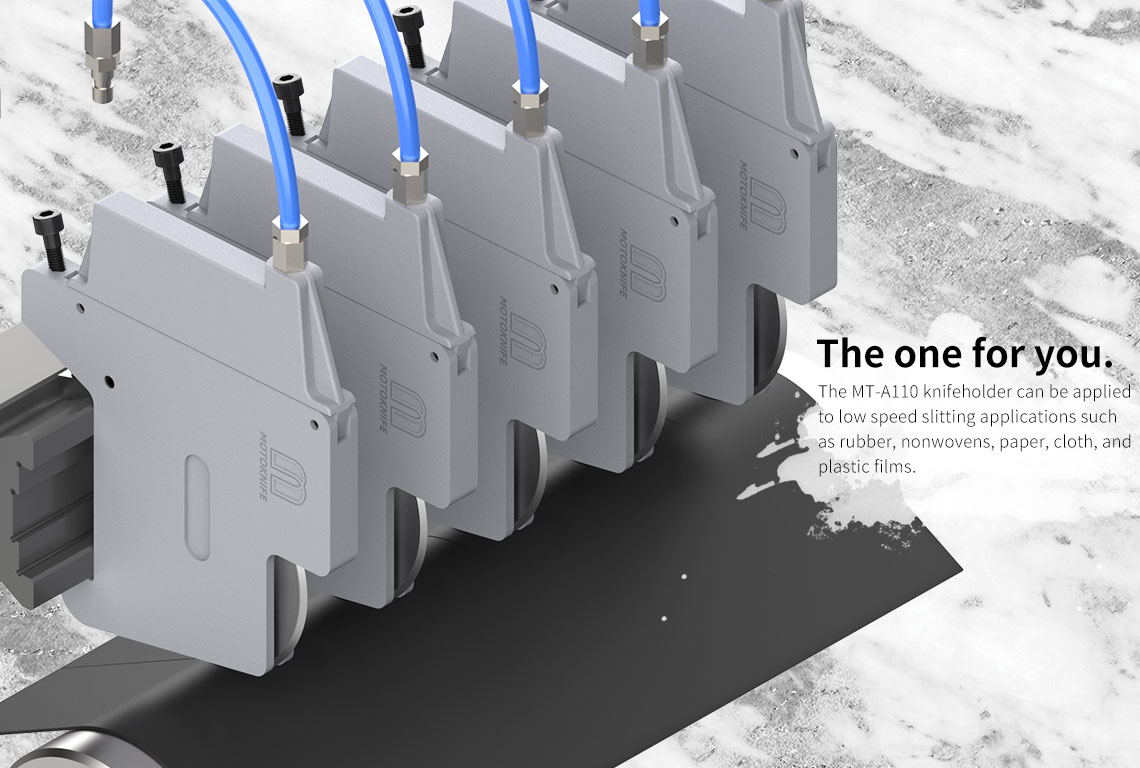

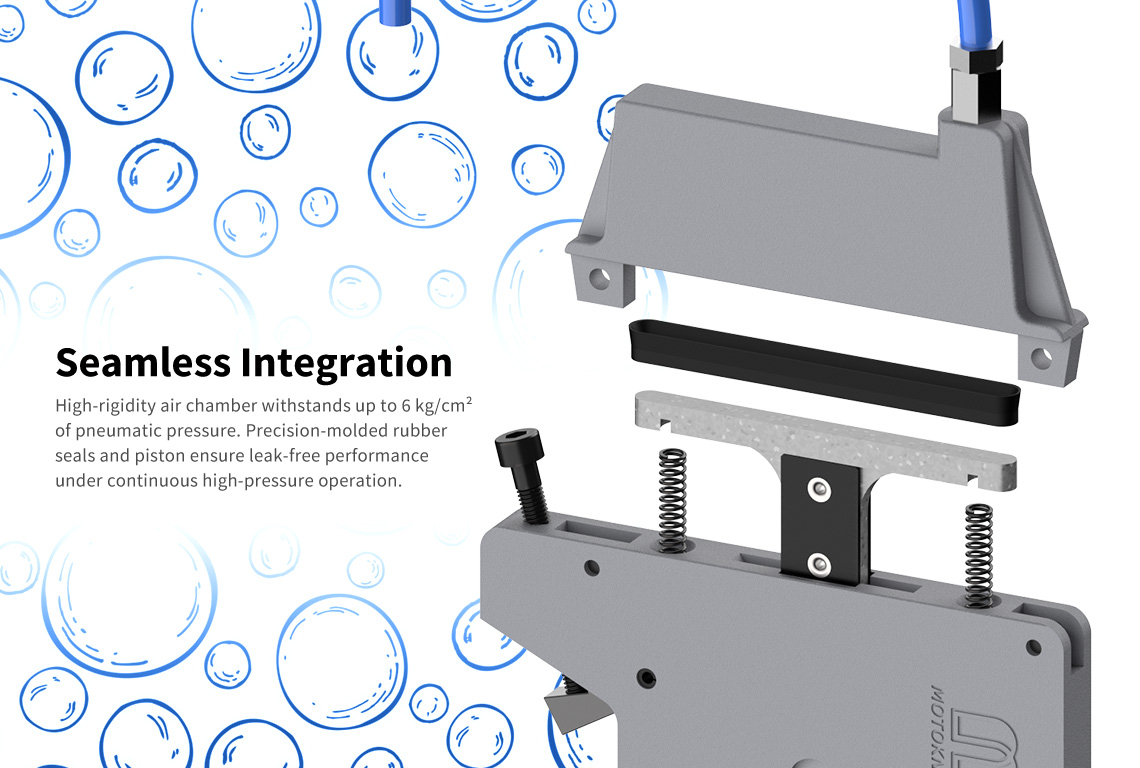

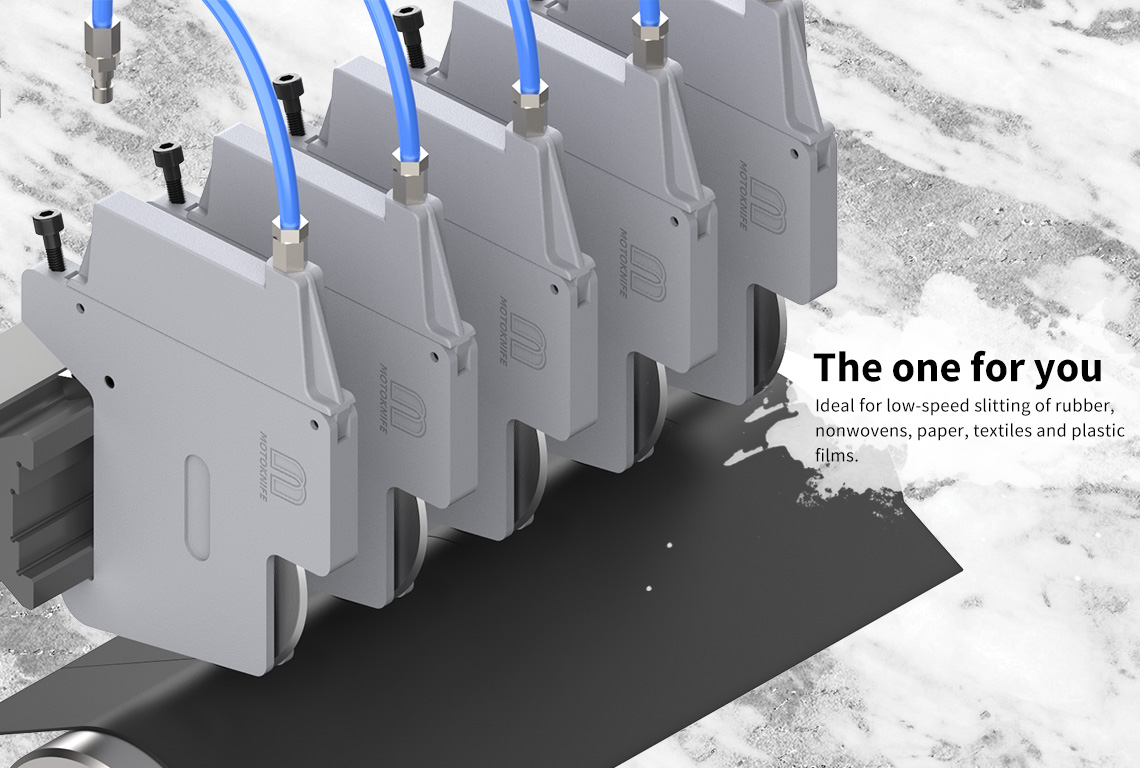

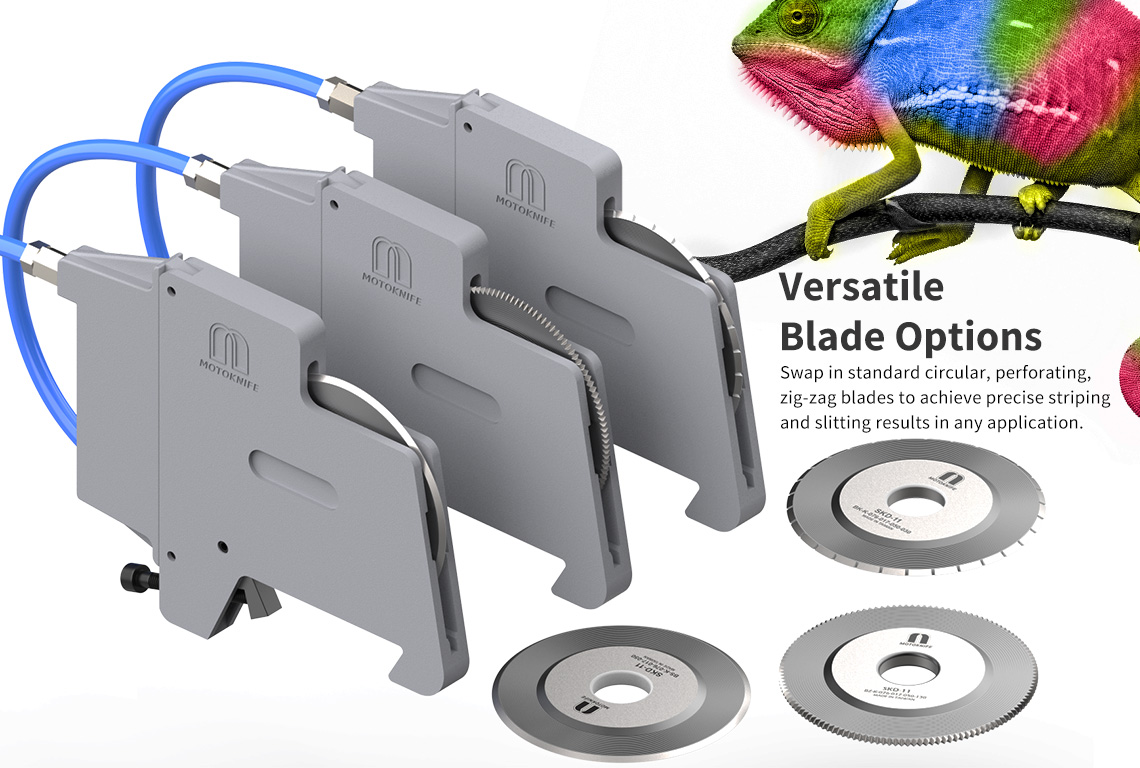

MT-A110 is one of the most versatile and flexible crush knife-holder for crush slitting. It works against the hardness anvil roller. Modular designed knife-holder has advantage of excellent rigidity which can accept 6kg/ cm² air pressure and provide stable down force to perform various material slitting job. It can replace score blade/zig zag blade/ k dash blade/wave blade for different slitting application. MT-A110 is using screw method to fix on guide-bar which is compatible with guide-bar GB01/GB02/GB04. Because of its versatility, MT-A110 is widely used in light rubber, paper, cloth, plastic film...etc.

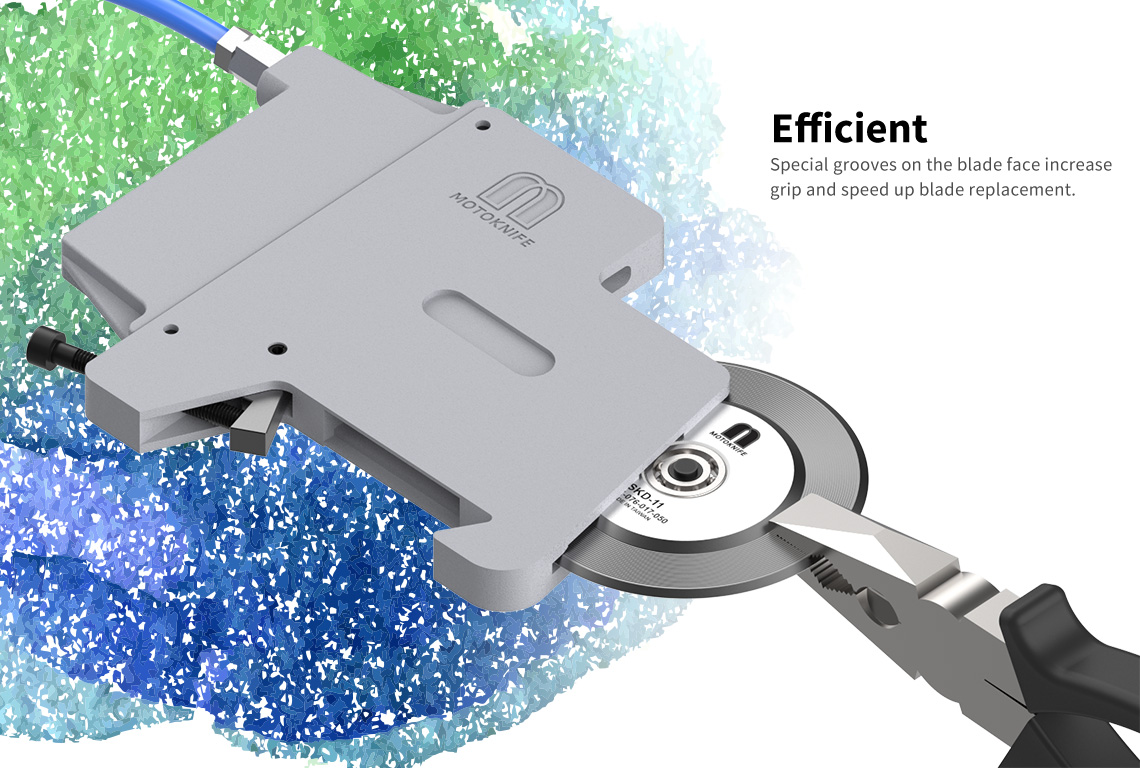

MT-A110 Pneumatic Knife holder



MT-A110 Pneumatic Knife holder



MT-A110 Pneumatic Knife holder



MT-A110 Pneumatic Knife holder



MT-A110 Pneumatic Knife holder



MT-A110 Pneumatic Knife holder





Model                        MT-A110-BSK30

                             MT-A110


Min. slit width          12mm


Max. slit speed         100M/min(1)


Down-stroke             0~15mm


Air Pressure              3~6/kg/cm²


Blade O.D.                  Ø76.2mm


Guide-bar                  GB01/GB02/GB04


Feature                       Unibody knife-holder

                                         Cost-effective

                                         Screw type fix method


Suitable                      Various Papers >>>     kraft paper, silicone paper, releasing  paper, decoration

                                                                                          wallpaper, masking paper, adhesive paper, thick paper

                                                                                          board, corrugated carton paper, sandpaper.

                                        Various Plastic films >>>     flexible laminated films, soft & rigid PVC films, BOPP,

                                                                                                    PET, PE, PS, LDPE, PLA, SBS, various adhesive tape.

                                       Cloth & fabrics >>>     non-woven cloth, synthetic leather, natural cotton, mesh

                                                                                        cloth, medical cloth, label cloth...etc.

                                                 Foams >>>     PSP foams,PE foams..etc


Drawing

MT-A110

(1) The maximum slitting speed is according to the actual materials, thickness and slitting results.
